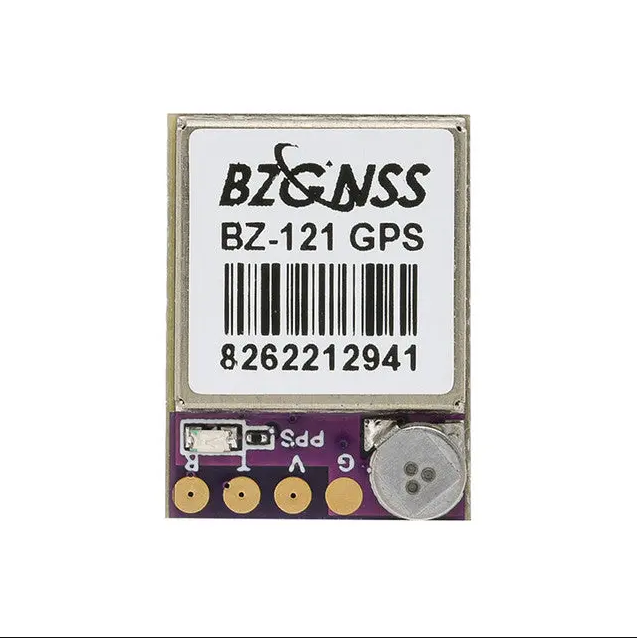

BZGNSS BZ-121 Micro FPV GPS Module – Multi-GNSS for Betaflight

Original price was: $26.80.Current price is: $22.80.

Customer Reviews

★★★★★
★★★★★
5.0 out of 5
33 global ratings
MODEL:
  • Multi-GNSS Support: Supports GPS, GLONASS, BDS, and Galileo for ultra-fast satellite lock.
  • Ultralight Design: Tiny 12x16mm footprint weighing only 2.4g, perfect for micro builds.
  • High-Speed Refresh: 10Hz refresh rate provides real-time position data for GPS Rescue.
  • Wide Compatibility: Works seamlessly with Betaflight, INAV, and standard flight controllers.
  • Low Power Usage: Energy-efficient design with 3.3V-5V input for longer flight times.
  • High Precision: Built-in ceramic antenna ensures stable signal in diverse terrains.

Shop BZGNSS BZ-121, the ultra-light micro GPS for FPV drones. Features multi-GNSS support, 10Hz refresh rate, and fast satellite lock. Buy at WYECS!

Enhance your long-range flight safety with the BZGNSS GPS Module, the ultimate precision tool for modern pilots. This BZ-121 FPV GPS is engineered to provide lightning-fast satellite acquisition, ensuring you have a reliable home point before you even take off.

As a dedicated Micro GPS for FPV, it weighs a mere 2.4g, making it ideal for sub-250g drones and toothpicks where every milligram counts. This Multisystem GNSS Module supports GPS, GLONASS, and Galileo simultaneously, offering superior accuracy even in challenging environments like deep valleys or urban areas. Whether you are configuring it as a Drone GPS Betaflight setup for emergency GPS Rescue or a professional INAV navigation build, the BZ-121 delivers a high 10Hz refresh rate for smooth, lag-free positioning data. Compact, reliable, and powerful, it is the essential upgrade for any serious FPV enthusiast looking for peace of mind.

Note:
  • Due to GPS chip is a new generation chip, flight control needs firmware 4.29 and above, the firmware below 4.29 uses NMEA protocol.
Package Included:
  • 1x BZGNSS BZ-121 GPS Module

BZ-121 Specifications:

  • Chip:u-blox M10050(Ten Generation Chip)
  • Pattern: GPS, GLONASS,BDS, GALILEO,SBAS,QZSS(Default GPS+GLONASS+BDS joint positioning)
  • FLASH: Supported
  • Frequency:GPS L1,GLONASS L1,BDS L1,GALILEO L1,SBAS L1,QZSS L1
  • Power:5V
  • Size:12x16x4.5mm
  • Interface: PCB Pad
  • Weight:2.2g

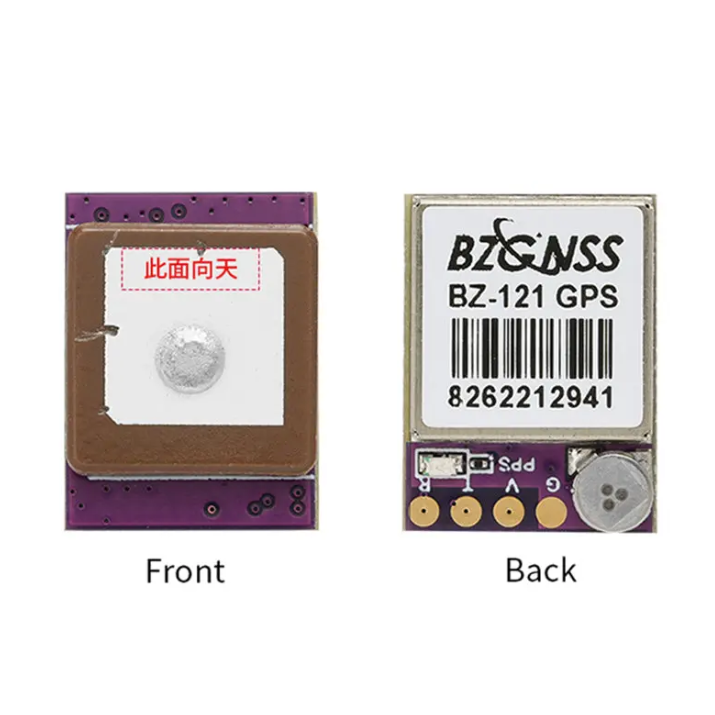

  • Antenna: Ultrathin Ceramic Antenna (oil spraying process, prevent scratching and oxidation)
  • Receiving channels:72 search channels
  • Baud rate:115200dps
  • Output Protocol: NMEA / UBLOX (Dual protocol)
  • Output Frequency:1Hz-10Hz. Default 10Hz
  • Speed accuracy:0.05m/s
  • Horizontal Positioning Accuracy: 2D ACC 1.5m(open air)
  • Receiving Sensitivity:Trace-162dBm / Capture -160dBm
  • Dynamic characteristics:
  • Altitude:50000m
  • Speed:500m/s
  • Acceleration:4G
  • Operating temperature:-40°C~+85°C
  • Storage temperature:-40°C~+105°C
  • Indicator light: PPS lamp – the lamp does not work when it is not positioned, and the red lamp flashes after 3D positioning
