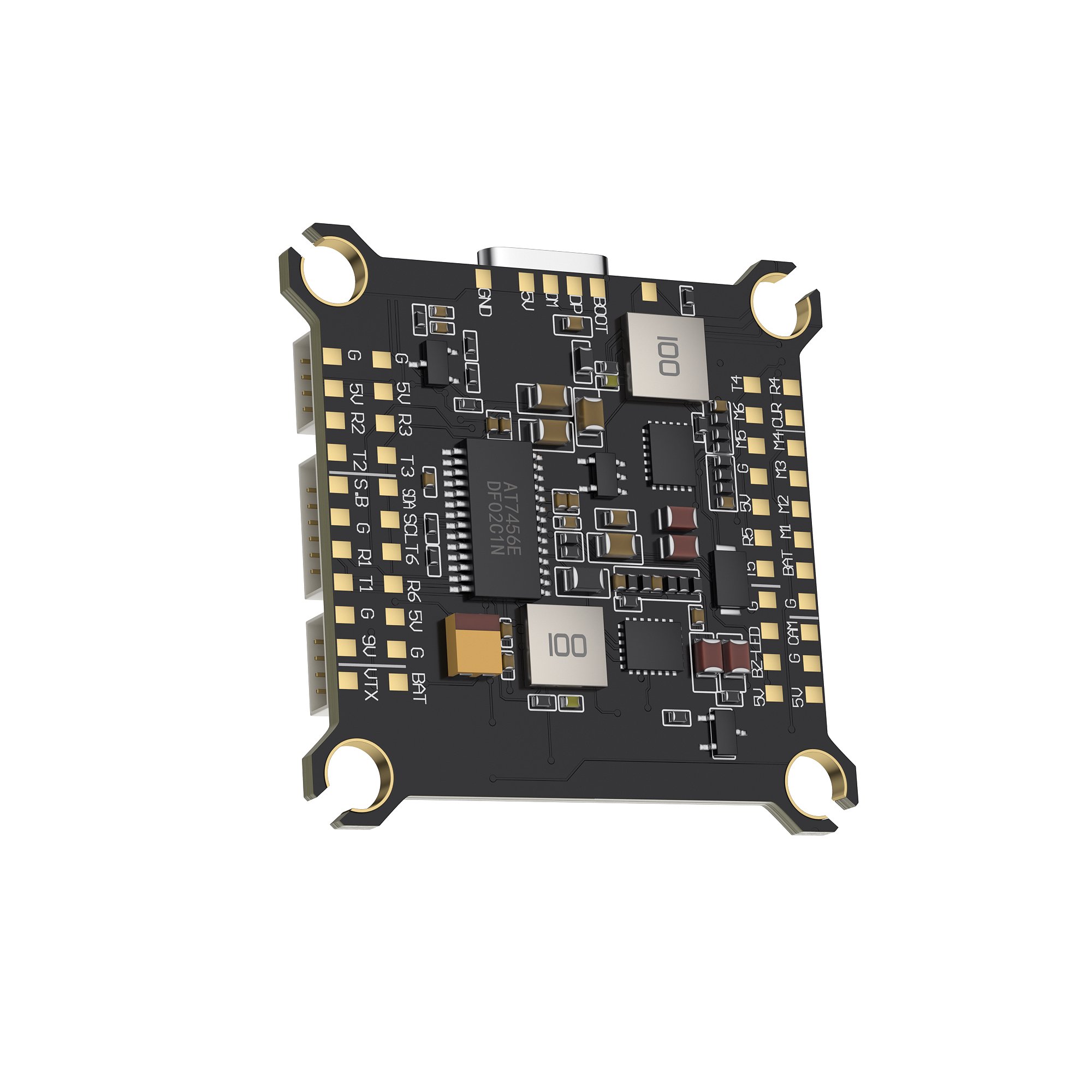

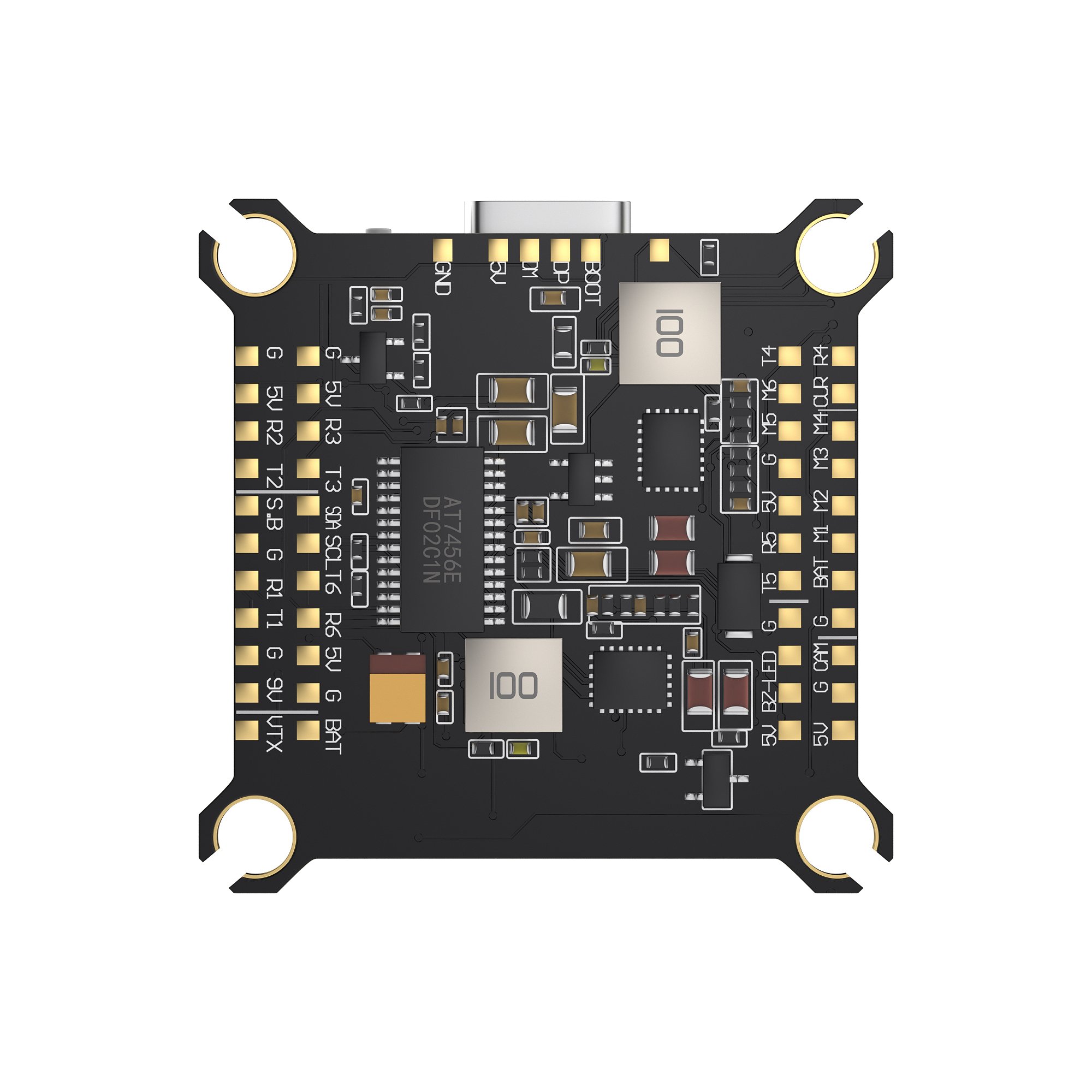

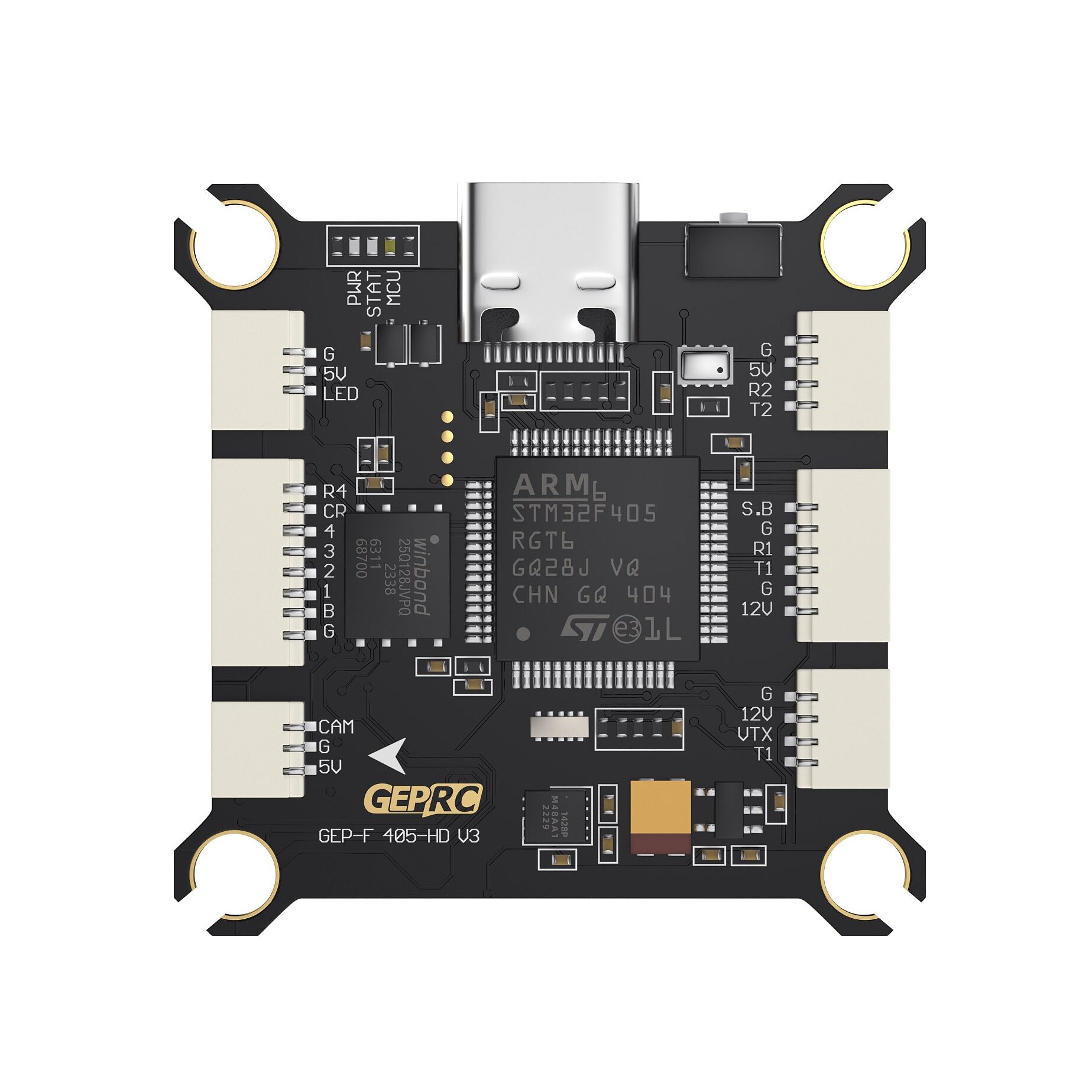

GEPRC GEP-F405-HD V3 Flight Controller – DJI Digital HD Ready

Original price was: $56.99.Current price is: $48.80.

Customer Reviews

★★★★★
★★★★★
4.9 out of 5
57 global ratings
MODEL:
F405-HD V3 Flight Controller
  • High-Speed MCU: STM32F405 MCU provides powerful processing for smooth flight.
  • DJI Plug-and-Play: Dedicated 9V 2A BEC and port for DJI O3 and Air Unit.
  • Low Noise Gyro: High-precision ICM-42688-P gyro ensures responsive control.
  • Altitude Precision: Built-in BMP280 barometer for accurate altitude data logging.
  • Data Logging: Onboard 16MB Blackbox storage for easy flight tuning.
  • Clean Mounting: Standard 30.5×30.5mm pattern with vibration-damping grommets.
SKU GP107136 Category Tags , , , , , , , , , , , , Brand:

Shop the GEPRC GEP-F405-HD V3. Optimized for DJI HD systems with dual BECs, F405 MCU, and 30.5x30.5 mounting. Reliable power for FPV drones at WYECS.

The GEPRC F405 Flight Controller series has been a staple for reliable builds, and the GEP-F405-HD V3 takes that legacy even further. This 30.5x30.5 Flight Controller is engineered to be the heart of your next high-performance quad, balancing high-end features with exceptional value.

Designed specifically as a premium HD FPV Flight Controller, it features a robust dual BEC system (5V 2A and 9V 2A) to provide clean power to both your flight electronics and digital video transmitters. The F405 FC DJI Support ensures a hassle-free, solder-free connection to the DJI O3, Air Unit, or Vista systems, making your build cleaner and faster. Whether you are racing through gates or capturing cinematic footage, the GEP-F405-HD V3 delivers the stability and precision that modern pilots demand.

Features

  1. Use mainstream STM32F405 chip
  2. Equipped with the latest 42688-P gyroscope
  3. 16M Blackbox storage
  4. 5V@3A+12V@2.5A dual independent BEC
  5. Integrated LC filter
  6. Upgrade type-C USB interface
  7. Directly plugged into the DJI Air Unit
  8. Simple and reasonable installation method, the shock absorber can make the gyroscope work very stably
  9. Integrated barometer

Specifications

  • MCU: STM32F405
  • IMU: ICM42688-P(SPI)
  • Air Unit Connection: Direct plugging into DJI Air Unit
  • Black Box: 16M onboard
  • Barometer: Support
  • Motor outputs: M1-M6
  • USB Interface: Type-C
  • OSD: Betaflight OSD w/ AT7456E chip
  • BEC: 5V@3A,12V@2.5A dual BEC
  • Firmware Target: GEPRCF405
  • Mounting: 30.5×30.5mm，φ4mm hole becomes φ3mm after using a silicone shock-absorbing circle
  • Input Voltage: 3-6S LiPo
  • UART: 6 UARTs
  • Power Filter: Integrated LC filter
  • Weight: 7.3g

Includes

1 x Flight Controller

1 x DJI Air Unit Adapter Cable

1 x Flight Controller Adapter Cable

4 x Nylon nuts

4 x Silicone grommets

2 x sh1.0 4-pin ribbon cable

1 x Camera connection cable

SUPPORT

Q: The SpeedyBee App cannot find the flight controller via Bluetooth. What should I do?+
First, power the FC via a LiPo battery, as USB power alone may not support the Bluetooth module. Check if the blue LED on the FC is blinking. Ensure your phone’s Bluetooth and Location services are turned on, and that...more
View Full Article: Details >
Q: My DJI O3 Air Unit has no OSD, how can I fix it?+
Ensure the 6-pin SH1.0 cable is securely connected to the dedicated HD port. In Betaflight “Ports” tab, enable “Configuration/MSP” on UART1 (or the designated port). Also, make sure “Canvas Mode” is enabled in the Betaflight CLI by typing: set osd_displayport_device...more
View Full Article: Details >
