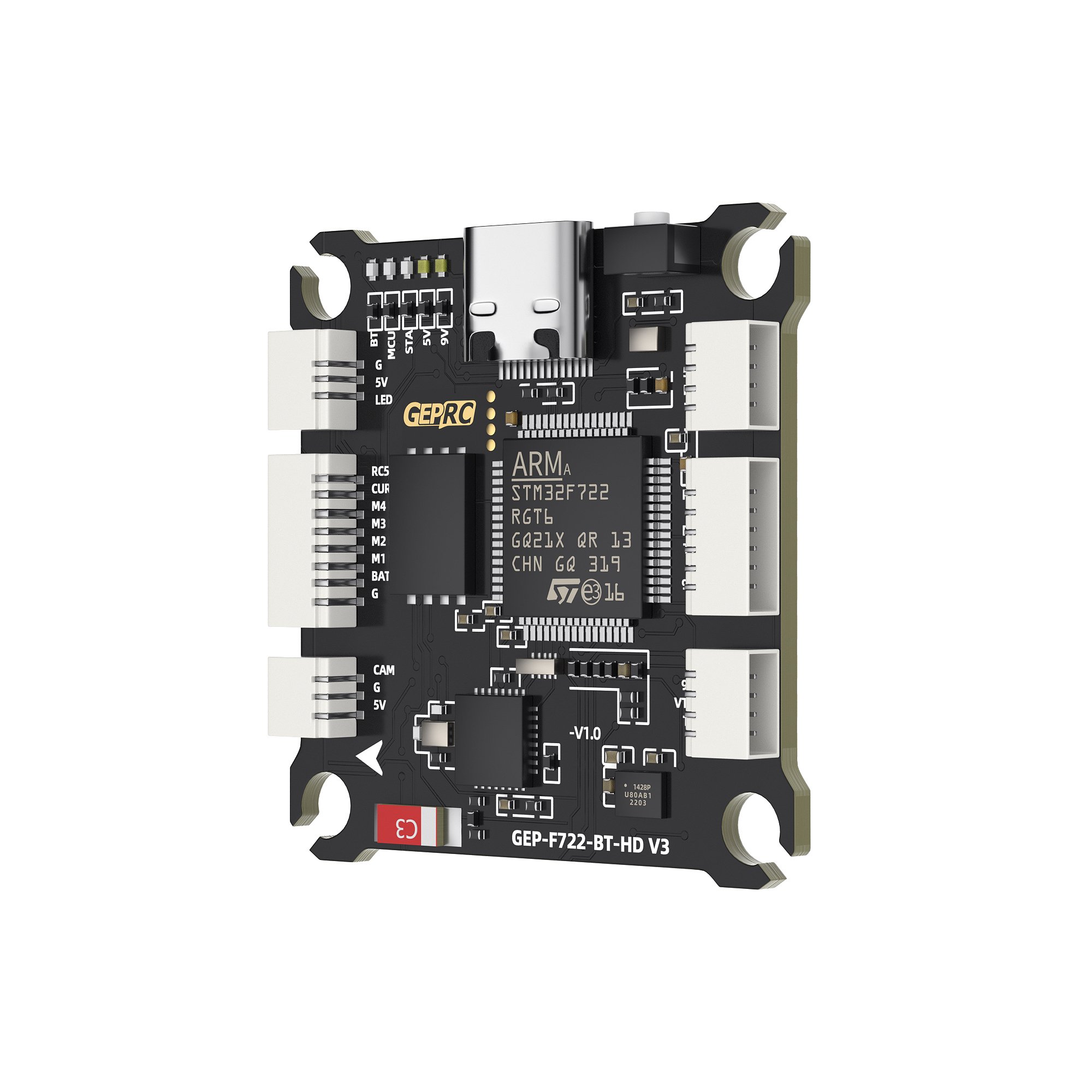

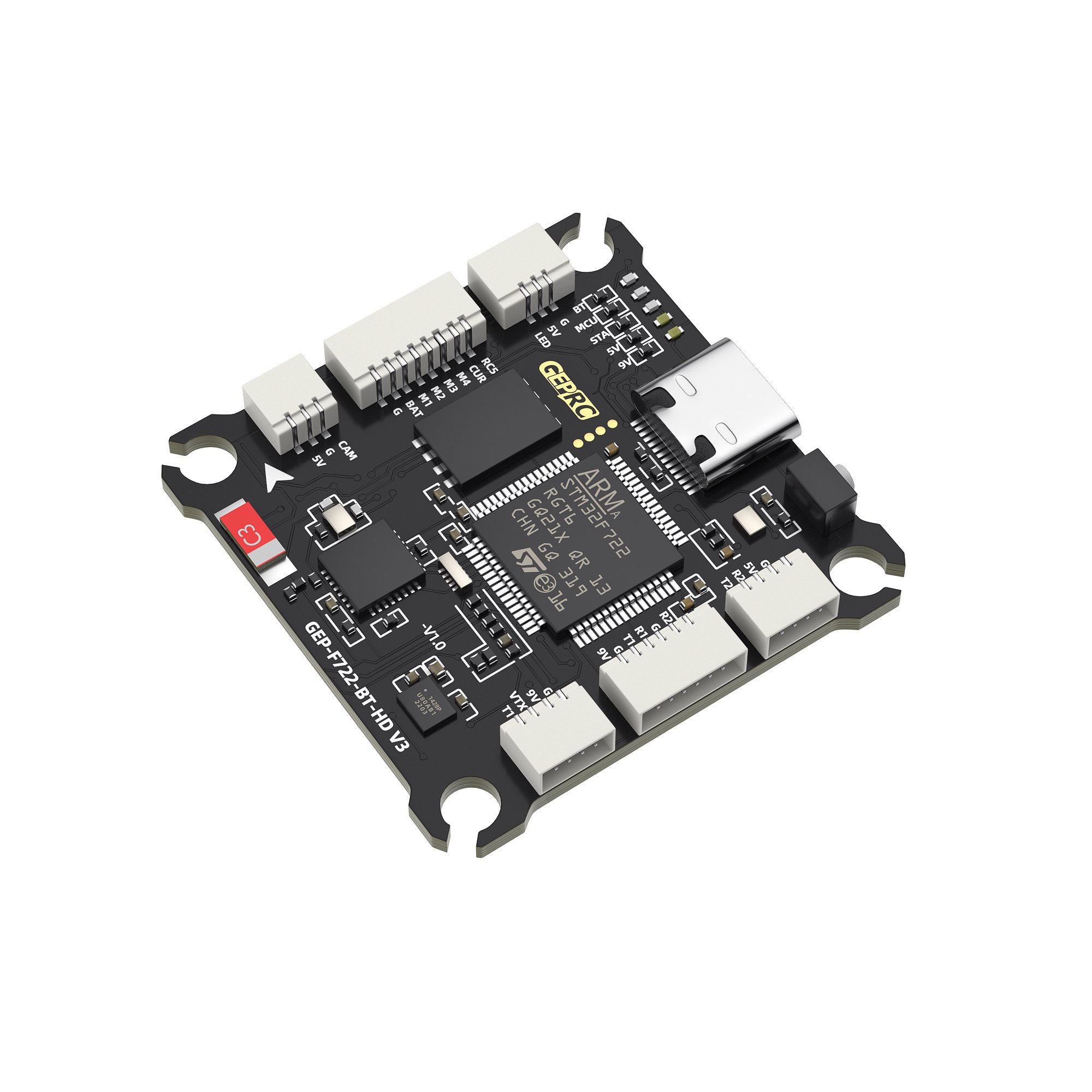

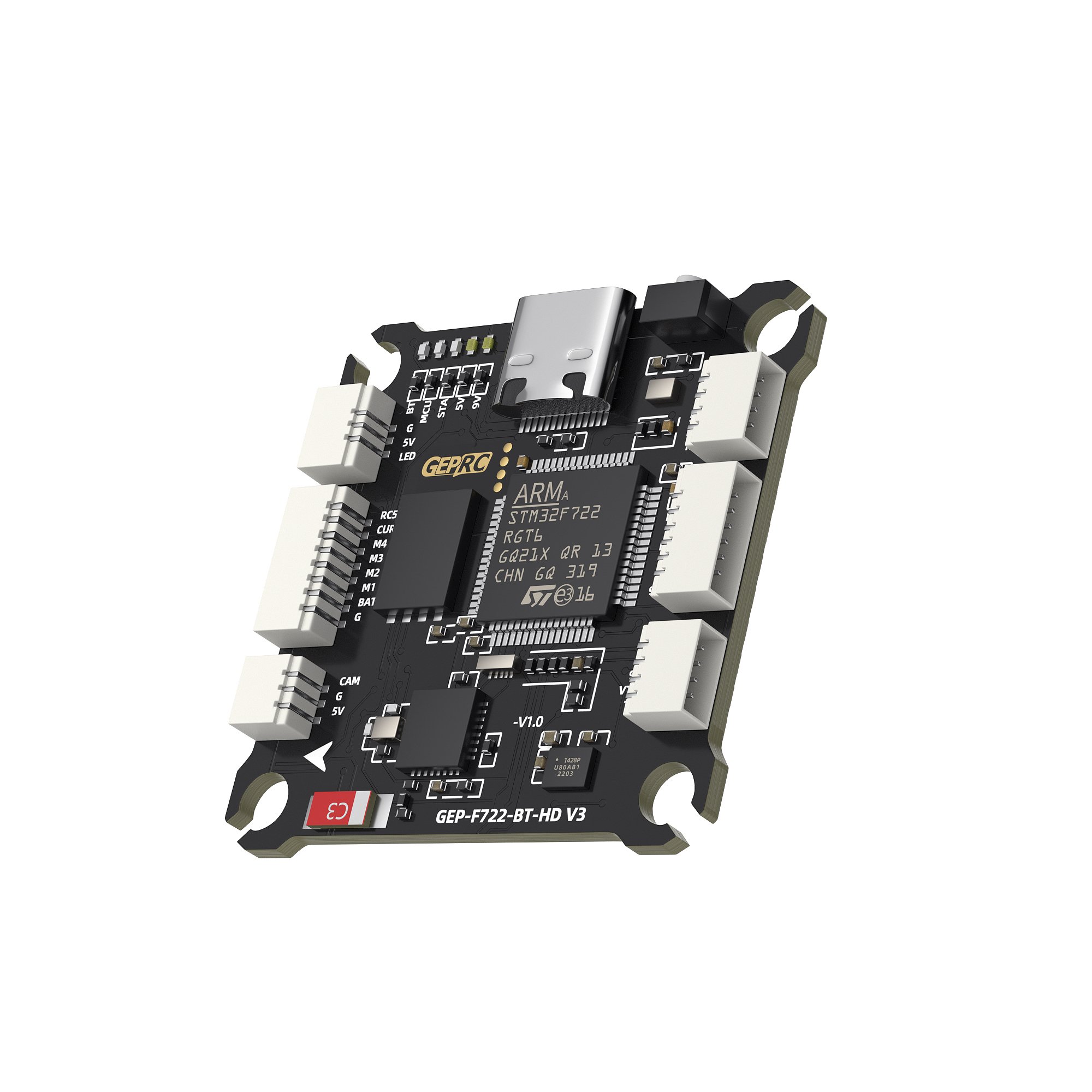

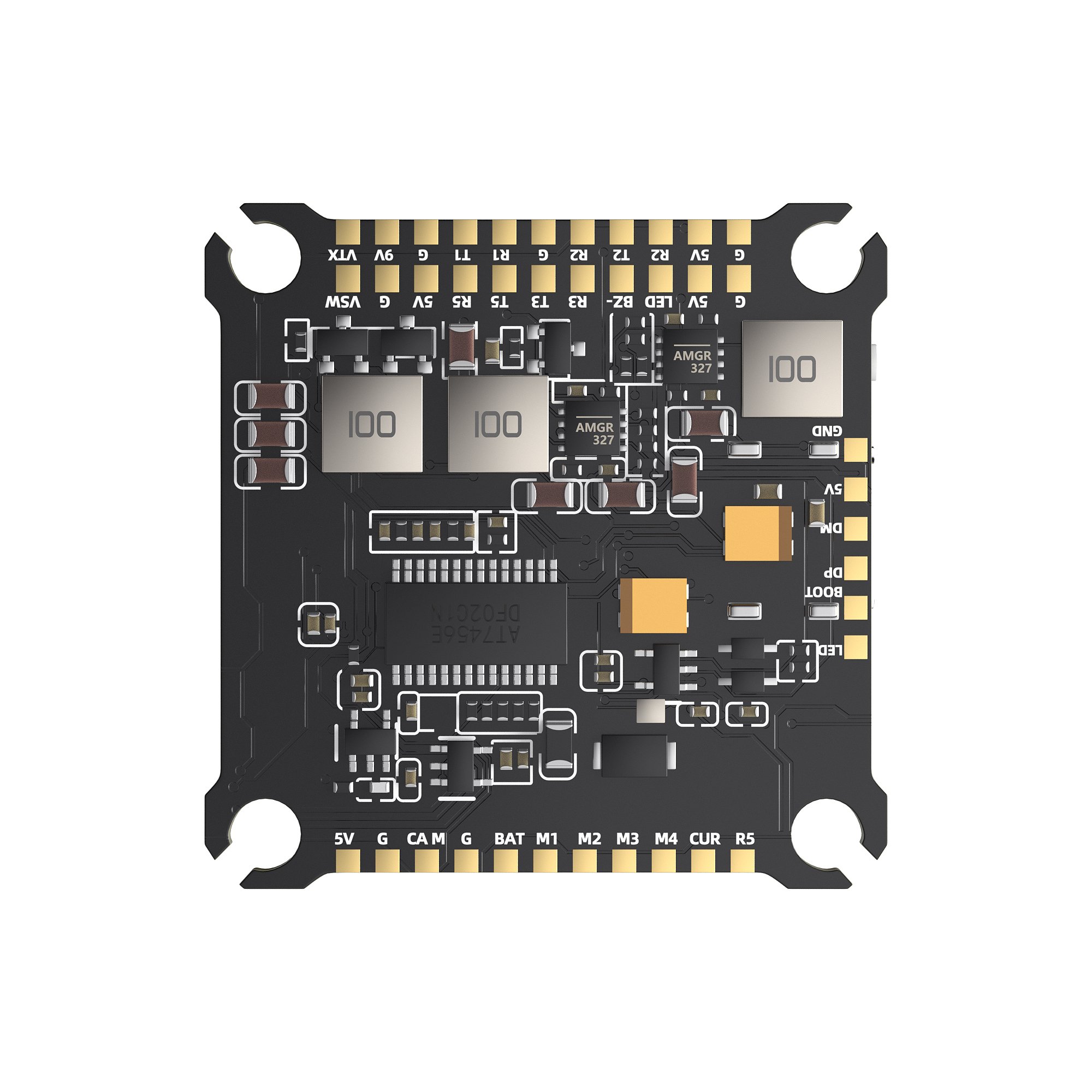

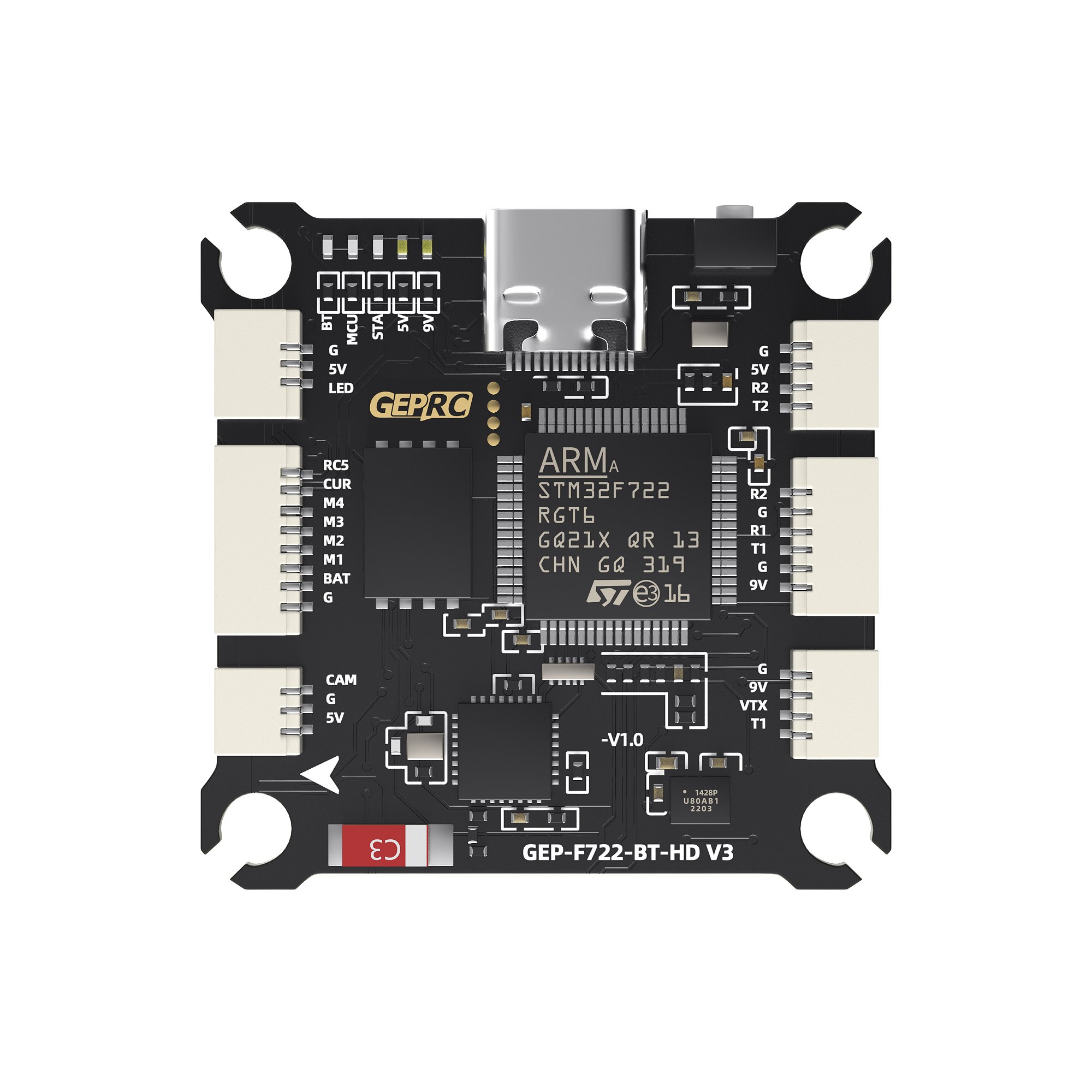

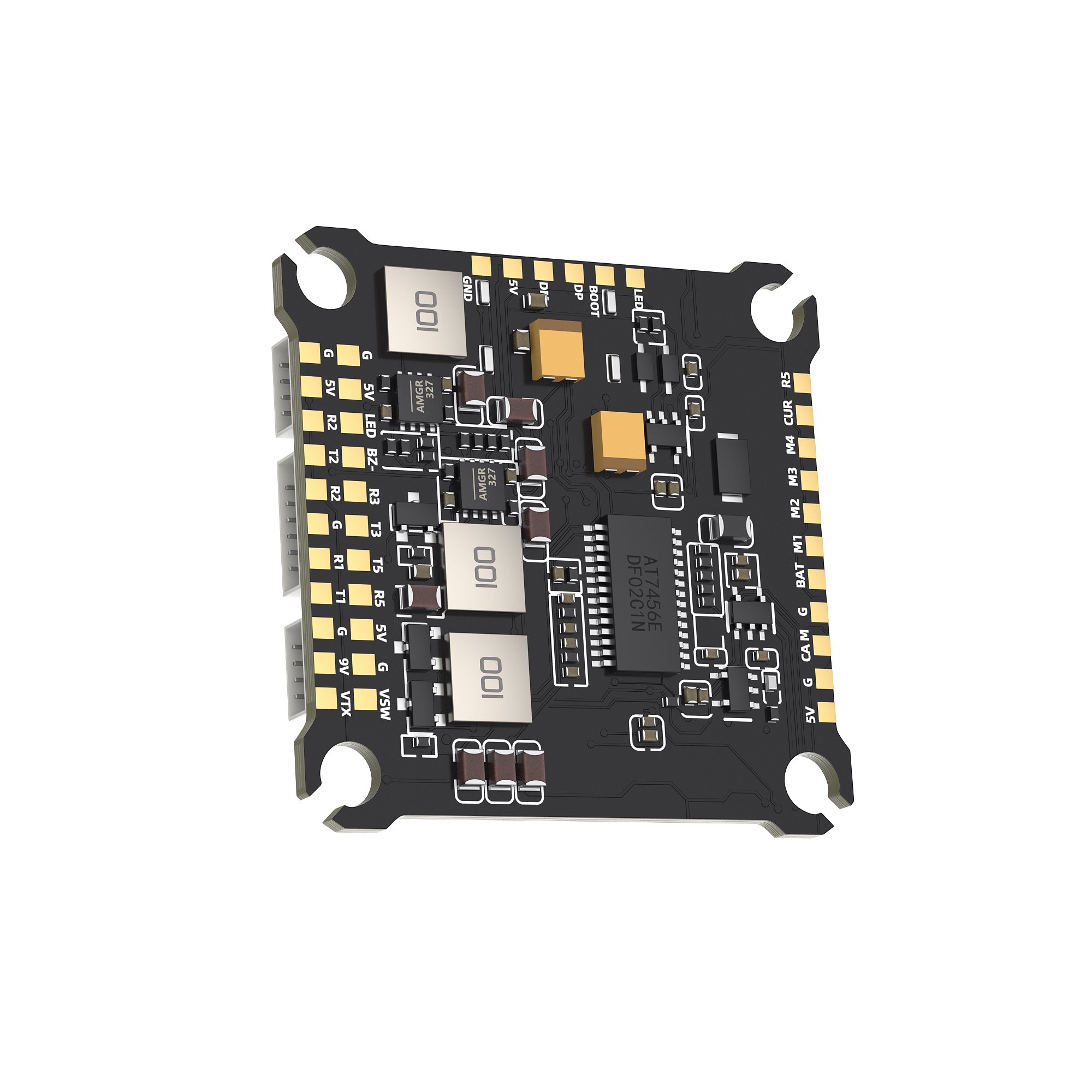

GEPRC GEP-F722-BT-HD V3 Bluetooth Flight Controller – DJI Support

Original price was: $56.99.Current price is: $46.99.

Customer Reviews

★★★★★
★★★★★
5.0 out of 5
333 global ratings
MODEL:
F722-BT-HD V3 Flight Controller
  • Wireless Tuning: Built-in Bluetooth for convenient mobile app configuration.
  • Stable Gyro: Equipped with the reliable MPU6000 for smooth flight.
  • DJI Ready: Dedicated 10V 2A BEC and port for DJI Digital HD system.
  • Powerful Processing: Features STM32F722 MCU for high-speed loop times.
  • Precise Altitude: Onboard BMP280 barometer for accurate altitude data.
  • Wide Voltage: Supports 3S-6S LiPo input for diverse drone builds.
SKU GP106610 Category Tags , , , , , , , , , , , , Brand:

Shop GEPRC GEP-F722-BT-HD V3. Features wireless Bluetooth tuning, MPU6000 gyro, and dual BECs for DJI HD systems. The ultimate F722 FC at WYECS.

The GEPRC GEP-F722-BT-HD V3 is a high-performance flight controller designed to simplify your build while maximizing control. As a cutting-edge Wireless Drone FC, it features an integrated Bluetooth module that allows you to adjust PIDs and configuration settings directly through your smartphone, eliminating the need for field-side laptops.

This Bluetooth F722 Flight Controller is powered by the STM32F722 MCU and the legendary MPU6000 gyro, ensuring ultra-low latency and a "locked-in" flight feel for both racing and freestyle. For digital pilots, the F722 FC DJI Support is unmatched, featuring a dedicated 10V 2A BEC and a plug-and-play connector to power the DJI Air Unit or O3 system cleanly.

Whether you are building a cinematic long-range rig or a high-speed basher, the GEPRC F722 BT V3 provides the reliability you need. With a built-in BMP280 barometer and 16MB of Blackbox storage, it offers full data logging and precision altitude hold capabilities. Upgrade your stack with the GEP-F722-BT-HD V3 and experience the freedom of wireless precision.

Feature

  1. Use mainstream STM32F722 chip
  2.  Equipped with the latest 42688-P gyroscope
  3. 512M black box storage
  4.  Support Bluetooth parameter tuning
  5. Integrated LC filter
  6.  Upgrade type-C USB interface
  7. Directly plugs into the DJI Air Unit
  8.  Simple and effective installation with shock-absorbing mounts for stable gyroscope performance
  9. Integrated Barometer
  10.  9V@2.5A + 5V@3A dual independent BEC

Specifications

  • MCU: STM32F722
  • IMU：ICM42688-P(SPI)
  • Air Unit Connection: Directly plugs into the DJI Air Unit
  • Black Box: 512M onboard
  • Bluetooth: Supported
  • Barometer: Supported
  • USB Interface: Type-C
  • OSD：BetaFlight OSD w/ AT7456E chip
  • BEC：5V@3A,9V@2.5A dual BEC
  • Firmware Target: GEPRCF722_BT_HD_V3
  • Size：36.9×36.9mm, hole 30.5×30.5mm，φ4mm hole becomes φ3mm after using a silicone shock-absorbing ring
  • Input Voltage: 3-6S LiPo
  • UART: 5 groups (UART4 fixed for Bluetooth)
  • Power Filter: Integrated LC filter
  • Weight: 8.2g

Includes

1 x Flight Controller

1 x DJI Air Unit Adapter Cable

1 x Flight Controller Adapter Cable

4 x Nylon nuts

4 x Silicone grommets

2 x sh1.0 4pinsilicone cable

1 x Camera connection cable

SUPPORT

Q: The SpeedyBee App cannot find the flight controller via Bluetooth. What should I do?+
First, power the FC via a LiPo battery, as USB power alone may not support the Bluetooth module. Check if the blue LED on the FC is blinking. Ensure your phone’s Bluetooth and Location services are turned on, and that...more
View Full Article: Details >
Q: My DJI O3 Air Unit has no OSD, how can I fix it?+
Ensure the 6-pin SH1.0 cable is securely connected to the dedicated HD port. In Betaflight “Ports” tab, enable “Configuration/MSP” on UART1 (or the designated port). Also, make sure “Canvas Mode” is enabled in the Betaflight CLI by typing: set osd_displayport_device...more
View Full Article: Details >

FAQ

Q: Why is the MPU6000 gyro still used in the GEP-F722-BT-HD V3?+
The MPU6000 is widely considered the most stable gyro for FPV due to its excellent vibration resistance and low-noise floor. It provides a more “locked-in” feel and is less sensitive to frame resonance than many newer high-frequency gyros....more
View Full Article: Details >
