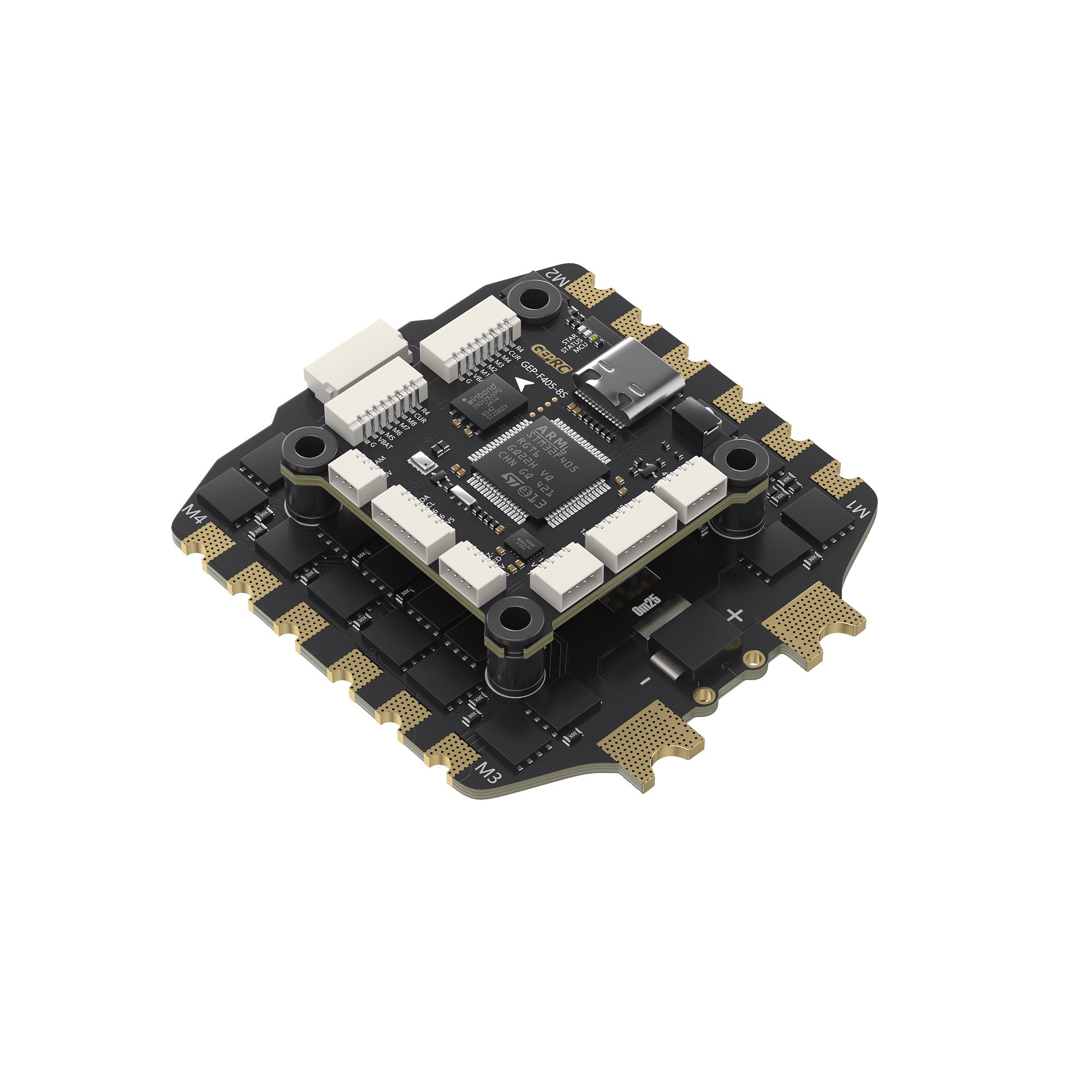

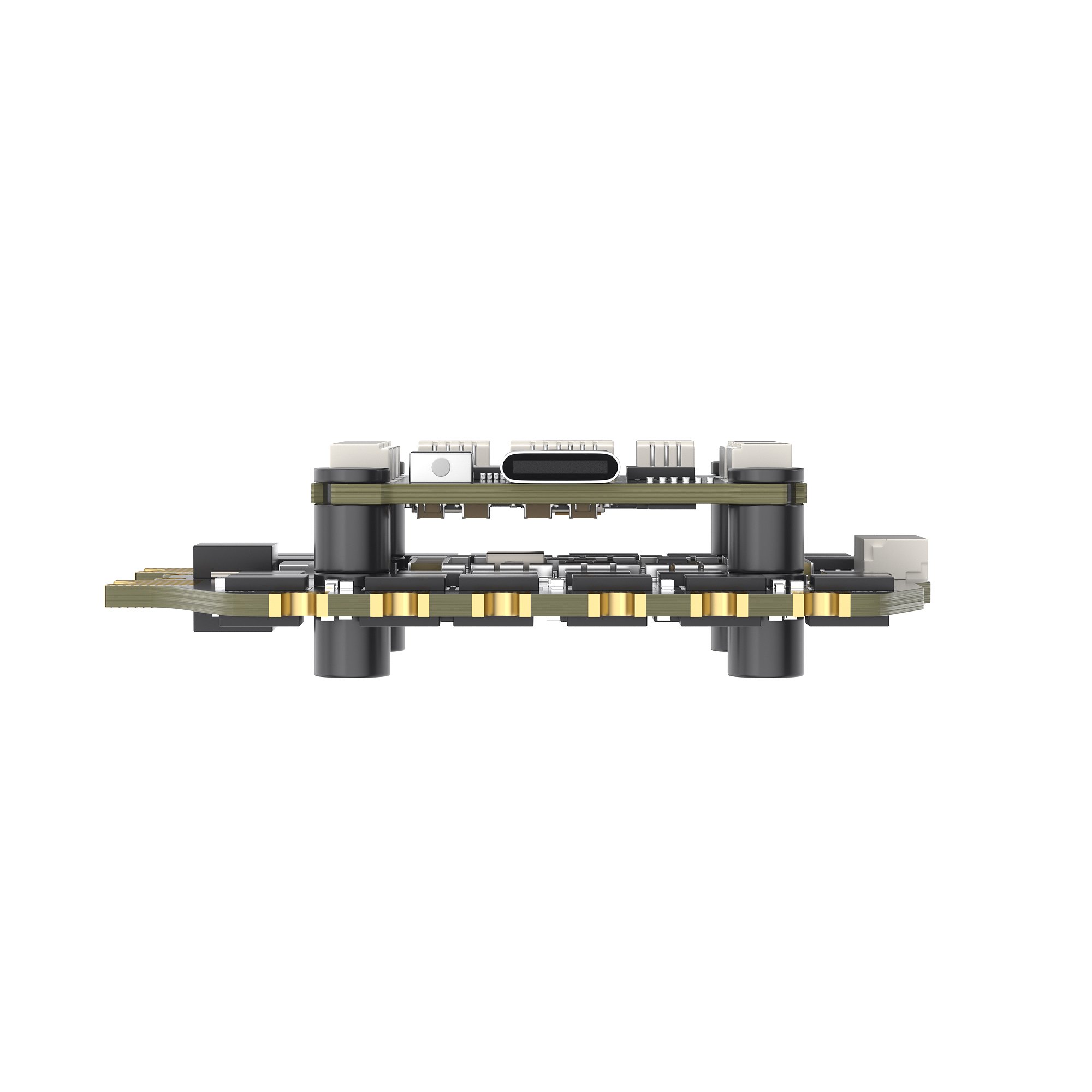

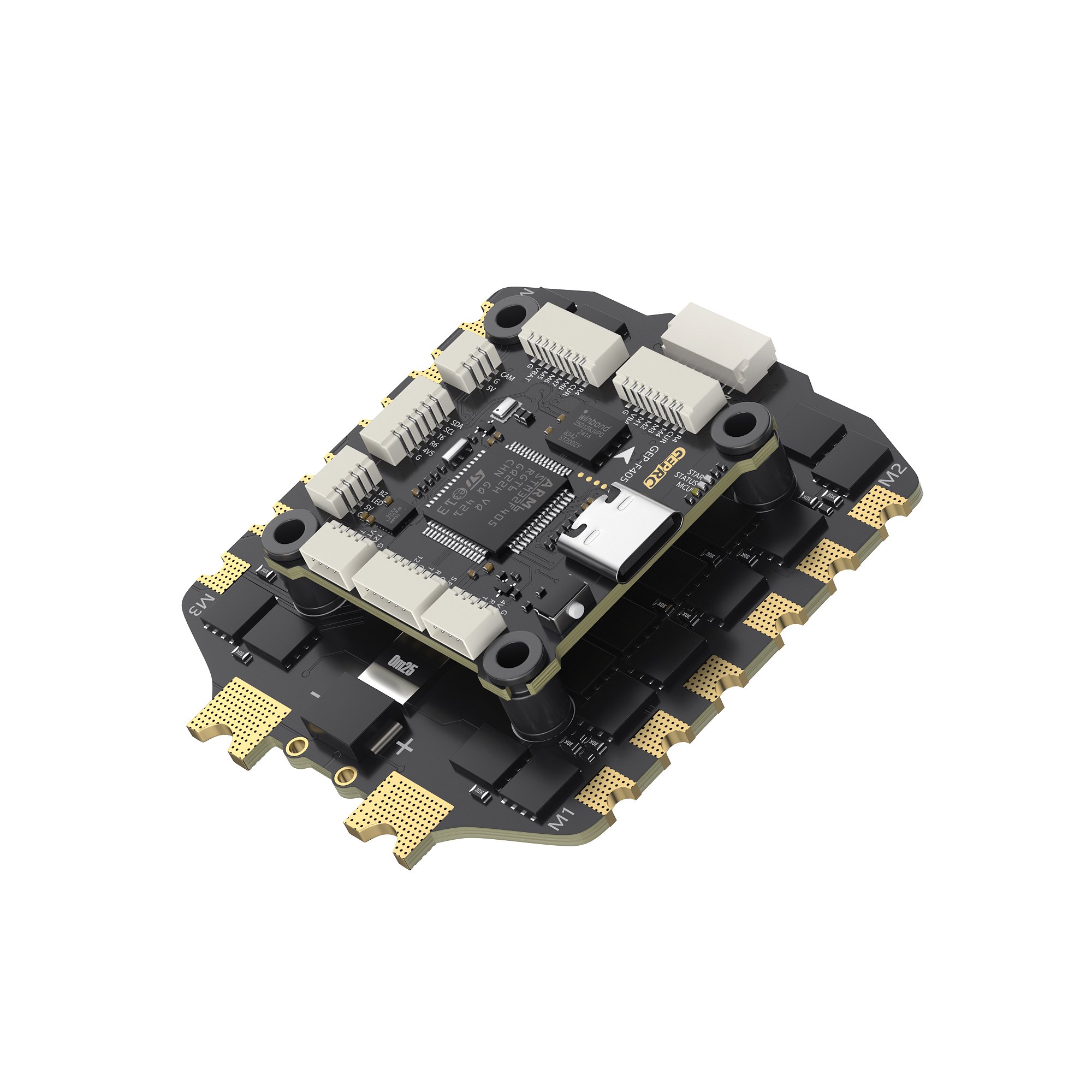

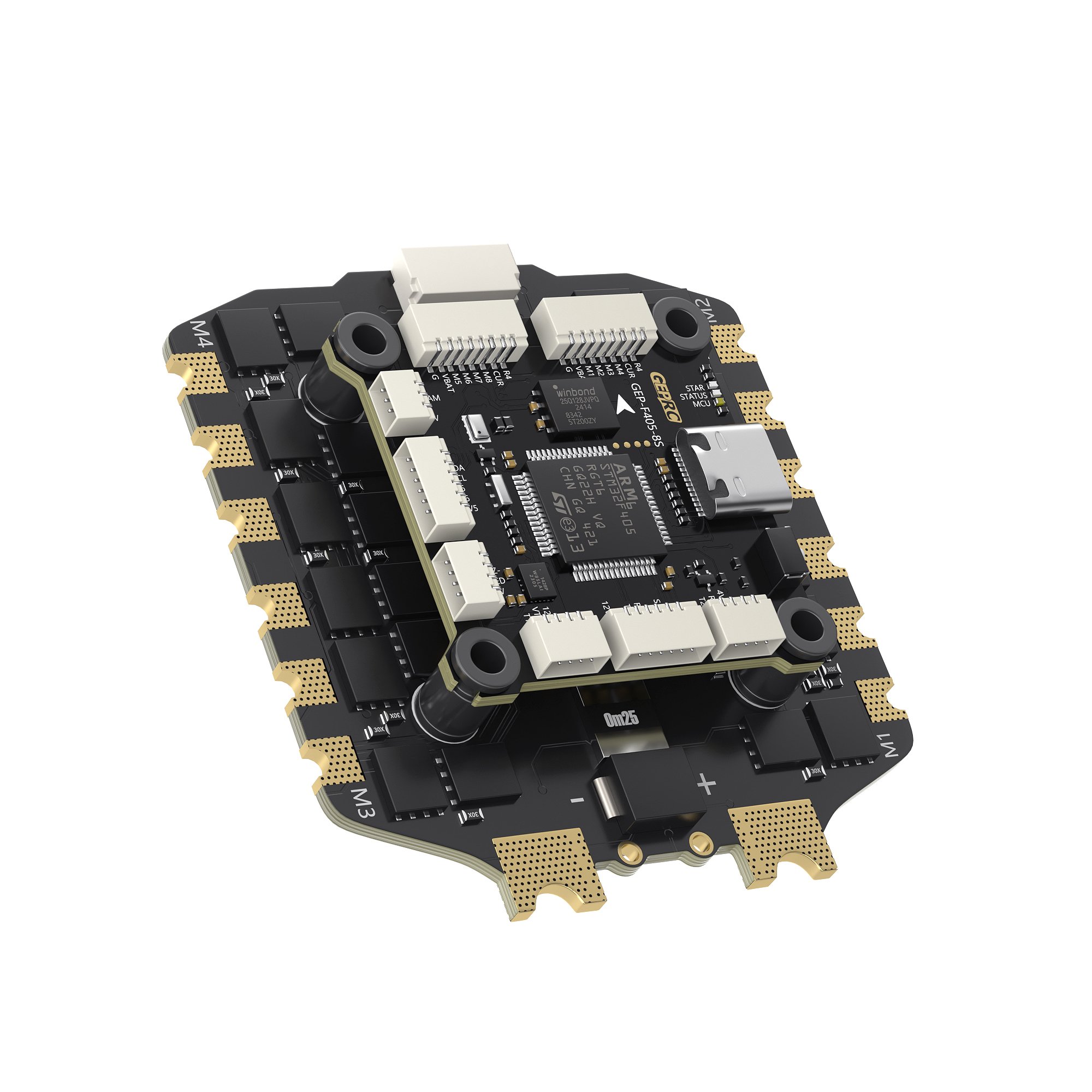

GEPRC TAKER F405 100A 8S Stack – Pro Racing Drone Electronics

Original price was: $189.99.Current price is: $169.99.

Customer Reviews

★★★★★
★★★★★
5.0 out of 5
333 global ratings
MODEL:
TAKER F405 BLS 100A 8S STACKF405-HD V3 Flight Controller
  • High-speed STM32F405 MCU for stable control.
  • Massive 100A 8-bit ESC for extreme current.
  • Supports 3-8S LiPo for maximum power output.
  • Low-noise ICM42688-P gyroscope sensor.
  • Reliable dual BEC: 5V/3A and 12V/2A.
  • Standard 30.5×30.5mm mounting pattern.
SKU GP107465 Category Tags , , , , , , , Brand:

Power your extreme builds with the GEPRC TAKER F405 100A 8S Stack. Combining a reliable F405 Flight Controller with a massive 100A FPV Stack, this Racing Drone Electronics kit is built for professional 8S FPV Power System needs.

The GEPRC TAKER F405 100A 8S Stack is a heavy-duty power solution designed for high-voltage and high-current FPV drones. At the core, the STM32F405 processor functions as a high-performance F405 Flight Controller, delivering the stability and processing power required for advanced flight maneuvers. This 100A FPV Stack is paired with a robust 8-bit ESC capable of handling 100A continuous current, making it a top-tier choice for professional Racing Drone Electronics.

This system is uniquely engineered as an 8S FPV Power System, allowing pilots to push the limits of thrust and efficiency with up to 8S LiPo batteries. The integrated ICM42688-P gyroscope ensures smooth, vibration-resistant flight data for a locked-in feel. With its dual BEC system providing 5V/3A and 12V/2A, the GEPRC TAKER F405 ensures your VTX and other peripherals stay powered during high-intensity sessions. Whether for cinelifters or high-power racing, this stack provides the reliability and raw strength needed for elite performance.

Changelog

Oct 20, 2025:

The flight control firmware has been changed to: [GEPRCF405_8S]. If you continue to use the [GEPRCF405_BT_HD] firmware for burning, you need to enter the following command in the CLI after burning the firmware:

resource SERIAL_TX 11 NONE
resource SERIAL_RX 11 NONE
set pinio_config = 1,1,1,1
set pinio_box = 32,41,255,255
save

Features

  1. Use mainstream STM32F405 chip
  2. Equipped with the latest 42688-P gyroscope
  3. 16M black box storage
  4. Integrated LC filter
  5. Upgrade type-C USB interface
  6. Directly plugged into the DJI Air Unit
  7. With TAKER H100_8S_BLS 100A 4IN1 ESC, Dual MOS, high current, silky flight
  8. Supports 8S Lipo battery
  9. Simple and reasonable installation method, the shock absorber can make the gyroscope work very stably
  10. 12V@3A + 5V@3A dual independent BEC

Specifications

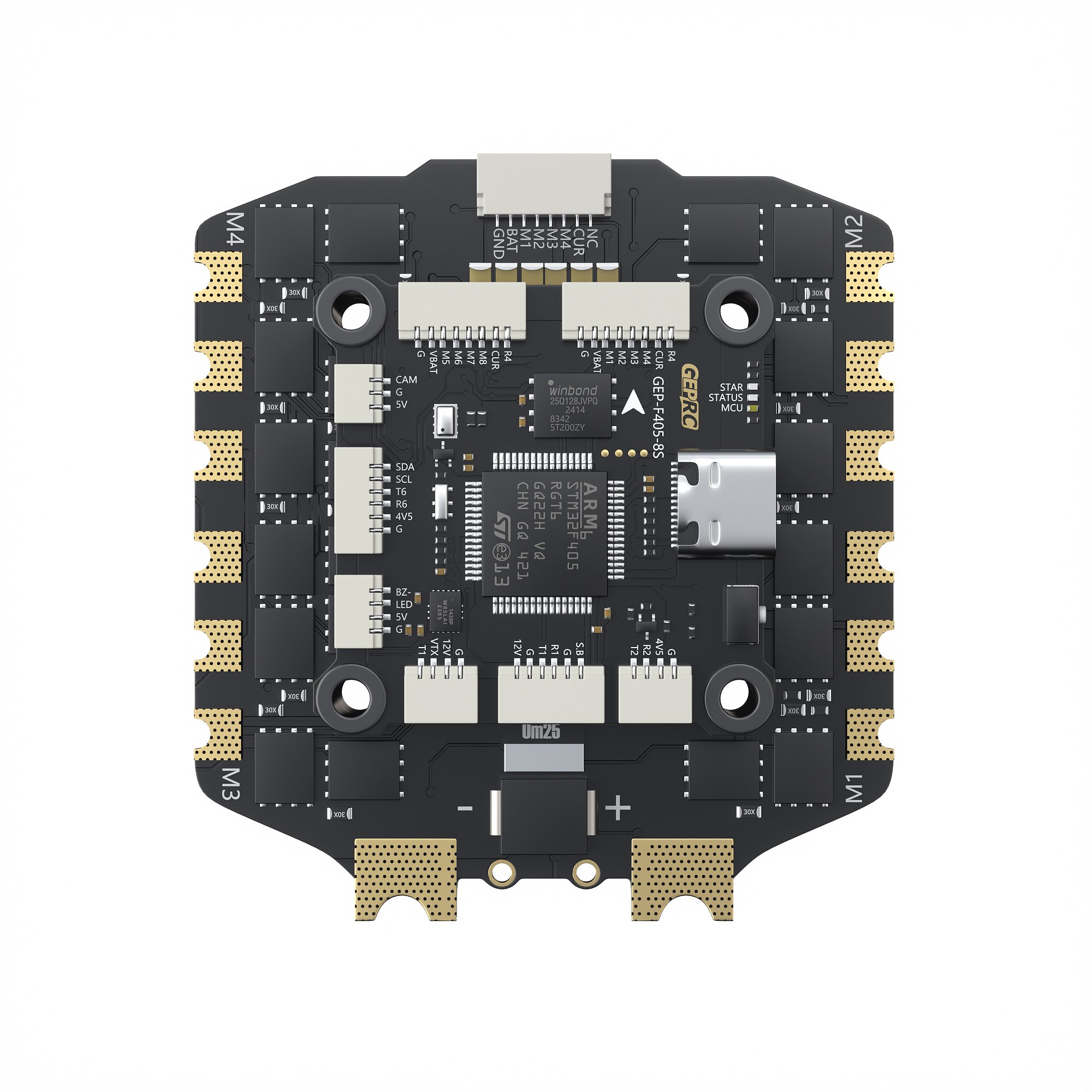

GEP-F405-8S Flight Controller
  • MCU: STM32F405
  • IMU: ICM42688-P(SPI)
  • Air Unit Connection: Direct plugging into DJI Air Unit
  • Black Box: 16M onboard
  • Barometer: support
  • Motor outputs: M1-M8
  • USB Interface: Type-C
  • OSD: BetaFlight OSD w/ AT7456E chip
  • BEC: 5V@3A,12V@3A dual BEC
  • Firmware Target: GEPRCF405_8S
  • Size: 37x37mm
  • Mounting: 30.5×30.5mm，φ4mm hole becomes φ3mm after using a silicone shock-absorbing circle
  • Input Voltage: 3-8S LiPo
  • UART: 6 UARTs
  • Power Filter: Integrated LC filter
  • Weight: 8.3g

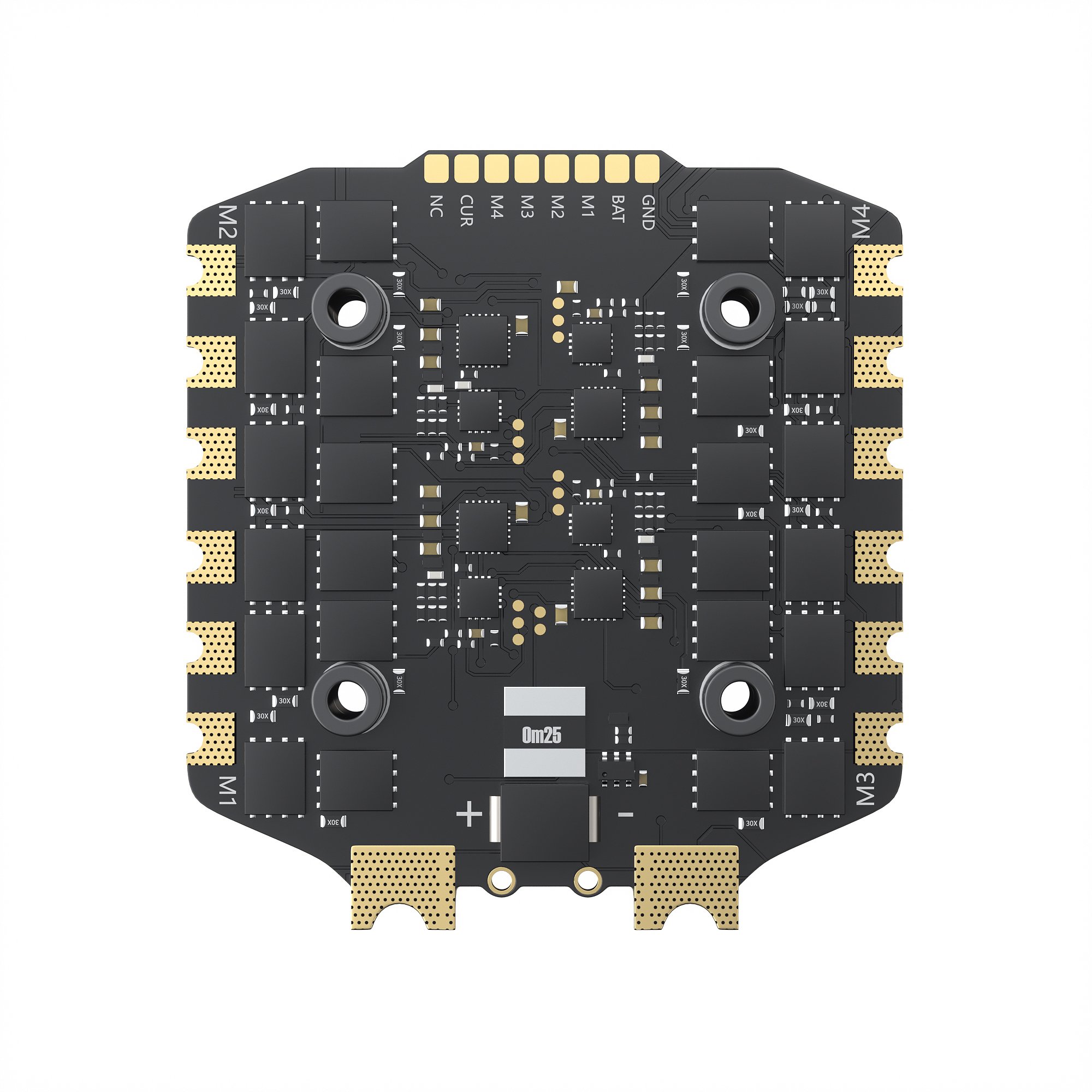

TAKER H100_8S_BLS 100A 4IN1 ESC
  • Input Voltage: 3-8S Lipo
  • Ammeter: Support
  • Calibration value: 200
  • Continue Current: 100A
  • Burst Current: 105A（5 second）
  • Support Protocol: Dshot 150/300/600
  • Size: 56.3*61.1mm，hole30.5×30.5mm，φ4mm hole becomes φ3mm after using the silicone shock-absorbing ring.
  • Weight: 28.8g
  • Target: B_X_3

Includes

1 x GEP-F405-8S Flight Controller

1 x TAKER H100_8S_BLS 100A 4IN1 ESC

1 x Electrolytic capacitor(50V 4700uF)

1 x DJI connection cable(SH1.0 6pin 100mm)

2 x FC adapter cable(SH1.0 8pin 30mm)

1 x Receiver silicone cable(SH1.0 4pin 150mm)

1 x Camera connection cable(SH1.0-SH1.25 3pin 135mm)

1 x VTX connection cable(SH1.0 4pin-6pin 100mm)

1 x XT90 battery plug

1 x Red and black power cable(10AWG 240mm)

4 x M3*30 screws

4 x M3*25 screws

8 x Nylon nuts(M3)

12 x Silicone anti-shake pads(M3)
