GEPRC TAKER F405 65A V2 Stack – Pro Racing Drone Electronics

Name: GEPRC TAKER F405 65A V2 Stack - Pro Racing Drone Electronics - WYECS STORE
Brand: WYECS
SKU: GP107210
Price: 96.99 USD
Availability: InStock
Rating: 5 (1 reviews)

Original price was: $126.99.Current price is: $96.99.

Customer Reviews

★★★★★

5.0 out of 5

333 global ratings

MODEL:

TAKER F405 BLS 65A V2 STACKF405-HD V3 Flight Controller H65_8S_BLS 65A 4IN1 ESC H65_8S_32BIT 65A 4in1 ESC

High-performance STM32F405 MCU for stable flight.
Powerful 65A 8-bit BLHeli_S 4-in-1 ESC.
Reliable ICM42688-P gyroscope for low noise.
Integrated dual BEC: 5V/3A and 9V/2.5A outputs.
Large 16MB Blackbox for flight data logging.
Versatile 3-6S LiPo power input support.

SKU GP107210 Category Flight Stacks Tags 65A ESC, 8-bit ESC, Drone Electronics, F4 FC, FPV Stack, GEPRC, Racing Drone, TAKER F405 Brand: GEPRC

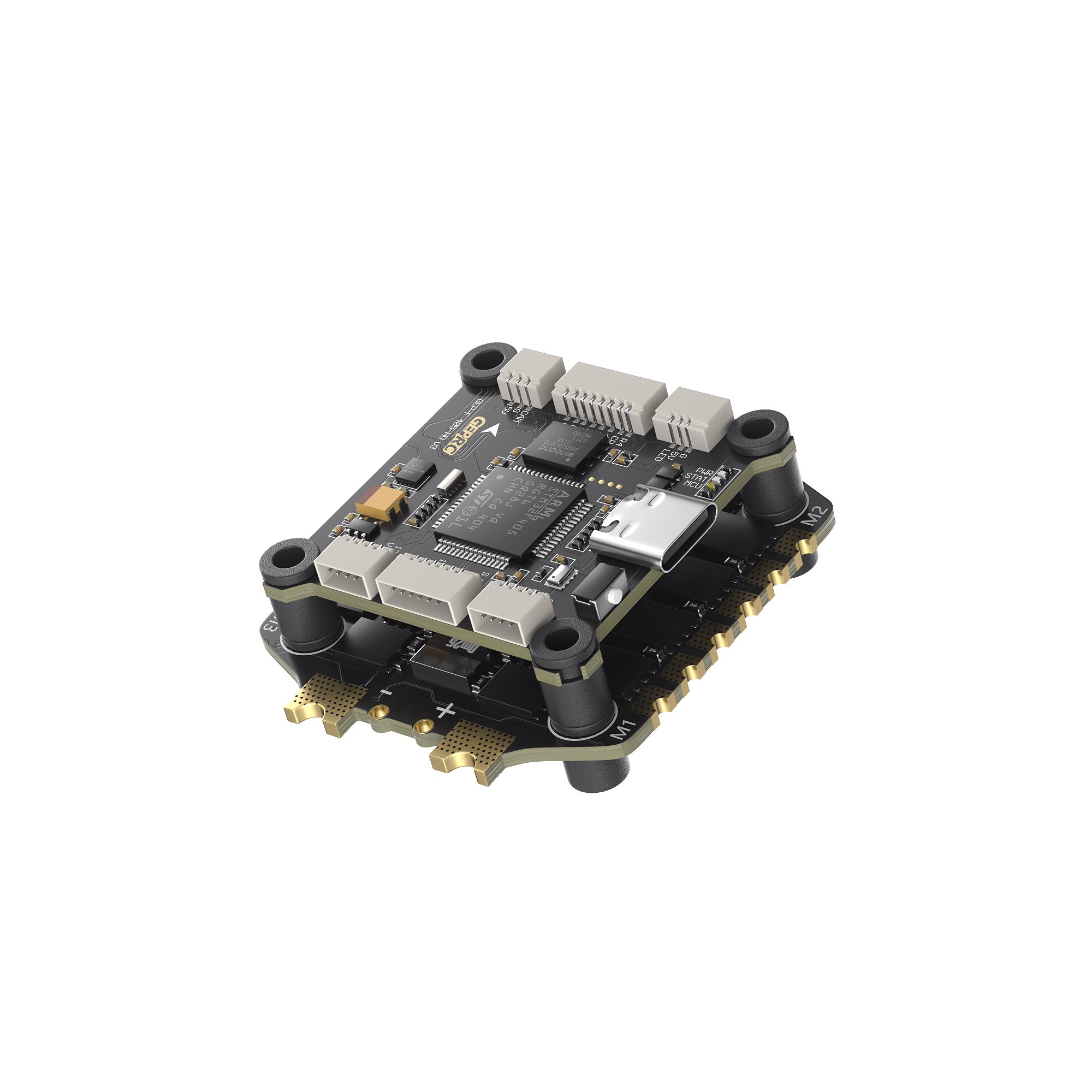

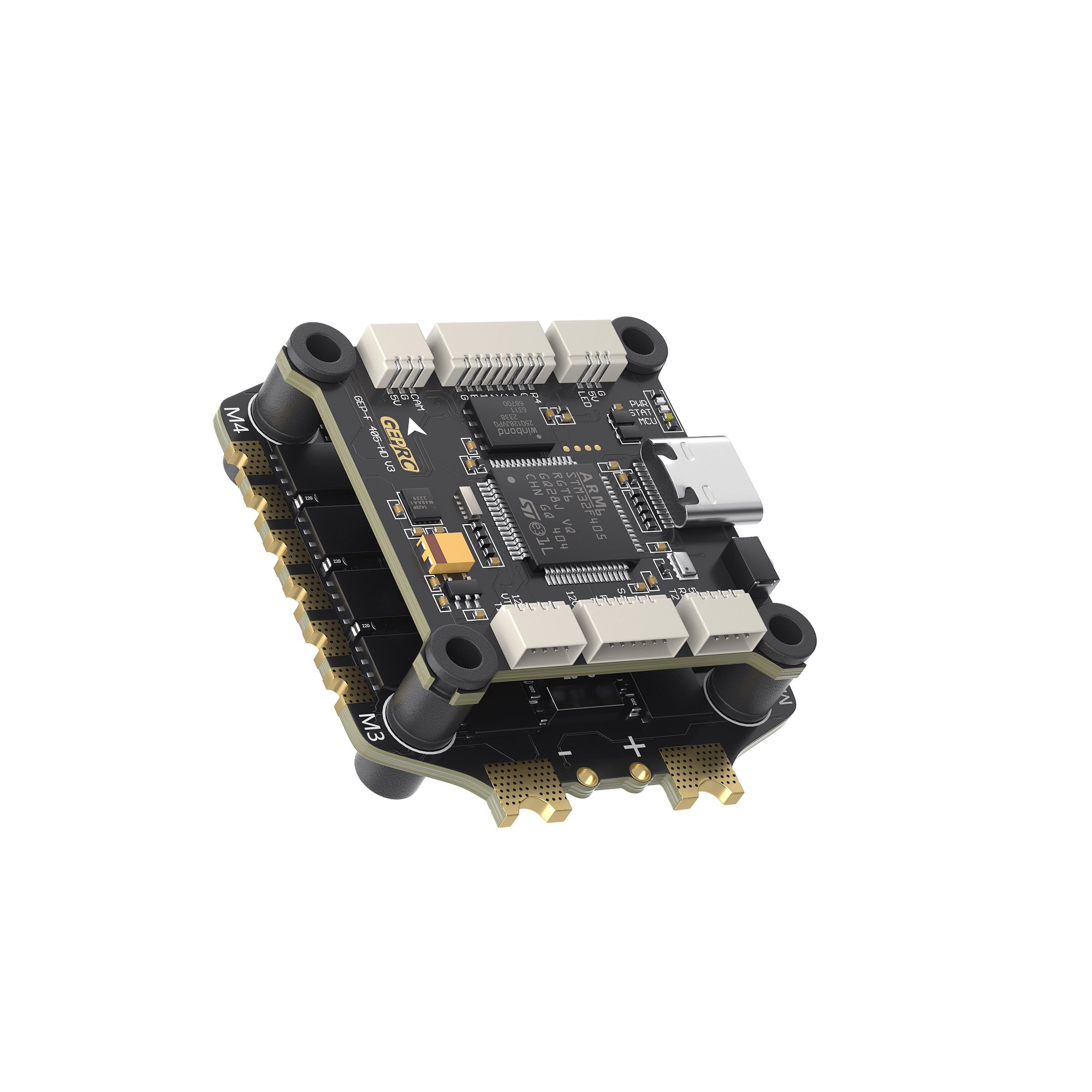

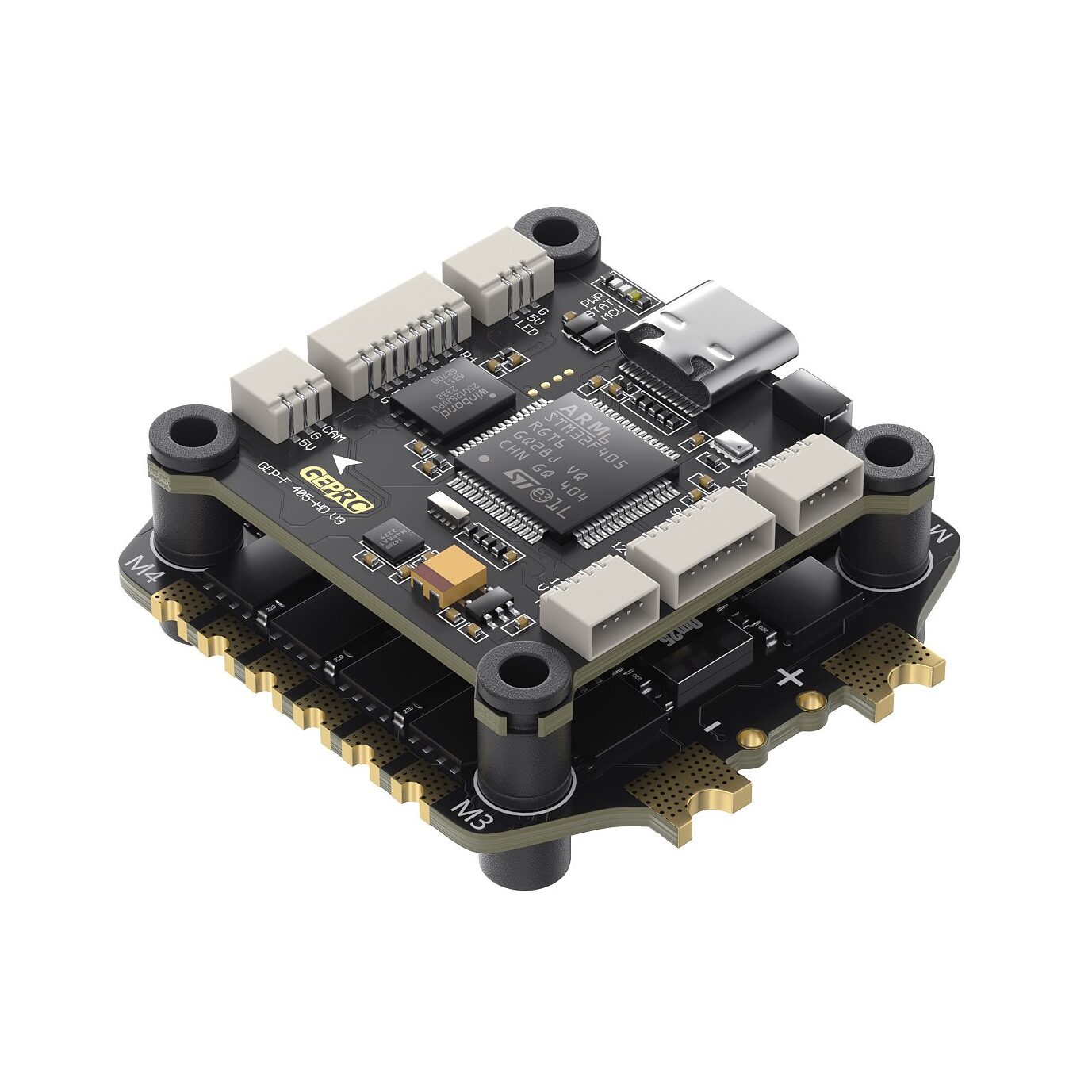

Boost your flight stability with the GEPRC TAKER F405 65A V2 Stack. Combining a high-performance F405 Flight Controller with a robust 65A FPV Stack, it is the perfect core for professional Racing Drone Electronics.

The GEPRC TAKER F405 65A V2 Stack is an industry-standard power system designed for freestyle and racing drones. At its heart, the STM32F405 MCU serves as a highly efficient F405 Flight Controller, delivering the stable processing power needed for a locked-in flight experience. This 65A FPV Stack is paired with the TAKER G65A V2, a high-current 8-bit 65A ESC that supports 3-6S LiPo batteries, ensuring smooth power delivery even during aggressive maneuvers.

Engineered for reliable Racing Drone Electronics, the stack features the ICM42688-P gyroscope to minimize vibration and data noise. It includes a built-in 16MB Blackbox for comprehensive flight data logging and a dual BEC system providing 5V/3A and 9V/2.5A to power your VTX and camera reliably. With its standard 30.5x30.5mm mounting pattern, the GEPRC TAKER F405 V2 is a versatile and powerful choice for modern FPV builds in 2026.

Use mainstream STM32F405 chip
Equipped with the latest 42688-P gyroscope
16M black box storage
Integrated LC filter
Upgrade type-C USB interface
Directly plugged into the DJI Air Unit
With TAKER H65_8S_BLS 65A 4IN1 ESC, the flying feel is silky

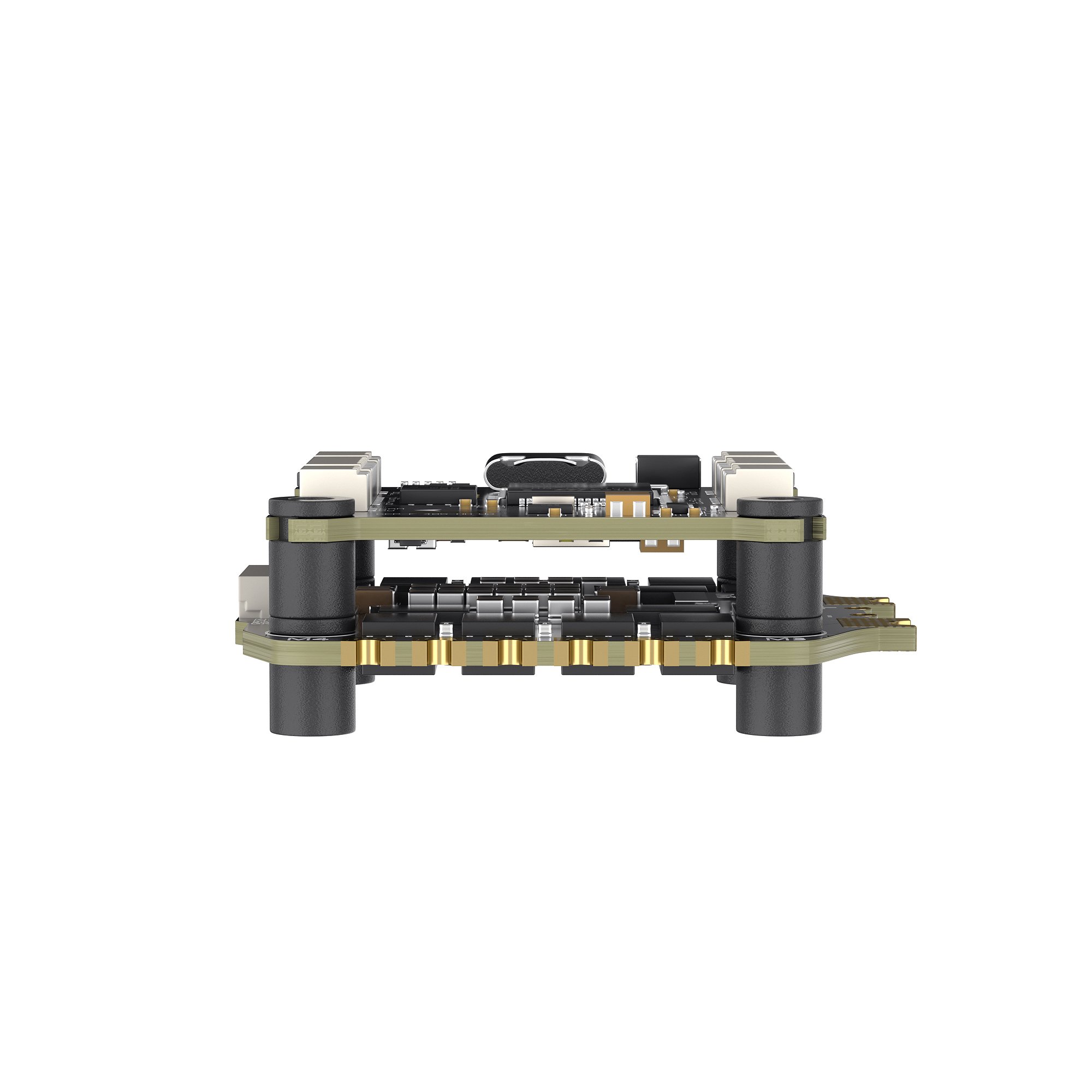

Simple and reasonable installation method, the shock absorber can make the gyroscope work very stably
12V@2.5A + 5V@3A dual independent BEC

Specifications

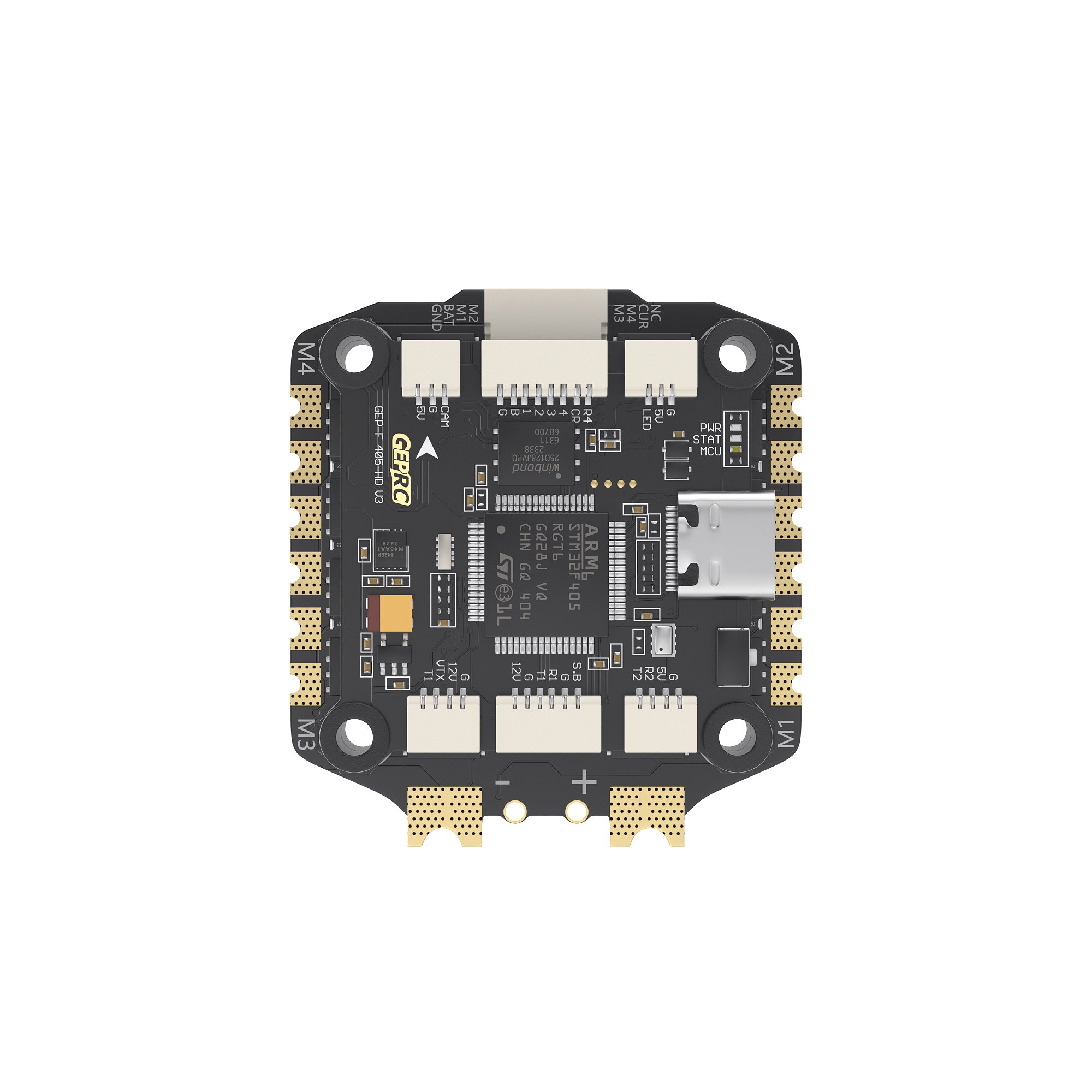

GEP-F405-HD V3 Flight Controller

MCU：STM32F405
IMU：ICM42688-P(SPI)
Air Unit Connection：Direct plugging into DJI Air Unit
Black Box：16M onboard
Barometer: support
Motor outputs：M1-M6
USB Interface：Type-C
OSD：BetaFlight OSD w/ AT7456E chip
BEC：5V@3A,12V@2.5A dual BEC
Firmware Target：GEPRCF405
Size：37.15×37.15mm
Mounting: 30.5×30.5mm，φ4mm hole becomes φ3mm after using a silicone shock-absorbing circle
Input Voltage：3-6S LiPo
UART：6 UARTs
Power Filter：Integrated LC filter
Weight：7.3g

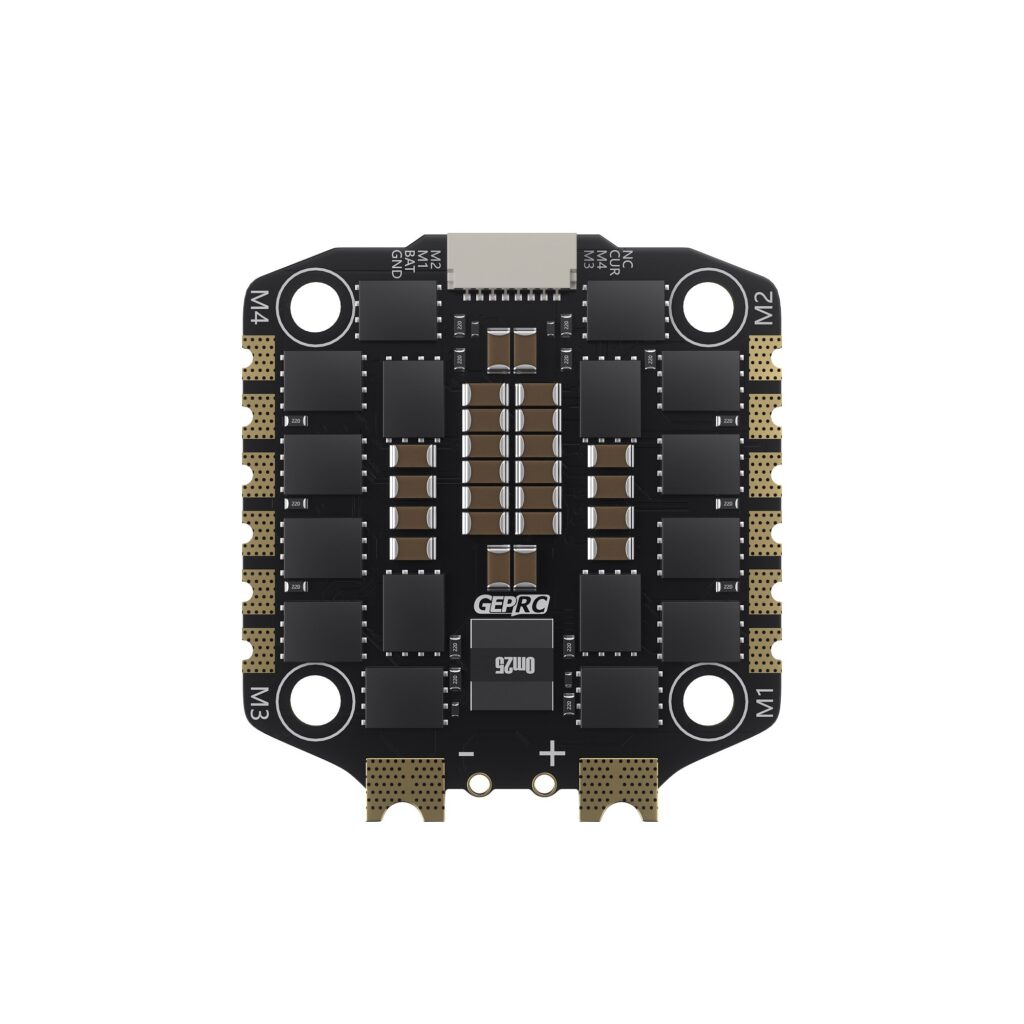

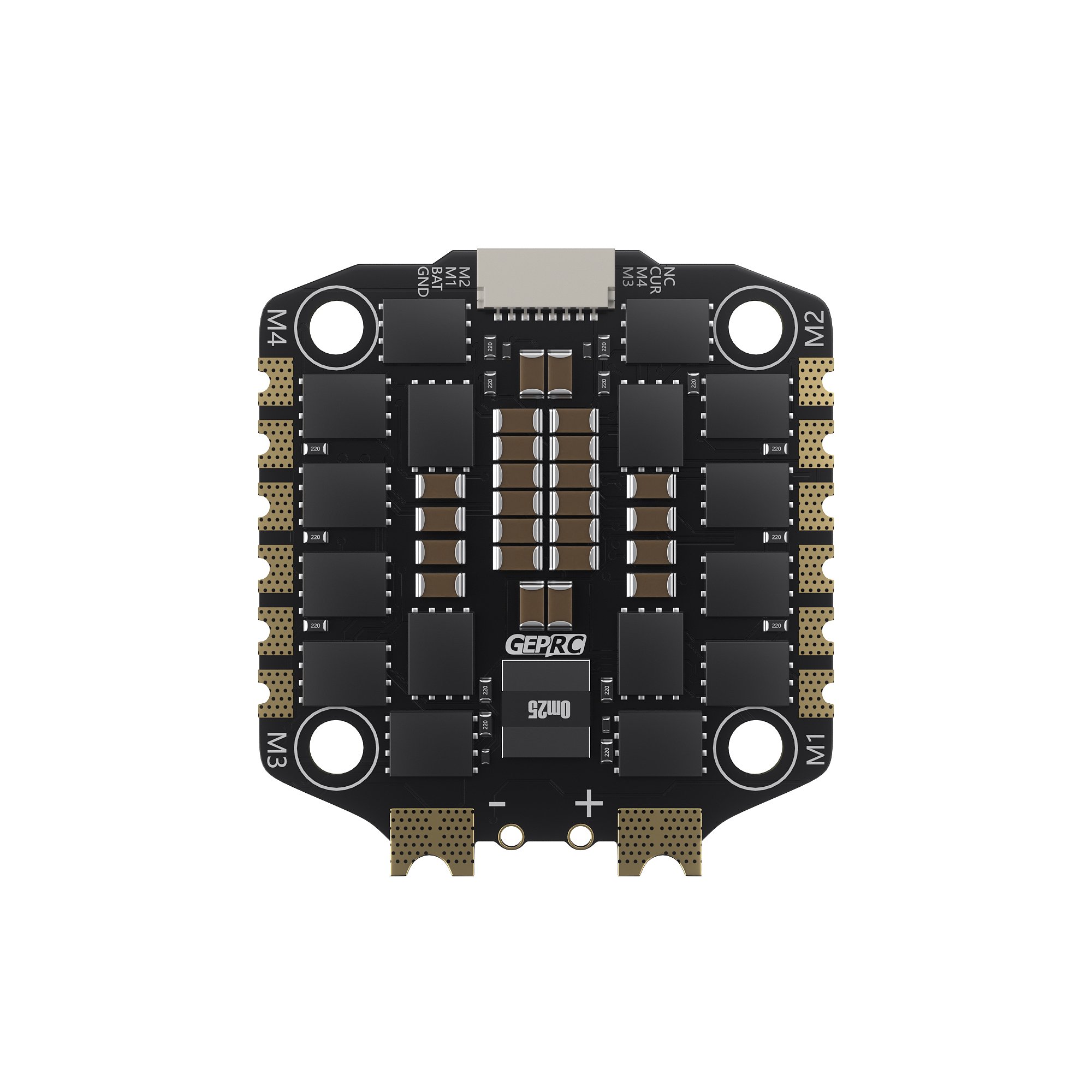

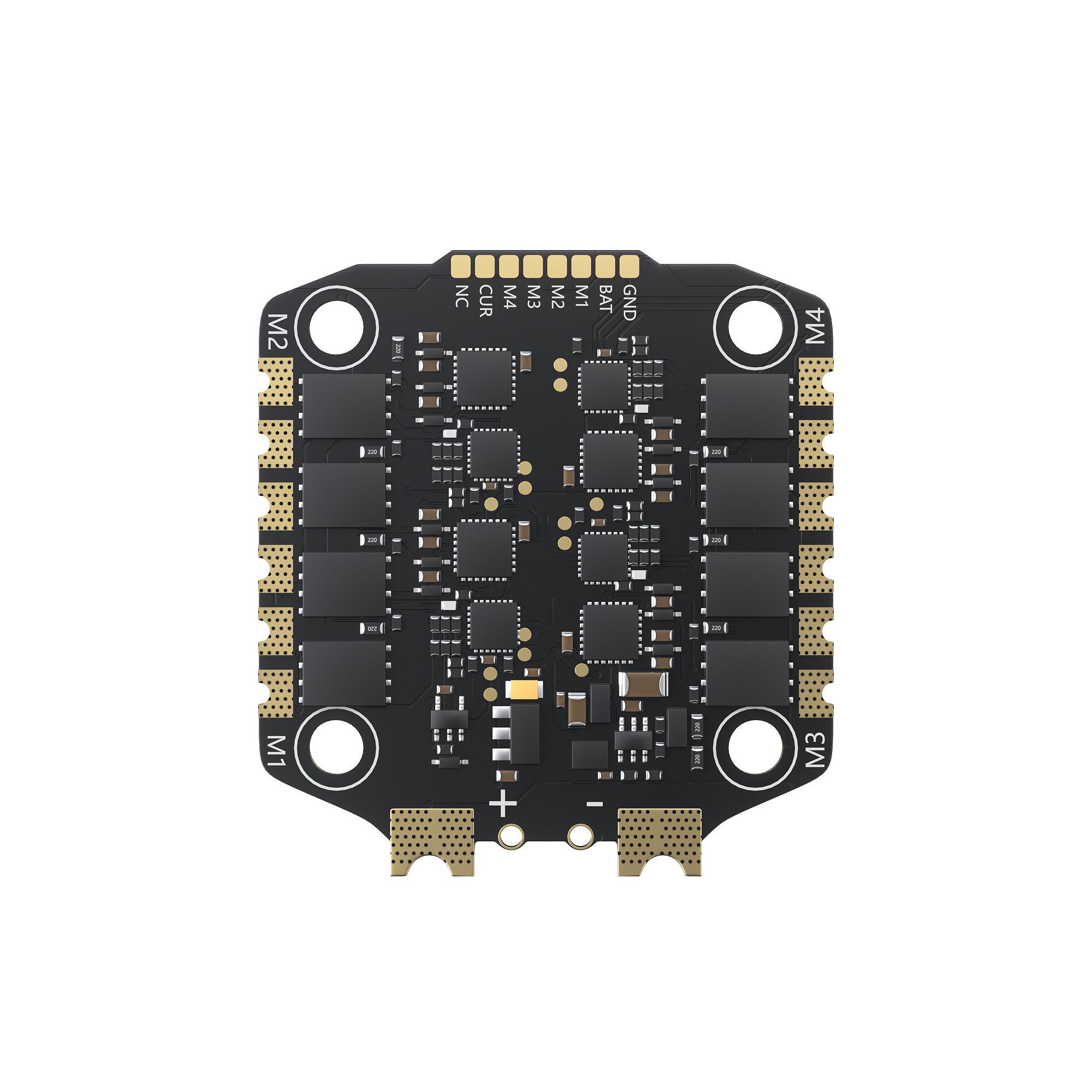

TAKER H65_8S_BLS 65A 4IN1 ESC

Input Voltage: 3-8S Lipo
Ammeter: Support
Continue Current：65A
Burst Current：70A（5 second）
Support Protocol: Dshot 150/300/600
Size：42×45.7mm，hole30.5×30.5mm，φ4mm hole becomes φ3mm after using the silicone shock-absorbing ring.
Weight: 14.9g
Target: B_X_30

Includes

1 x Flight Controller

1 x ESC

1 x Capacitor

1 x DJI Air Unit Adapter Cable

1 x Flight Controller Adapter Cable

1 x XT60 Power cable

4 x M3*30 Screws

4 x M3*25 Screws

8 x Nylon nuts

8 x Silicone grommets

2 x sh1.0 4pin silicone cable

1 x Camera connection cable
