GEPRC TAKER F405 BLS 80A V2 STACK – Pro 3-6S FPV Power System

Name: GEPRC TAKER F405 BLS 80A V2 STACK - Pro 3-6S FPV Power System - WYECS STORE
Brand: WYECS
SKU: GP107215
Price: 138.99 USD
Availability: InStock
Rating: 5 (1 reviews)

Original price was: $168.99.Current price is: $138.99.

Customer Reviews

★★★★★

5.0 out of 5

22 global ratings

MODEL:

TAKER F405 BLS 80A V2 STACKF405-HD V3 Flight Controller H80_BLS 80A 4IN1 ESC

High-performance STM32F405 MCU for stable flight.
Massive 80A 8-bit BLHeli_S 4-in-1 ESC.
Reliable ICM42688-P low-noise gyroscope.
Supports 3-6S LiPo for extreme power builds.
Integrated dual BEC: 5V 3A and 12V 2A outputs.
Large 16MB Blackbox for flight data logging.

SKU GP107215 Category Flight Stacks Tags 8-bit ESC, 80A ESC, Drone Electronics, F4 FC, FPV Stack, GEPRC, Racing Drone, TAKER F405 Brand: GEPRC

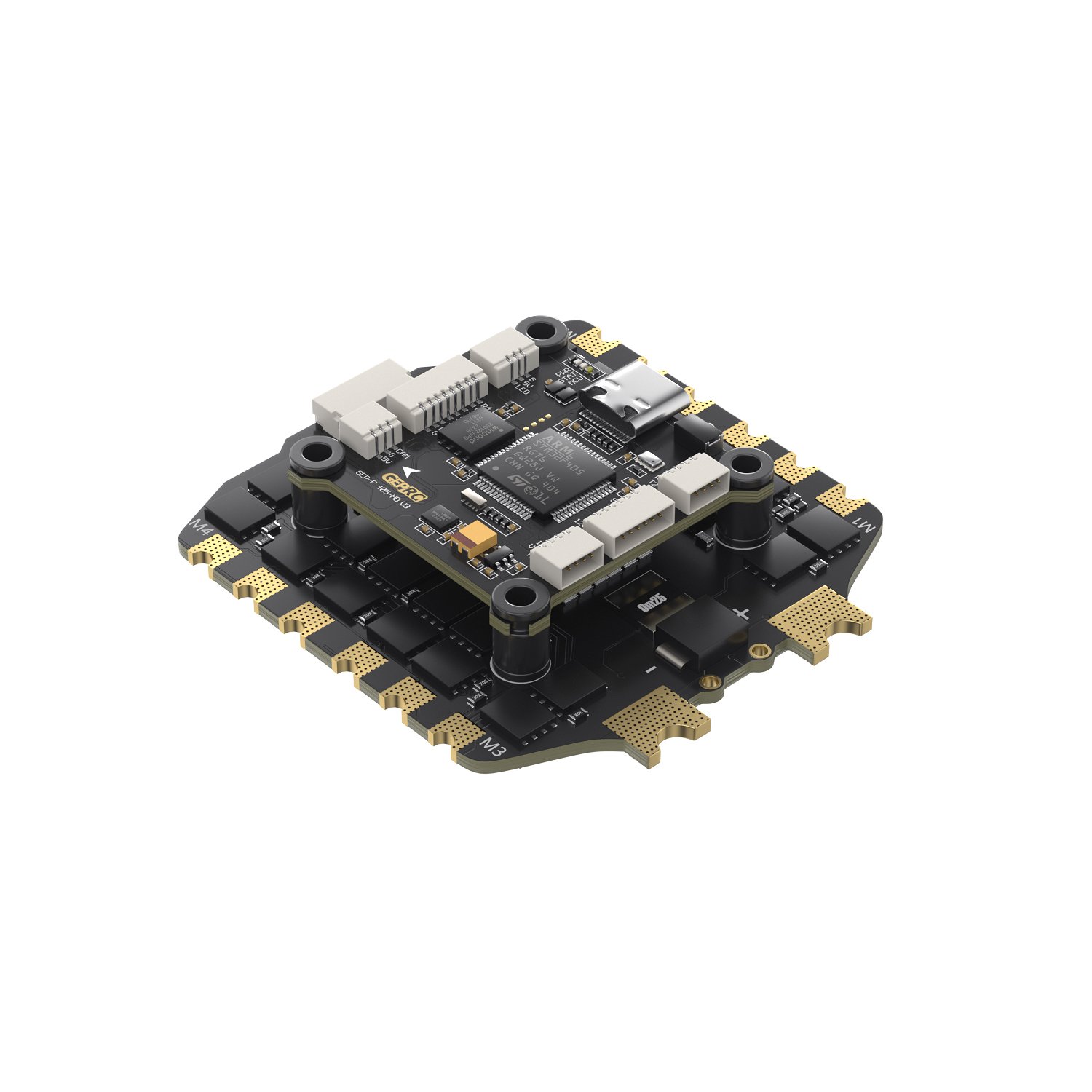

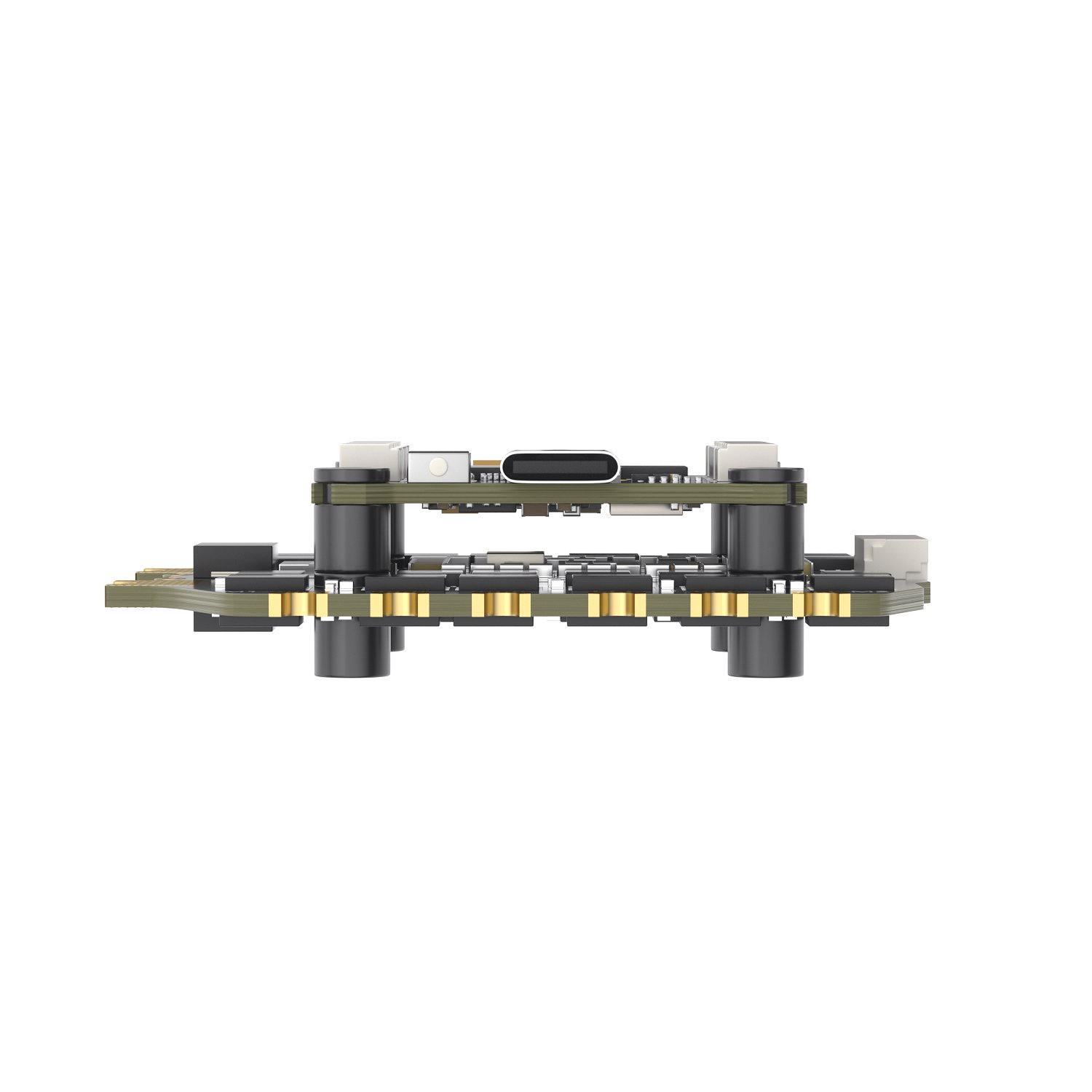

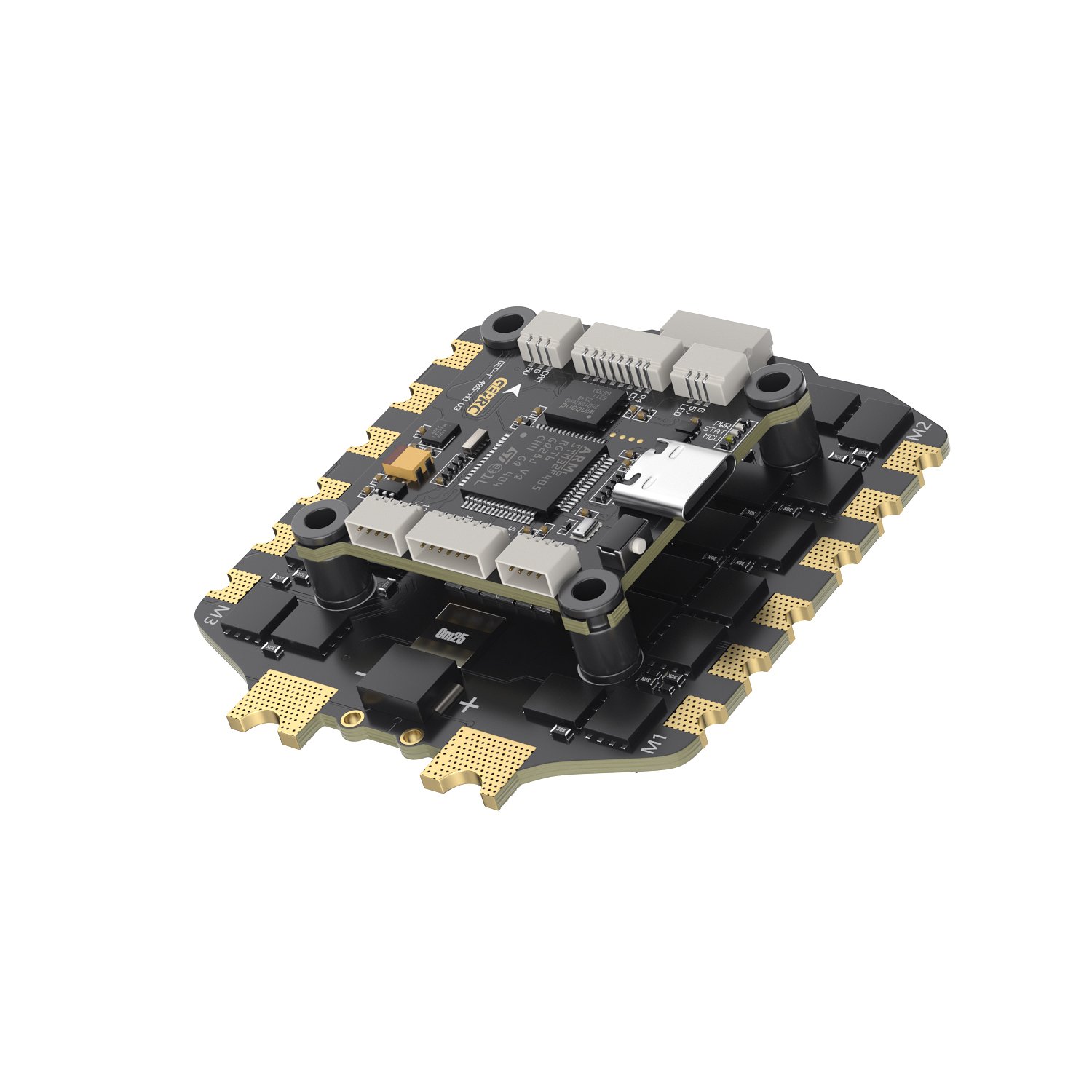

Power your high-torque builds with the GEPRC TAKER F405 80A V2 Stack. Featuring a reliable F405 Flight Controller and a massive 80A FPV Stack, this kit is engineered for elite Racing Drone Electronics performance.

The GEPRC TAKER F405 80A V2 Stack is a heavy-duty flight system designed for pilots who demand maximum power and stability. At its core, the STM32F405 processor functions as a high-performance F405 Flight Controller, delivering the stable processing power required for advanced maneuvers. This 80A FPV Stack is paired with the TAKER G80A ESC, a robust 80A BLHeli_S ESC capable of handling an incredible 80A continuous current, making it a top-tier choice for professional Racing Drone Electronics.

This power system supports 3-6S LiPo input, providing plenty of headroom for heavy-duty motors used in cinelifters or high-power racing rigs. The integrated ICM42688-P gyroscope ensures smooth, vibration-resistant flight data for a locked-in feel. With its dual BEC system providing 5V 3A and 12V 2A, the GEPRC TAKER F405 ensures your VTX and other peripherals stay powered reliably. For pilots seeking a durable and high-current 80A BLHeli_S ESC and flight controller combo, this stack offers the raw strength needed for elite flight performance.

Features

Use mainstream STM32F405 chip
Equipped with the latest 42688-P gyroscope
16M black box storage
Integrated LC filter
Upgrade type-C USB interface
Directly plugged into the DJI Air Unit
With TAKER H80_BLS 80A 4IN1 ESC, Dual MOS, high current, silky flight
Simple and reasonable installation method, the shock absorber can make the gyroscope work very stably
12V@2.5A + 5V@3A dual independent BEC

Specifications

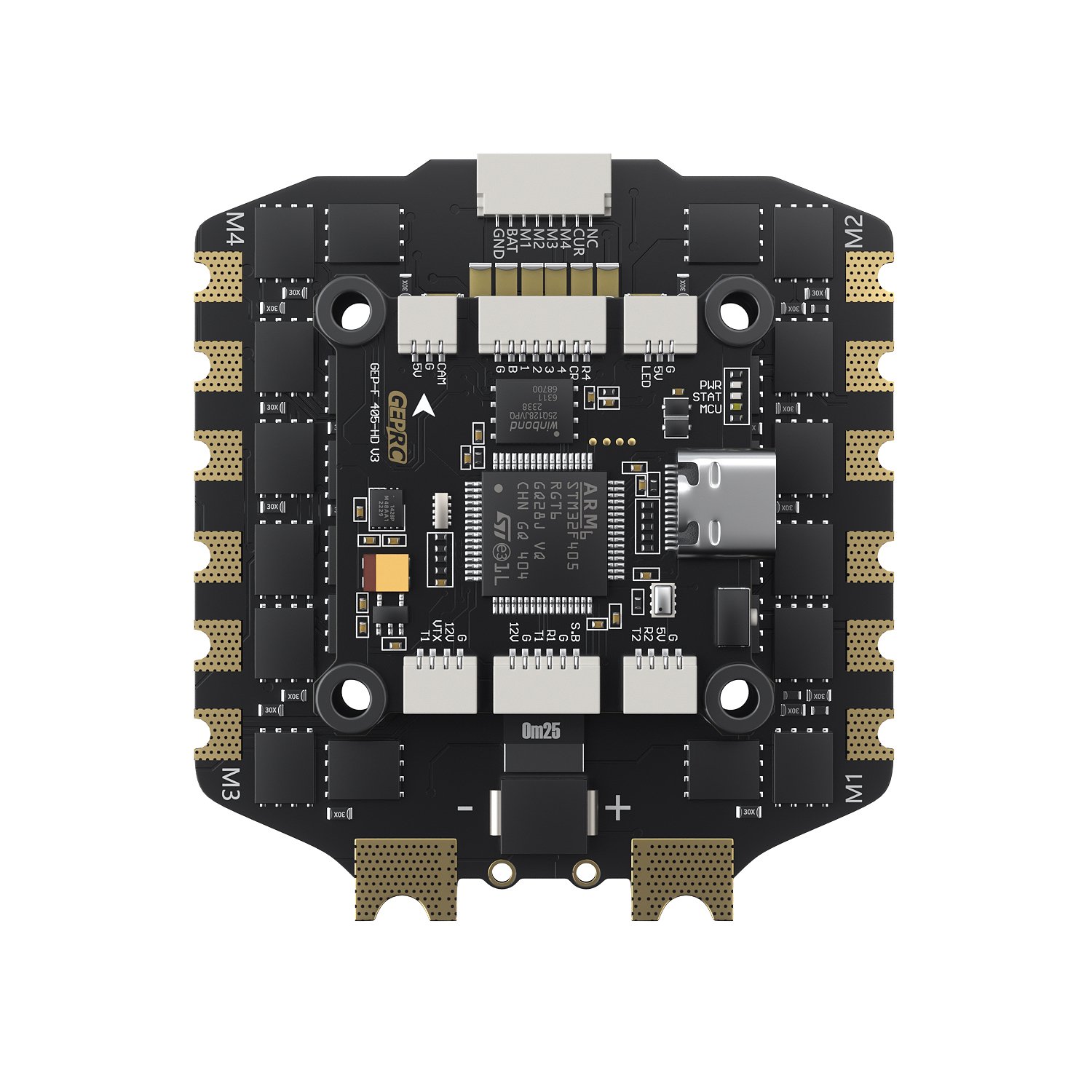

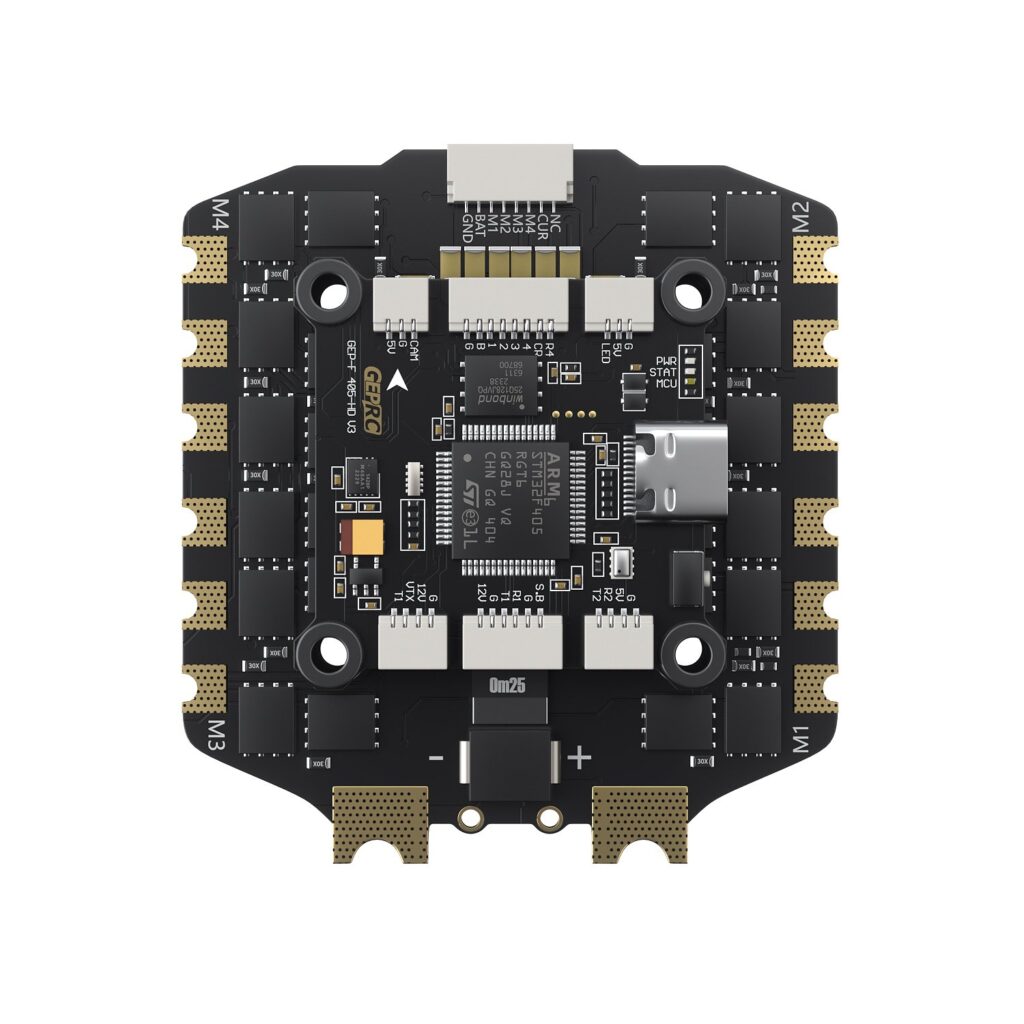

GEP-F405-HD V3 Flight Controller

MCU：STM32F405
IMU：ICM42688-P(SPI)
Air Unit Connection：Direct plugging into DJI Air Unit
Black Box：16M onboard
Barometer: support
Motor outputs：M1-M6
USB Interface：Type-C
OSD：BetaFlight OSD w/ AT7456E chip
BEC：5V@3A,12V@2.5A dual BEC
Firmware Target：GEPRCF405
Size：37.15×37.15mm
Mounting: 30.5×30.5mm，φ4mm hole becomes φ3mm after using a silicone shock-absorbing circle
Input Voltage：3-6S LiPo
UART：6 UARTs
Power Filter：Integrated LC filter
Weight：7.3g

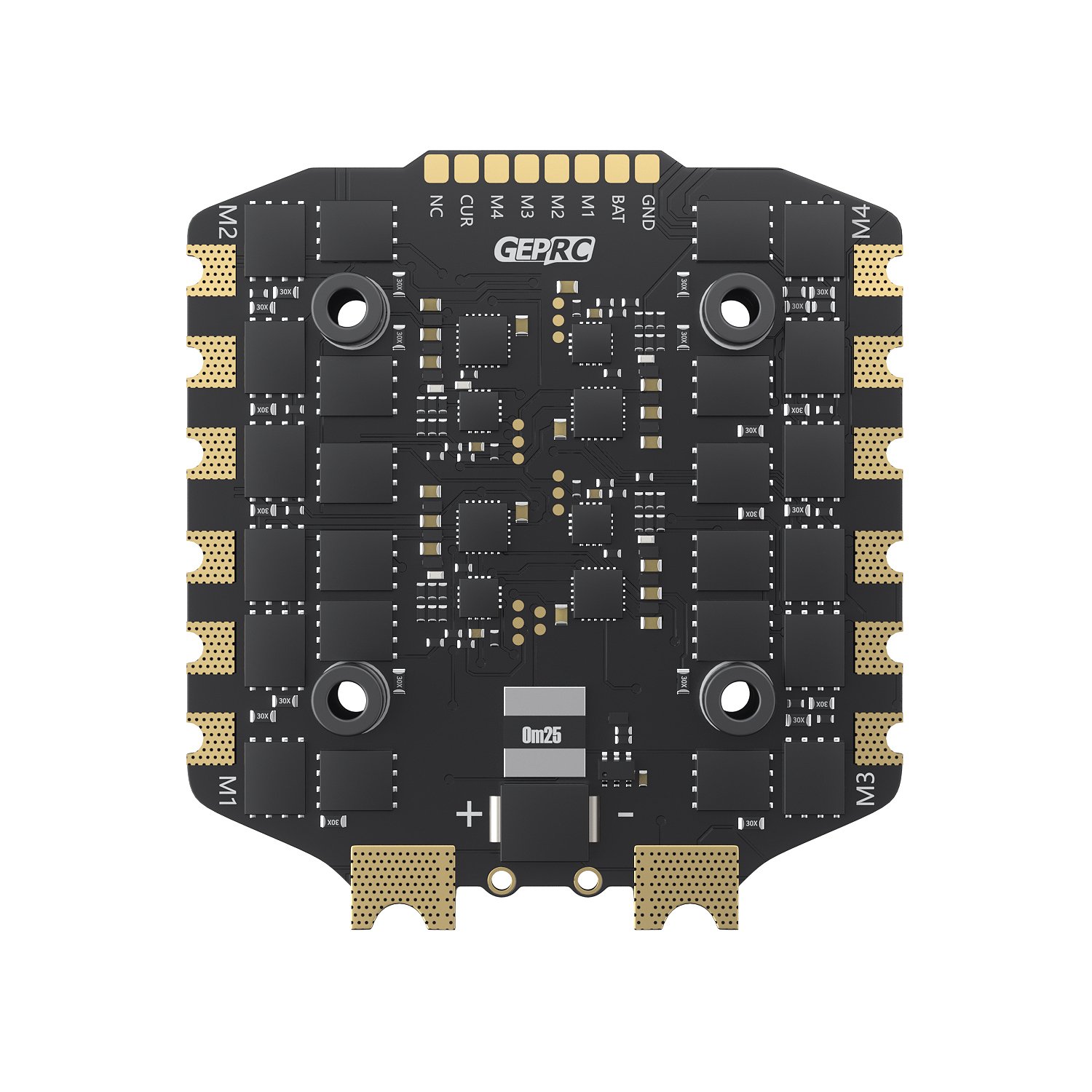

TAKER H80_BLS 80A 4IN1 ESC

Input Voltage: 3-6S Lipo
Ammeter: Support
Continue Current：80A
Burst Current：85A（5 second）
Support Protocol: Dshot 150/300/600
Size：56.3*61.1mm，hole30.5×30.5mm，φ4mm hole becomes φ3mm after using the silicone shock-absorbing ring.
Weight: 28.1g
Target: B_X_30
