The GEPRC TAKER F405 AIO is a high-performance 20A Whoop AIO with a built-in ELRS receiver. Perfect for ultra-light 2-4S FPV AIO builds, it provides elite F405 ELRS AIO stability for professional Racing Drone Electronics.
The GEPRC TAKER F405 AIO is an ultra-compact and highly integrated flight system designed for micro drones and toothpick builds. At its heart, the STM32F405 processor functions as a high-performance F405 ELRS AIO, providing the reliability and processing speed required for small-scale freestyle and racing. This 20A Whoop AIO features a robust 4-in-1 ESC capable of handling 20A continuous current, making it an ideal choice for 2-4S FPV AIO power systems.
One of the standout features of this board is the built-in ExpressLRS 2.4G receiver, offering long-range performance and low latency without the need for external hardware. As a leading piece of Racing Drone Electronics, it includes 16MB of onboard Blackbox storage for detailed flight logging. With its standard 25.5x25.5mm mounting pattern and lightweight footprint, the GEPRC TAKER F405 AIO delivers the perfect balance of power and convenience for sub-250g pilots.

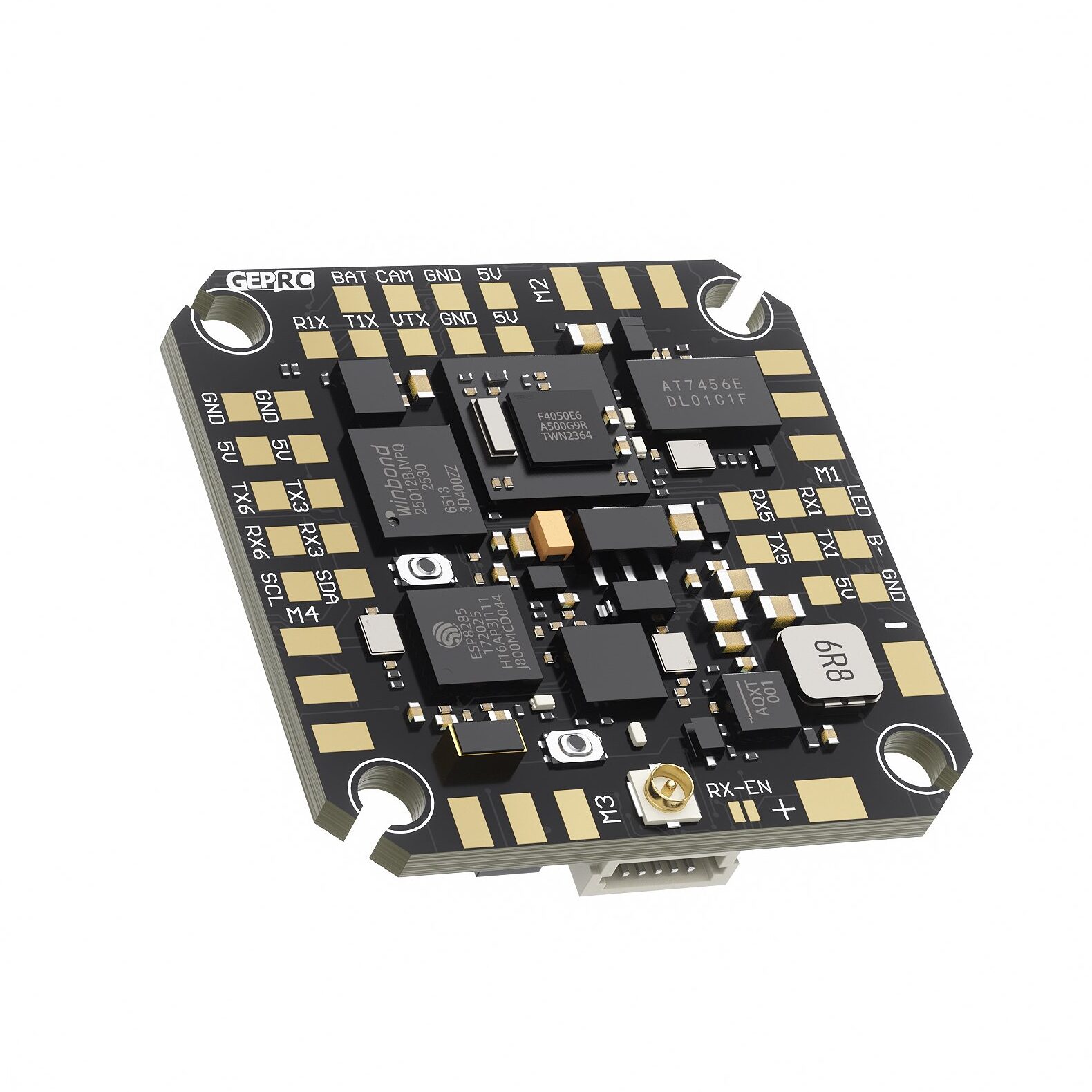

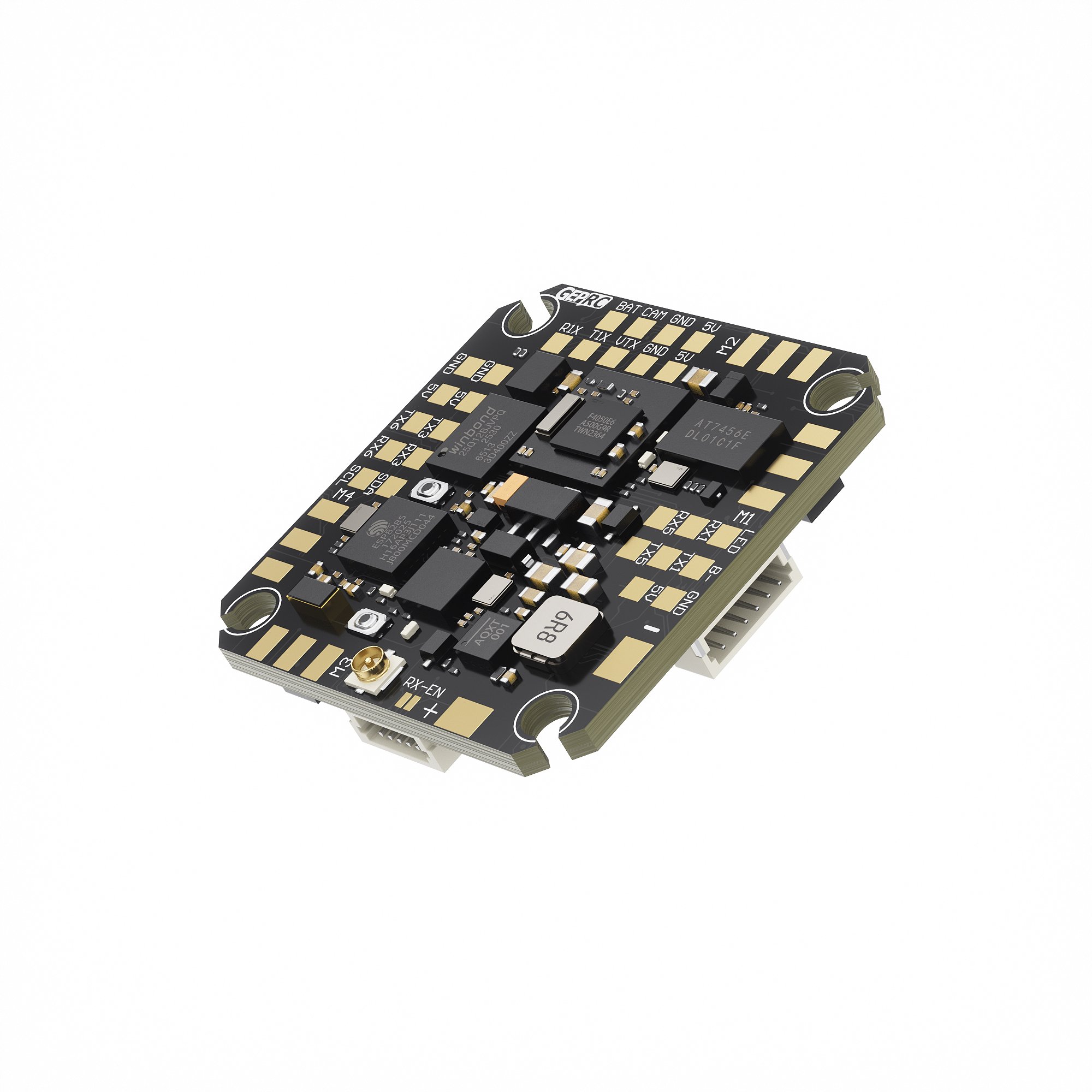

The TAKER F405 20A ELRS2.4G 2–4S AIO features a compact STM32F405 BGA MCU paired with an ICM42688-P (SPI) gyroscope, delivering a highly integrated design that occupies minimal space.
With a built-in ELRS 2.4GHz receiver, the overall build is cleaner and more streamlined.
It offers 5 full UART ports, providing ample connectivity for common peripherals. An independently designed 6-pin connector on the bottom of the flight controller allows direct plug-in of various HD digital VTX systems, significantly reducing soldering effort.
The AIO uses Bluejay ESC firmware for smooth and responsive throttle performance. It supports a continuous current of 20A and a burst current of 25A (10 seconds), with compatibility for 2–4S LiPo batteries.
Additional features include OSD tuning, buzzer, and LED support.
Weighing only 7g, it is ideal for 1.6-inch to 2.2-inch micro FPV builds.
1 × TAKER F405 20A ELRS2.4G 2–4S AIO
1 × XT30 18AWG 7cm Power Cable
1 × 35V 220µF Capacitor
1 × 60mm SH1.0 6-Pin Dual-Ended Cable
1 × SH1.0 6-Pin Cable
1 × Type-C Configuration Board
1 × 60mm SH1.0 5-Pin Dual-Ended Cable
8 × M2×6.5mm FC Rubber Grommets (Black)
