GEPRC TAKER F722 BLS 65A V2 Stack – Pro Racing Drone Electronics

Name: GEPRC TAKER F722 BLS 65A V2 Stack - Pro Racing Drone Electronics - WYECS STORE
Brand: WYECS
SKU: GP107211
Price: 108.99 USD
Availability: InStock
Rating: 5 (1 reviews)

Original price was: $129.99.Current price is: $108.99.

Customer Reviews

★★★★★

5.0 out of 5

333 global ratings

MODEL:

TAKER F722 BLS 65A V2 STACK

High-speed STM32F722RET6 MCU processor.
Powerful 65A 8-bit BLHeli_S 4-in-1 ESC.
Stable ICM42688-P low-noise gyroscope.
Reliable dual BEC: 5V/3A and 9V/2.5A.
Supports 3-6S LiPo for professional flight.
Standard 30.5×30.5mm mounting pattern.

SKU GP107211 Category Flight Stacks Tags 65A ESC, 8-bit ESC, Drone Electronics, F7 FC, FPV Stack, GEPRC, Racing Drone, TAKER F722 BLS Brand: GEPRC

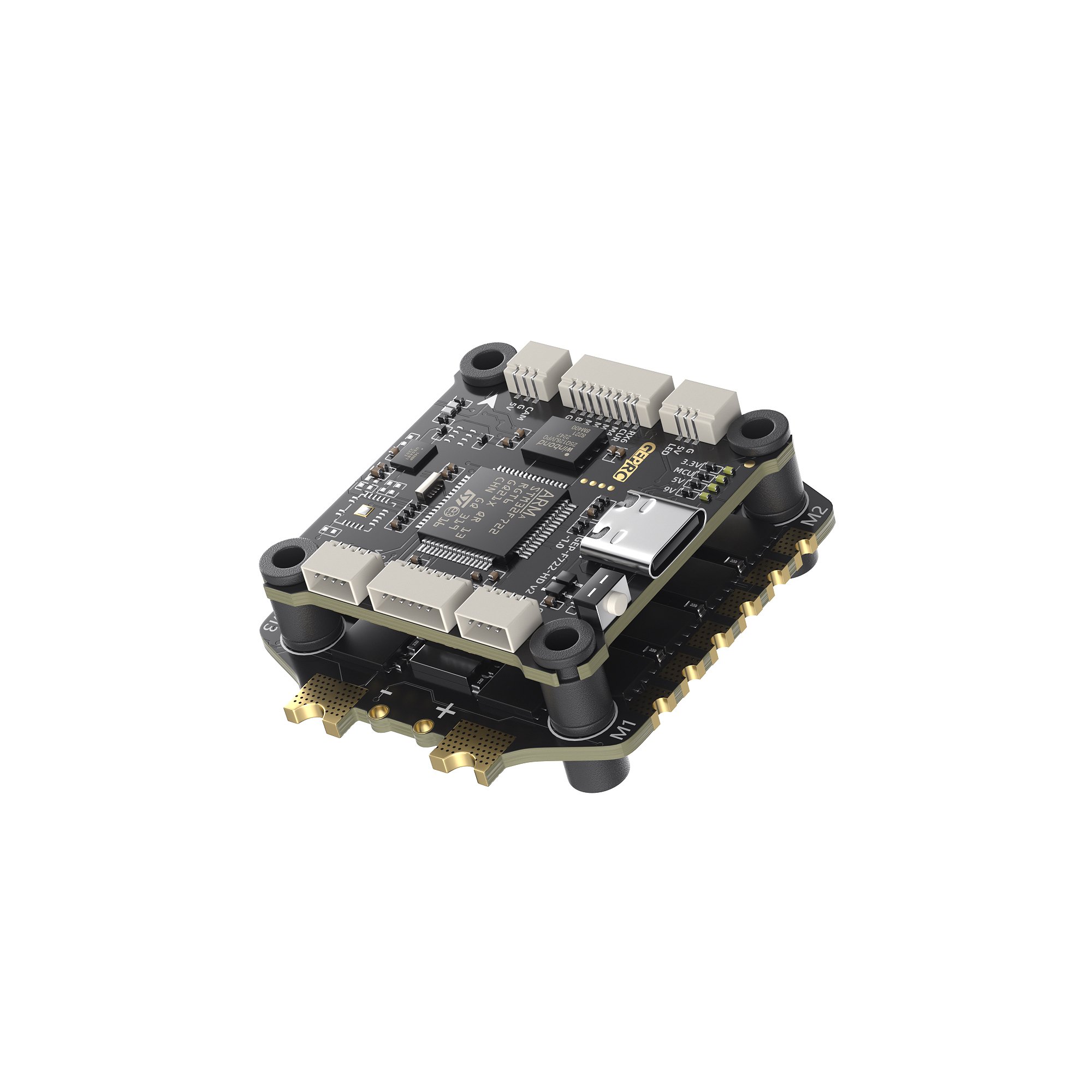

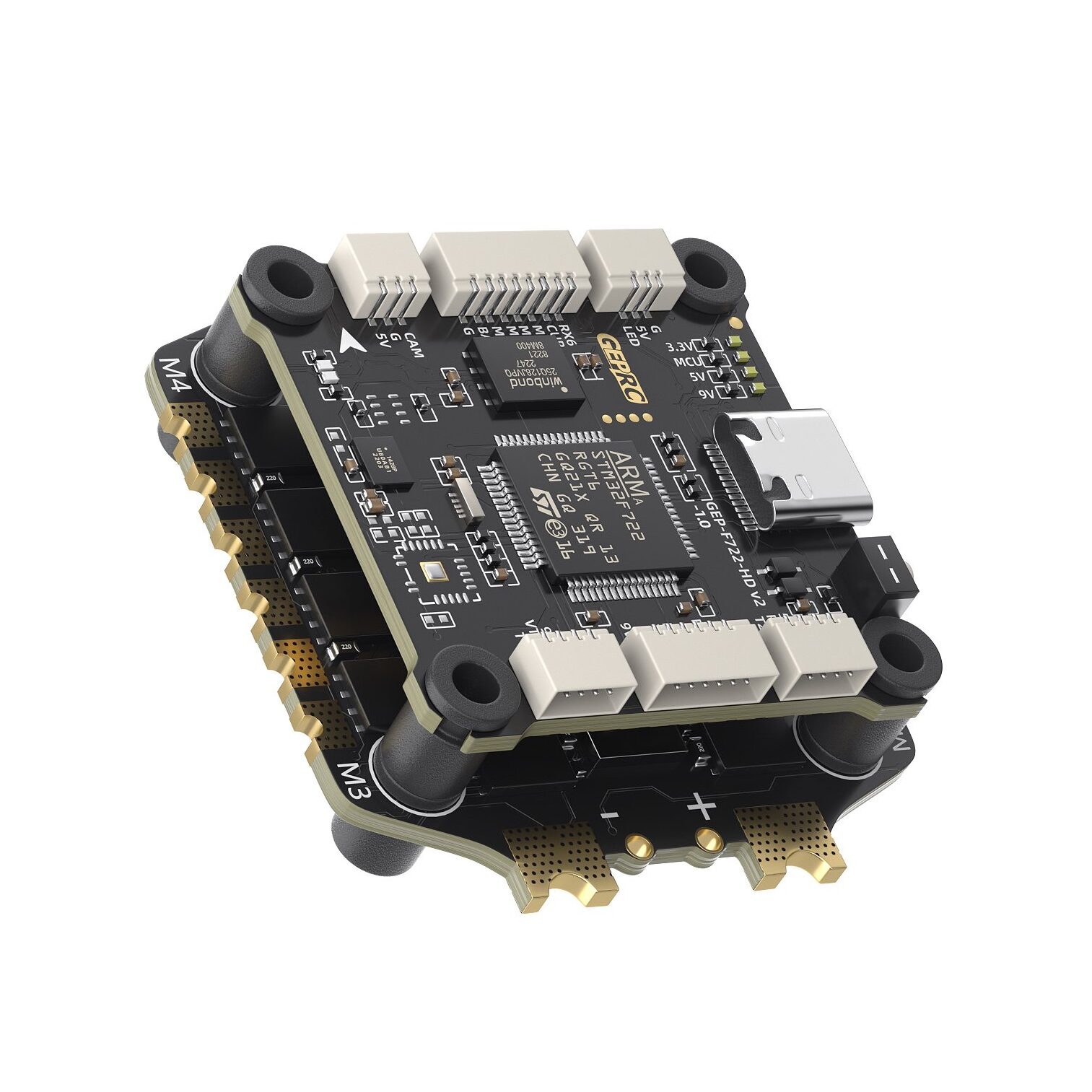

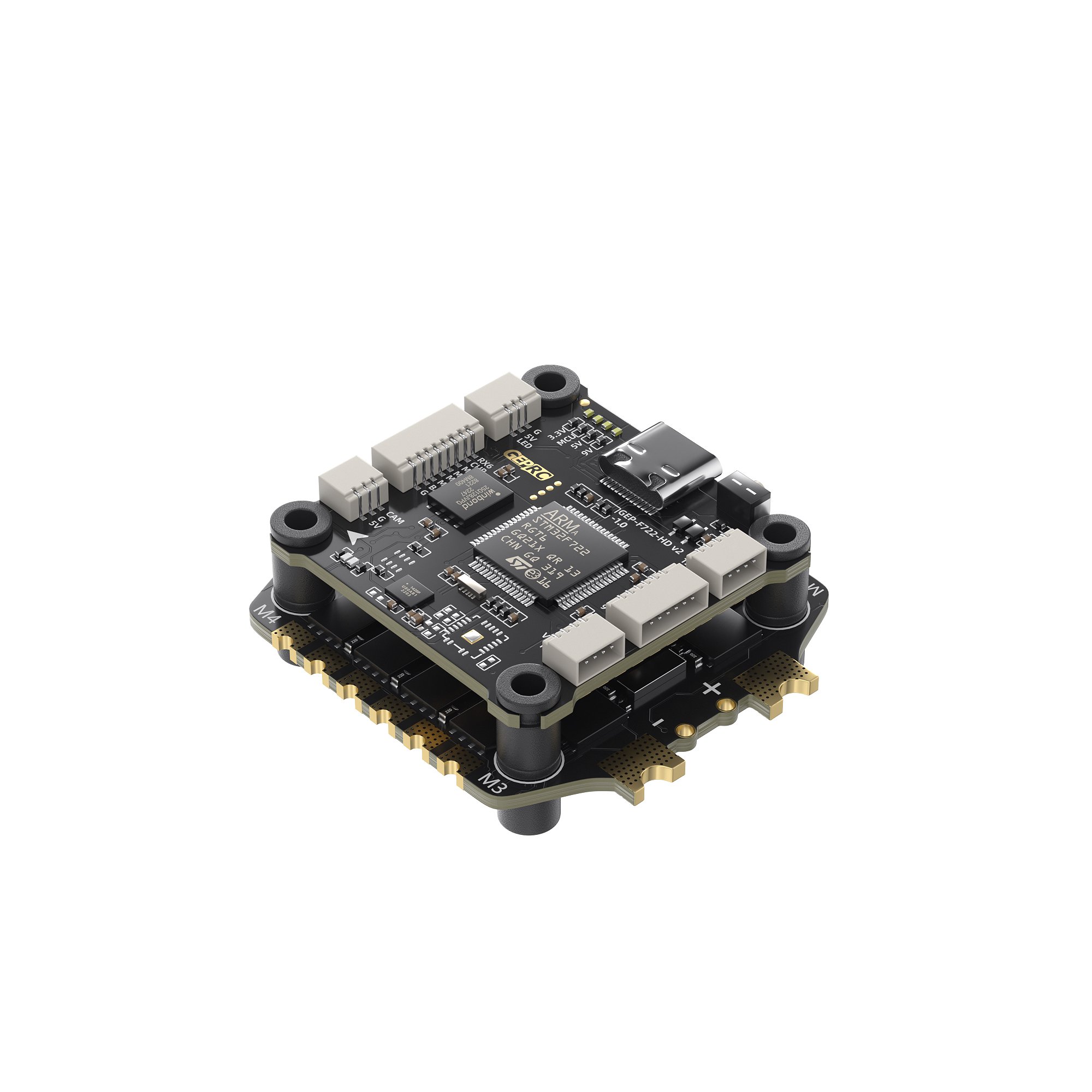

The GEPRC TAKER F722 BLS 65A V2 Stack combines a high-speed F722 Flight Controller with a powerful 65A FPV Stack. Designed for professional Racing Drone Electronics, this kit offers extreme stability and 3-6S power support for elite FPV builds.

The GEPRC TAKER F722 BLS 65A V2 Stack is a high-performance power system designed for serious FPV pilots. At its heart, the STM32F722RET6 MCU powers the F722 Flight Controller, delivering lightning-fast processing and low latency for elite-level Racing Drone Electronics. This 65A FPV Stack ensures that every command is executed with precision, making it an ideal choice for both technical freestyle and aggressive racing.

Equipped with the TAKER G65A V2 8-bit 65A ESC, this unit provides a reliable 65A continuous current to handle high-performance motors on 3-6S LiPo batteries. Stability is maintained by the low-noise ICM42688-P gyroscope, which ensures smooth flight characteristics even in challenging environments. With its dual BEC system providing 5V/3A and 9V/2.5A, the GEPRC TAKER F722 BLS provides clean power to your VTX and peripherals. Featuring 16MB of Blackbox storage and a standard 30.5x30.5mm mounting pattern, this stack offers the durability and advanced technology needed for professional FPV builds.

Uses the mainstream STM32F722 chip
Equipped with the latest 42688-P gyroscope
16M onboard black box storage
Integrated LC filter
Upgraded Type-C USB interface
Directly plugs into the DJI Air Unit
Paired with the TAKER H65_8S_BLS 65A 4IN1 ESC, providing a smooth flying experience
Simple and efficient installation method with shock absorbers for stable gyroscope performance
Dual independent BECs: 9V@2.5A and 5V@3A

Specifications

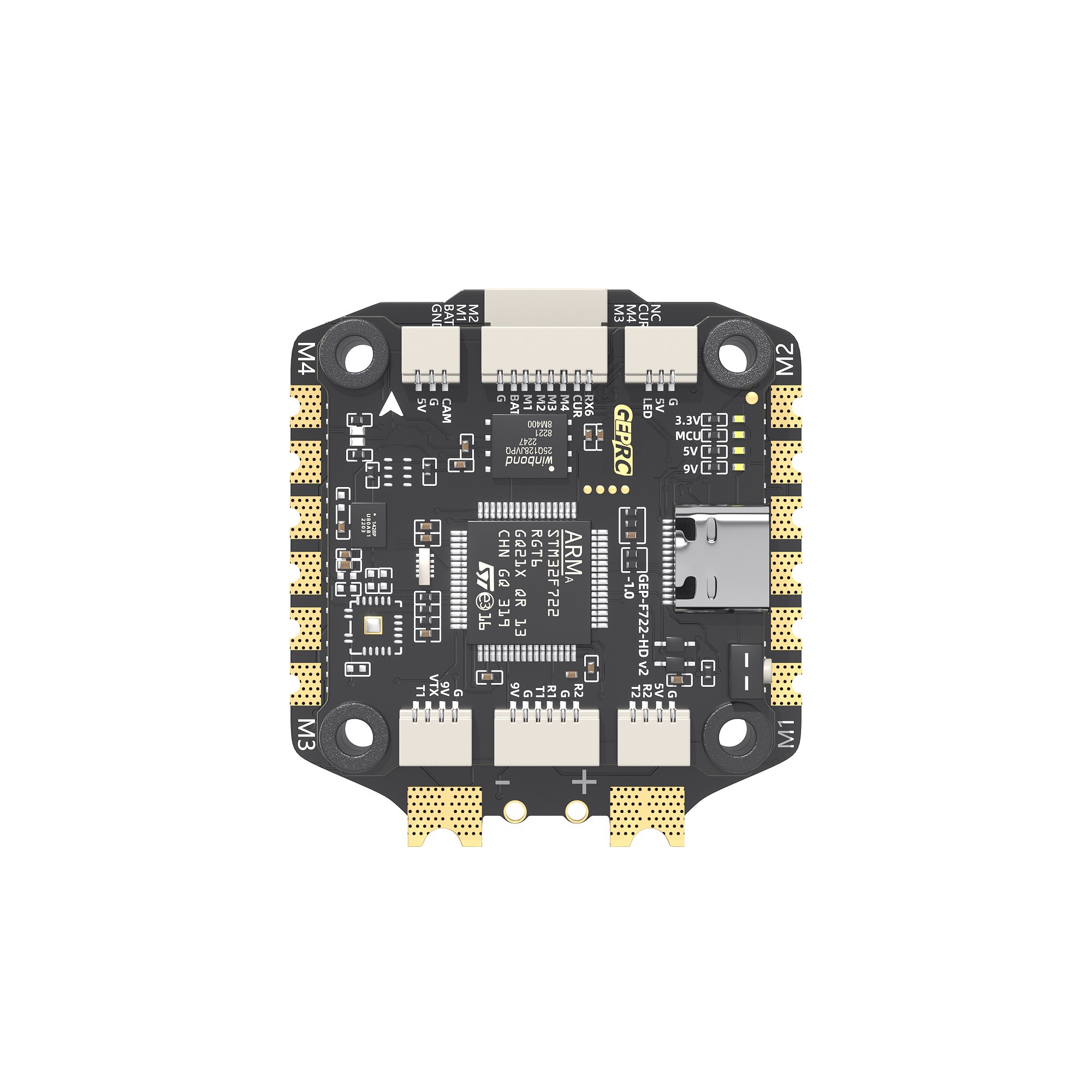

GEP-F722-HD v2 Flight Controller

MCU: STM32F722
IMU: ICM42688-P(SPI)
Air Unit Connection: Direct plug-in to DJI Air Unit
Black Box:16M onboard
USB Interface: Type-C
Barometer: supported
OSD: BetaFlight OSD w/ AT7456E chip
BEC: 5V@3A,9V@2.5A dual BEC
Firmware Target: GEPRCF722
Dimension: 36.85×36.85mm, mounting hole size 30.5×30.5mm，φ4mm hole becomes φ3mm after using a silicone shock-absorbing circle.
Input Voltage: 3-6S LiPo
UART: 5
Power Filter: Integrated LC filter
Weight: 8.1g

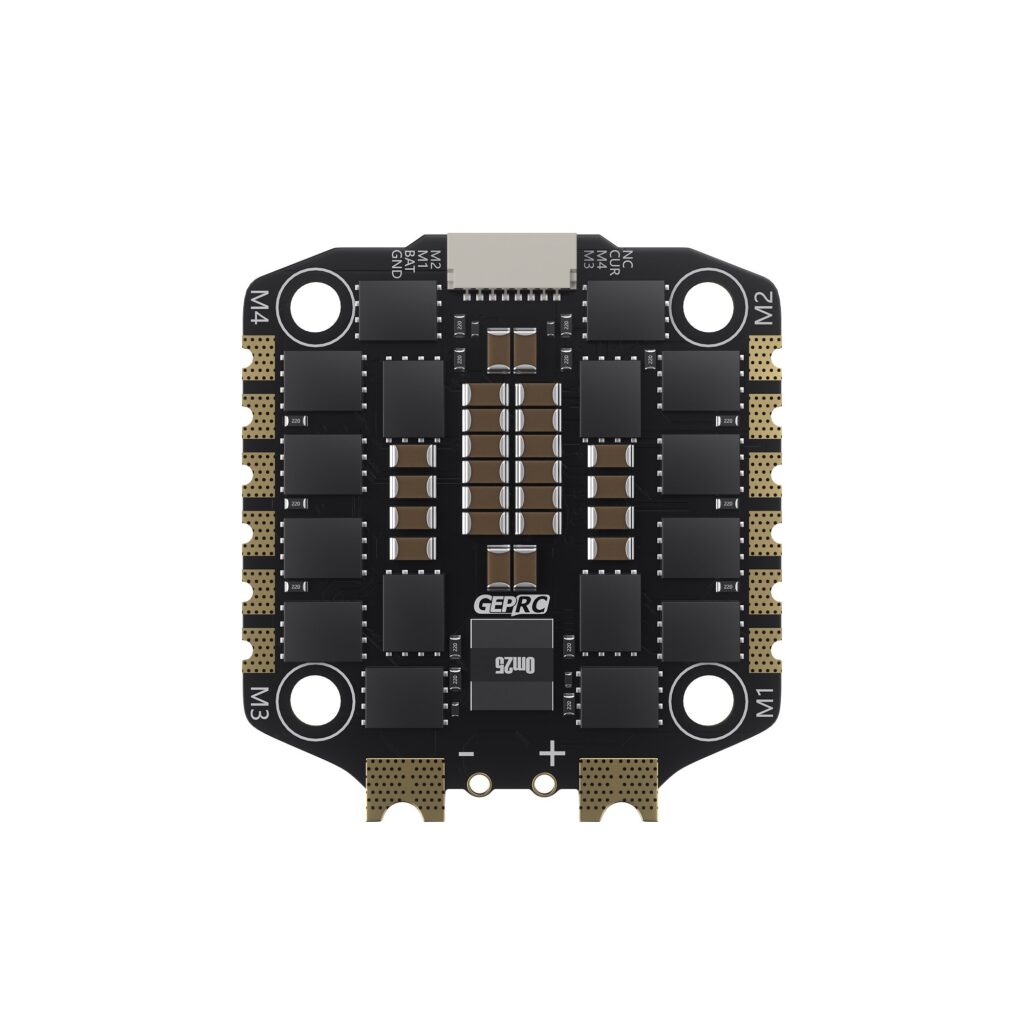

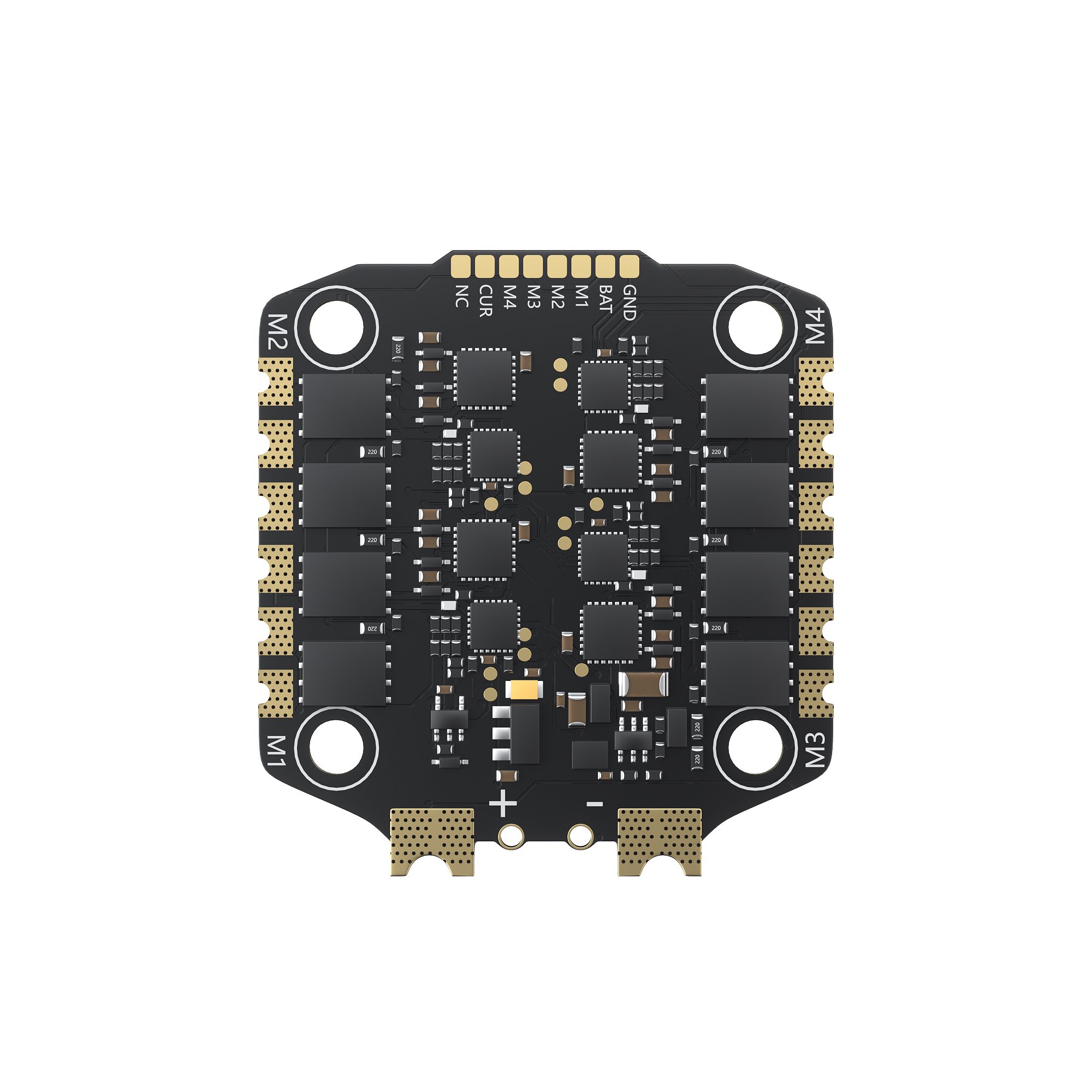

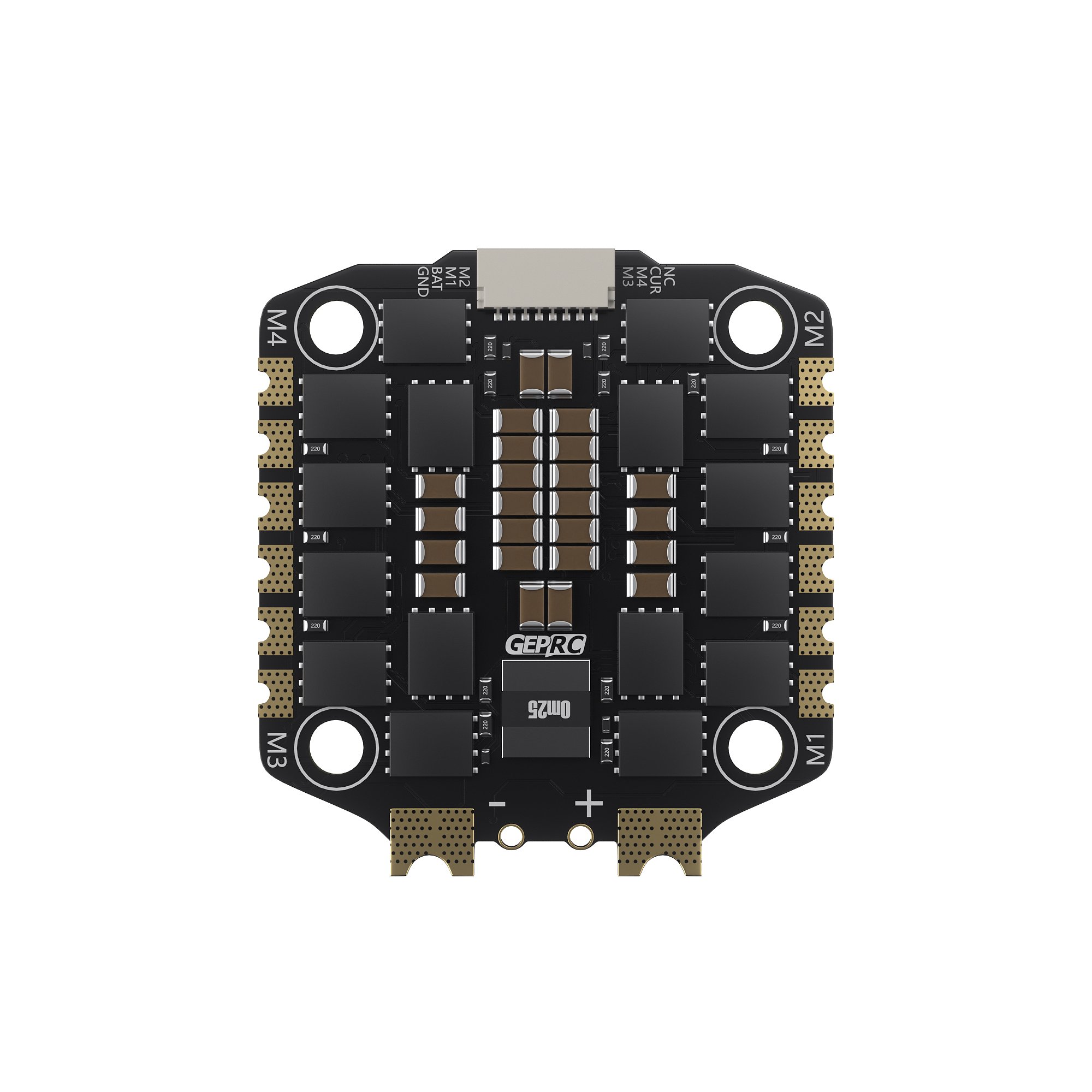

TAKER H65_8S_BLS 65A 4IN1 ESC

Input Voltage: 3-8S Lipo
Ammeter: Supported
Continuous Current：65A
Burst Current：70A（5 seconds）
Support Protocol: Dshot 150/300/600
Dimension：42×45.7mm,mounting hole size30.5×30.5mm，φ4mm hole becomes φ3mm after using the silicone shock-absorbing ring.
Weight: 14.9g
Firmware Target: B_X_30

Includes

1 x FC board

1 x ESC board

1 x Capacitor

1 x DJI Air Unit adapter cable

1 x Flight controller adapter cable

1 x XT60 power cable

4 x M3*30 screws

4 x M3*25 screws

8 x Nylon nuts

8 x Silicone anti-shake pads

2 x sh1.0 4pin silicone cable

1 x Camera connection cable
