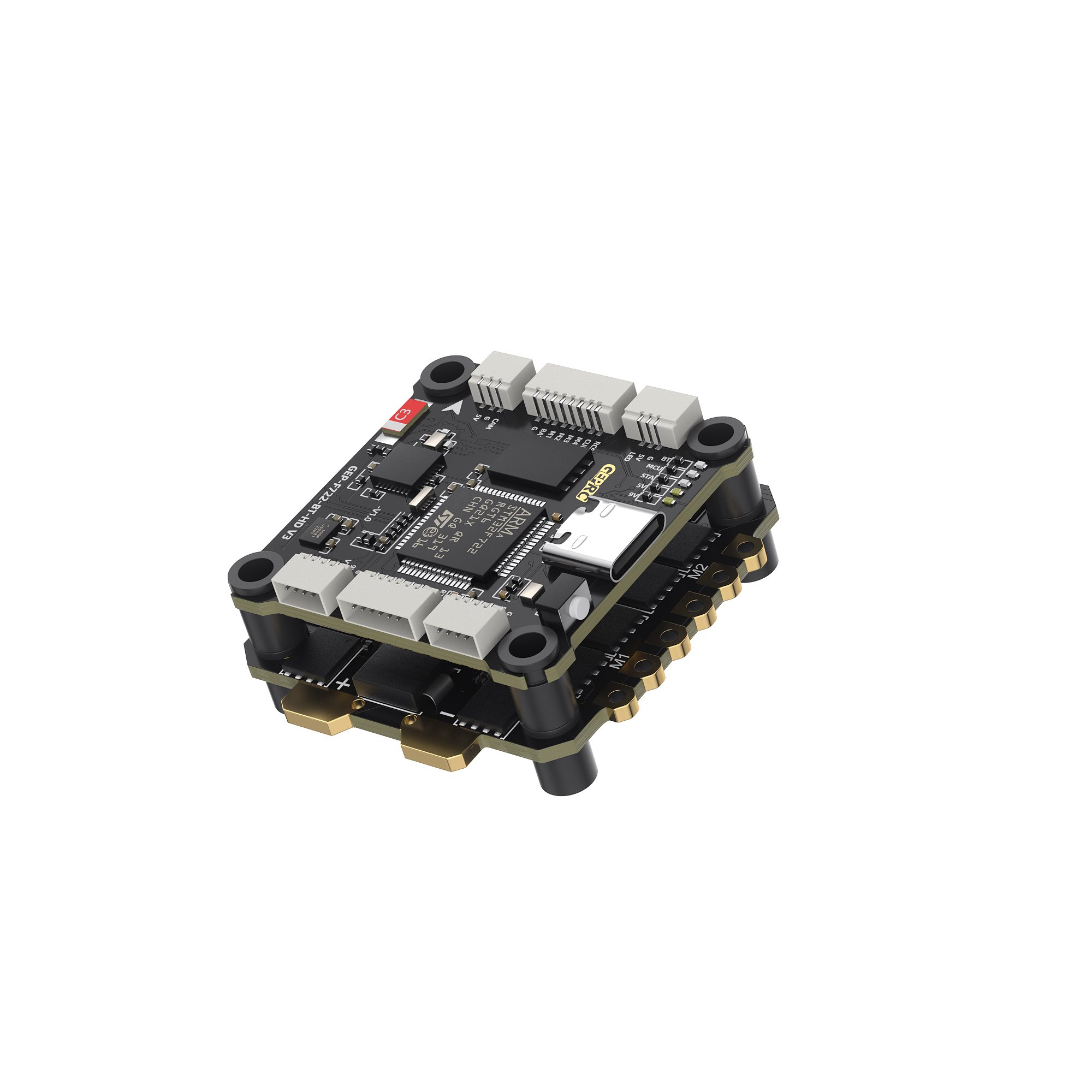

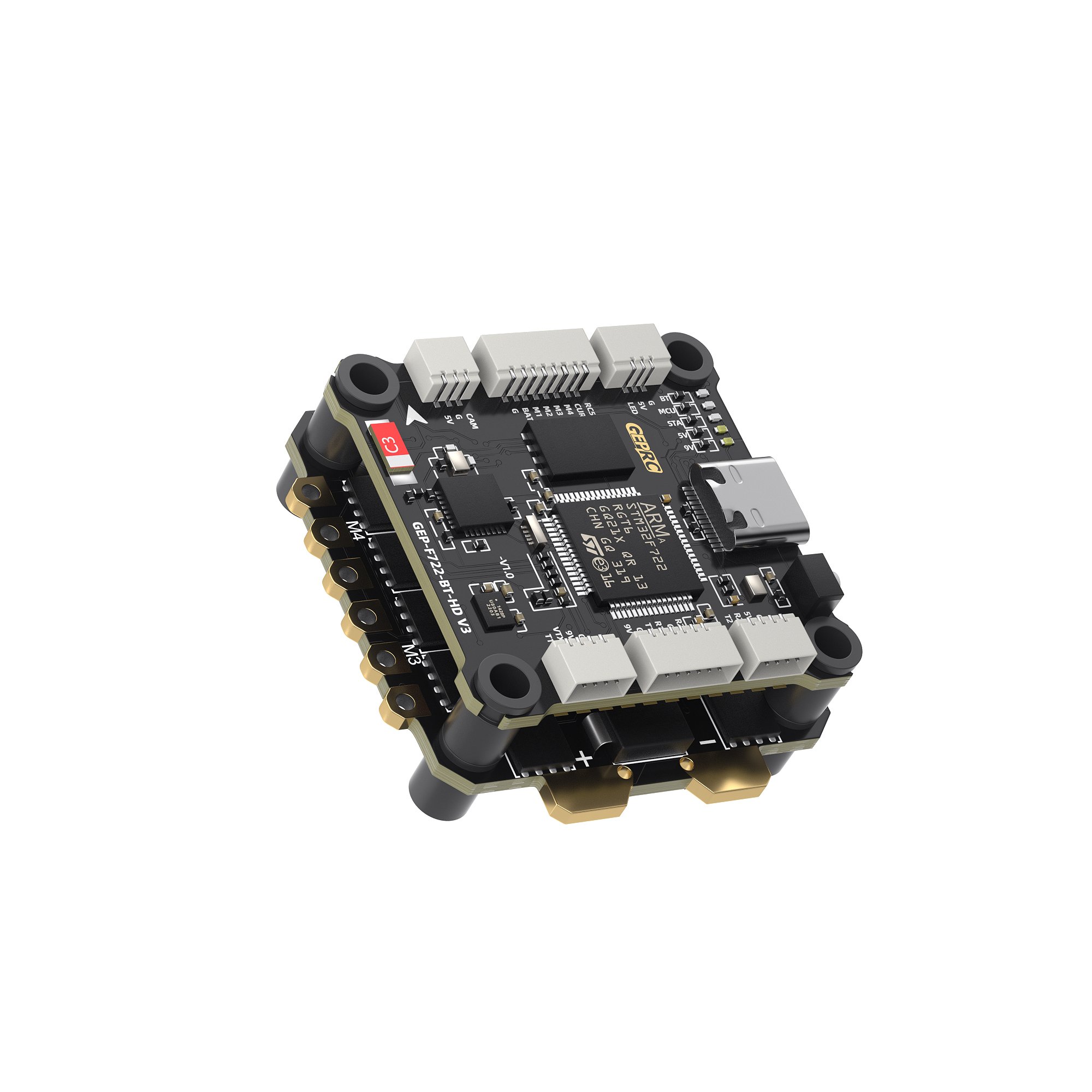

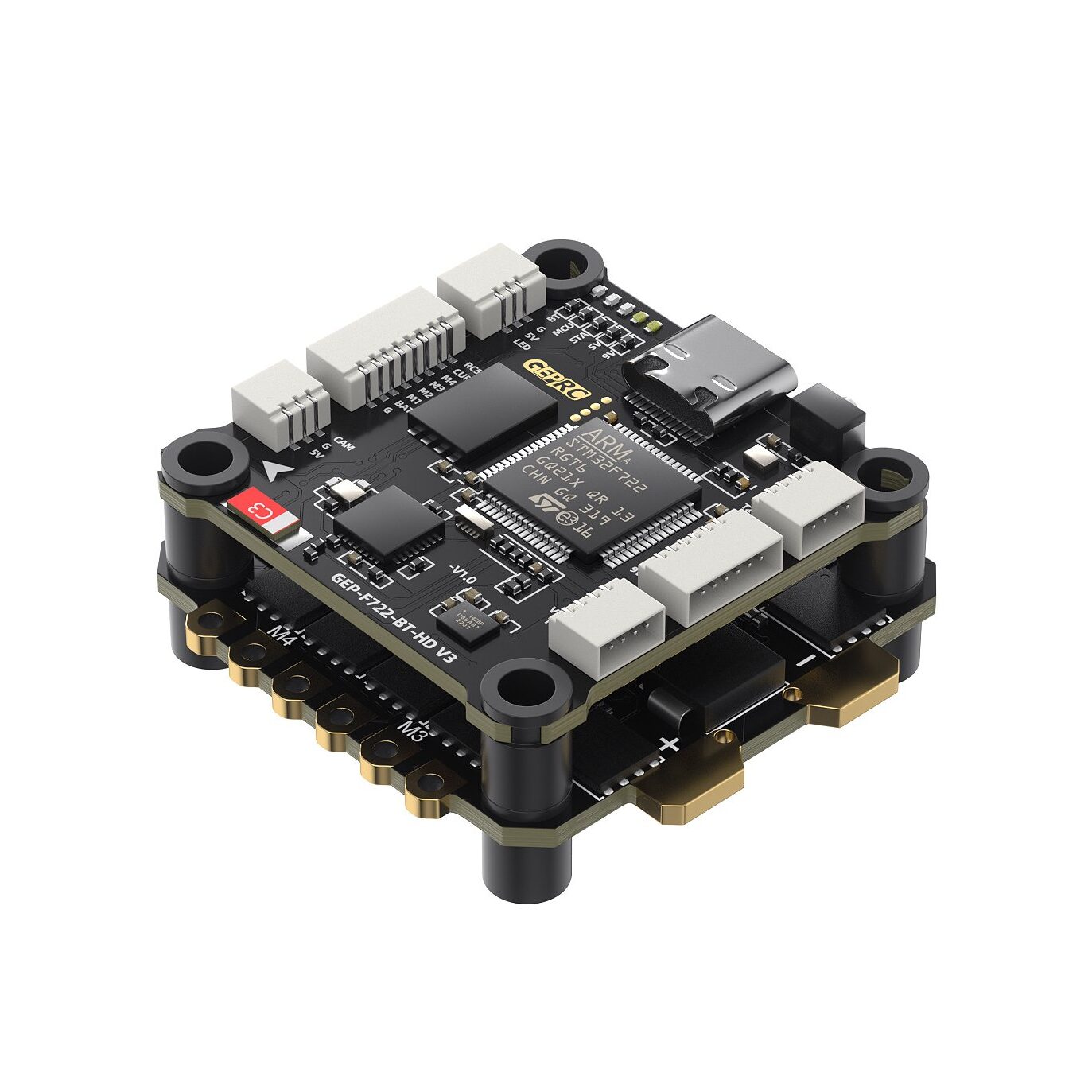

GEPRC TAKER F722 BT 50A Stack – Pro Racing Drone Electronics

Original price was: $129.99.Current price is: $108.80.

Customer Reviews

★★★★★
★★★★★
5.0 out of 5
32 global ratings
MODEL:
  • High-speed STM32F722 MCU for precise control.
  • 50A 32-bit ESC with BLHeli_32 firmware.
  • Integrated Bluetooth for wireless app tuning.
  • Stable ICM42688-P low-noise gyroscope sensor.
  • Dual BEC outputs: 5V/3A and 9V/2.5A.
  • Standard 30.5×30.5mm mounting for easy setup.

Elevate your flight performance with the GEPRC TAKER F722 BT 50A Stack. This high-speed F722 Flight Controller paired with a 32-bit 50A ESC offers elite stability and wireless tuning for professional Racing Drone Electronics.

The GEPRC TAKER F722 BT 50A Stack is a high-performance power system meticulously engineered for serious FPV pilots. At its heart, the high-speed STM32F722 processor powers the F722 Flight Controller, providing the lightning-fast calculations and low latency required for elite-level Racing Drone Electronics. This 50A FPV Stack ensures that every stick command is translated into smooth, precise movement, whether you are racing at high speeds or performing technical freestyle maneuvers.

This system features a robust 32-bit 50A ESC running BLHeli_32 firmware, delivering superior efficiency and a highly responsive throttle feel. A standout feature of the GEPRC TAKER F722 BT is its integrated Bluetooth module, allowing pilots to tune PIDs and adjust settings wirelessly in the field via smartphone applications—no USB cable required.

Stability is guaranteed by the low-noise ICM42688-P gyroscope, which filters out unwanted vibrations for a locked-in feel. With a dual BEC system providing 5V/3A and 9V/2.5A, it reliably powers your high-output VTX and other peripherals. For those seeking a reliable and advanced 32-bit 50A ESC and flight control combo, this stack provides the perfect foundation for any modern FPV rig.

1. Use mainstream STM32F722 chip

2. Equipped with the latest 42688-P gyroscope

3. 512M black box storage

4. Support Bluetooth parameter tuning

5. Integrated LC filter

6. Upgrade type-C USB interface

7.With GEP-BL32 50A 96K 4IN1 32Bit ESC, silky flight

8. Directly plugs into the DJI Air Unit

9. Simple and effective installation with shock-absorbing mounts for stable gyroscope performance

10. Integrated Barometer

11. 9V@2.5A + 5V@3A dual independent BEC

Specifications

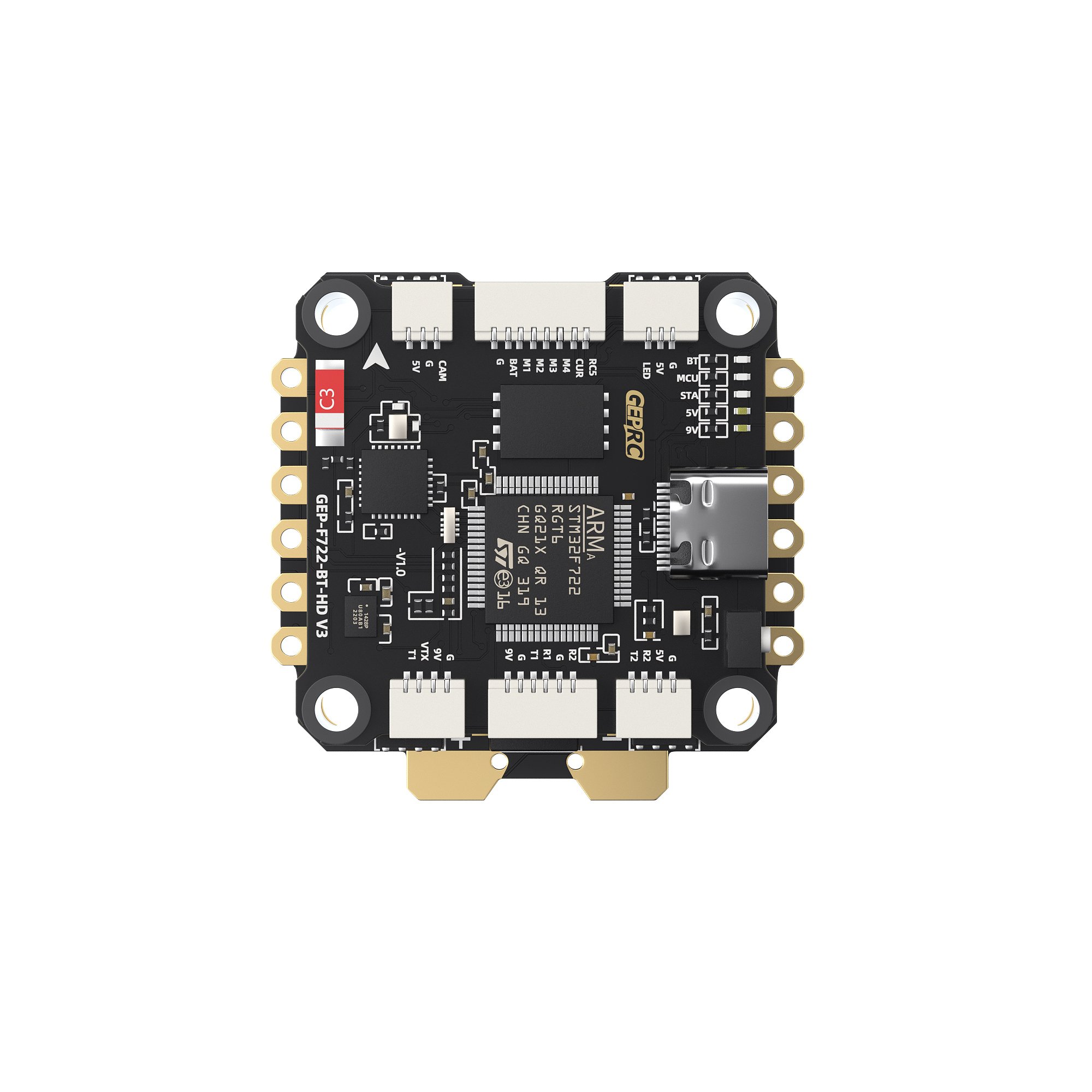

GEP-F722-BT-HD V3 Flight Controller

  • MCU: STM32F722
  • IMU: ICM42688-P(SPI)
  • Air Unit Connection: Directly plugs into the DJI Air Unit
  • Black Box: 512M onboard
  • Bluetooth: Supported
  • Barometer: Supported
  • USB Interface: Type-C
  • OSD: BetaFlight OSD w/ AT7456E chip
  • BEC: 5V@3A, 9V@2.5A dual BEC
  • Firmware Target: GEPRCF722_BT_HD_V3
  • Size: 36.9×36.9mm, hole: 30.5×30.5mm, φ4mm hole becomes φ3mm after using a silicone shock-absorbing ring
  • Input Voltage: 3-6S LiPo
  • UART: 5 groups (UART4 fixed for Bluetooth)
  • Power Filter: Integrated LC filter
  • Weight: 8.2g

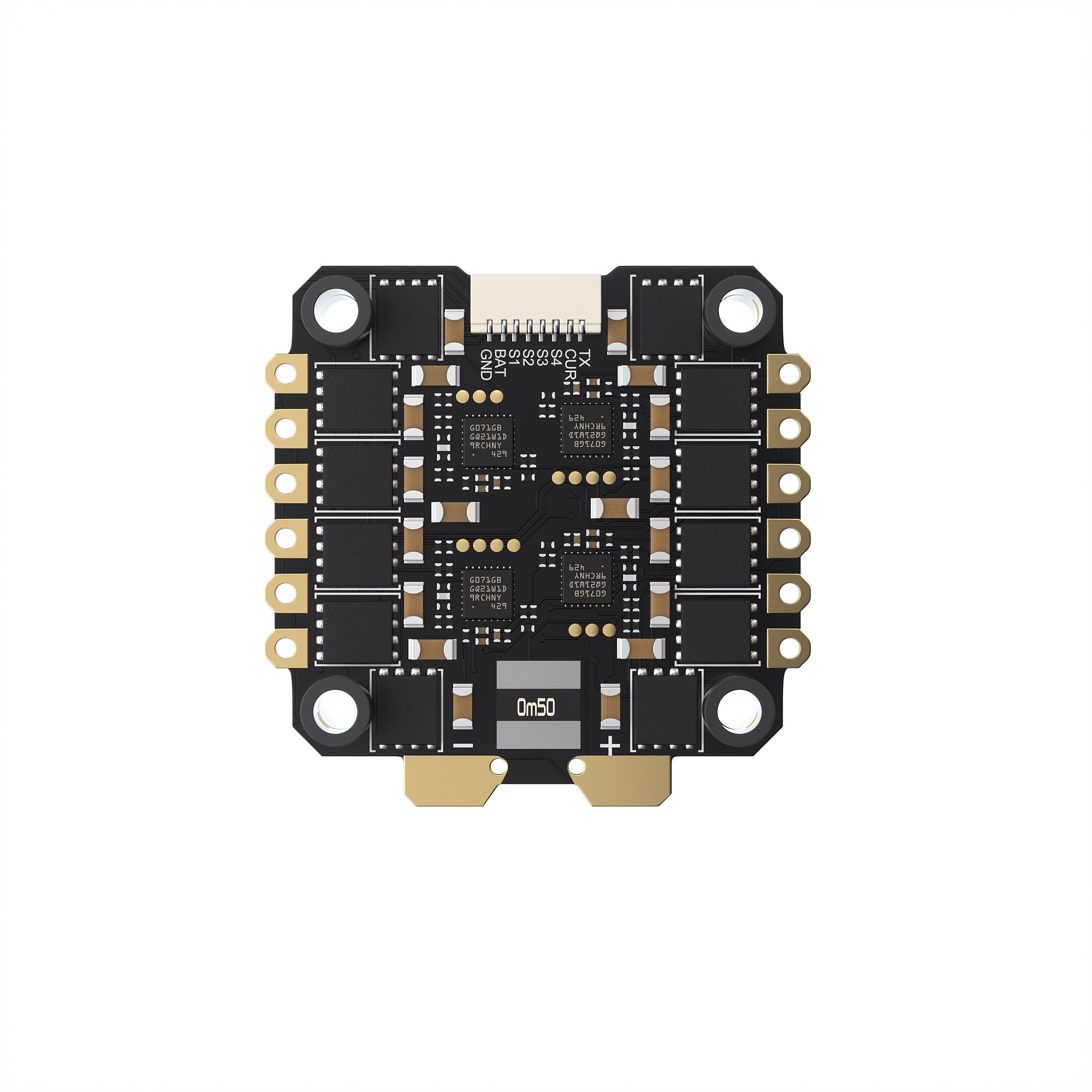

GEP-BL32 50A 96K 4IN1 ESC

  • Model: GEP-BL32 50A 96K 4IN1 ESC
  • Input Voltage: 3-6S Lipo
  • Continue Current: 50A
  • Burst Current: 55A (5 second)
  • Galvanometer: Support
  • Telemetry: Support
  • Support Protocol: Dshot 150/300/600
  • Size: 42.5×42.1mm,hole30.5×30.5mm
  • Weight: 14g
  • Target: ST_G0_05 – 31.92

Includes

1 x FC board

1 x ESC board

1 x Capacitor

1 x O3 3-in-1 connection cable

1 x FC adapter cable

1 x sh1.0 4pin silicone cable

1 x Camera connection cable

1 x VTX connection cable

1 x XT60 power cable

4 x M3*30 screws

4 x M3*25 screws

8 x Nylon nuts

12 x Silicone anti-shake pads
