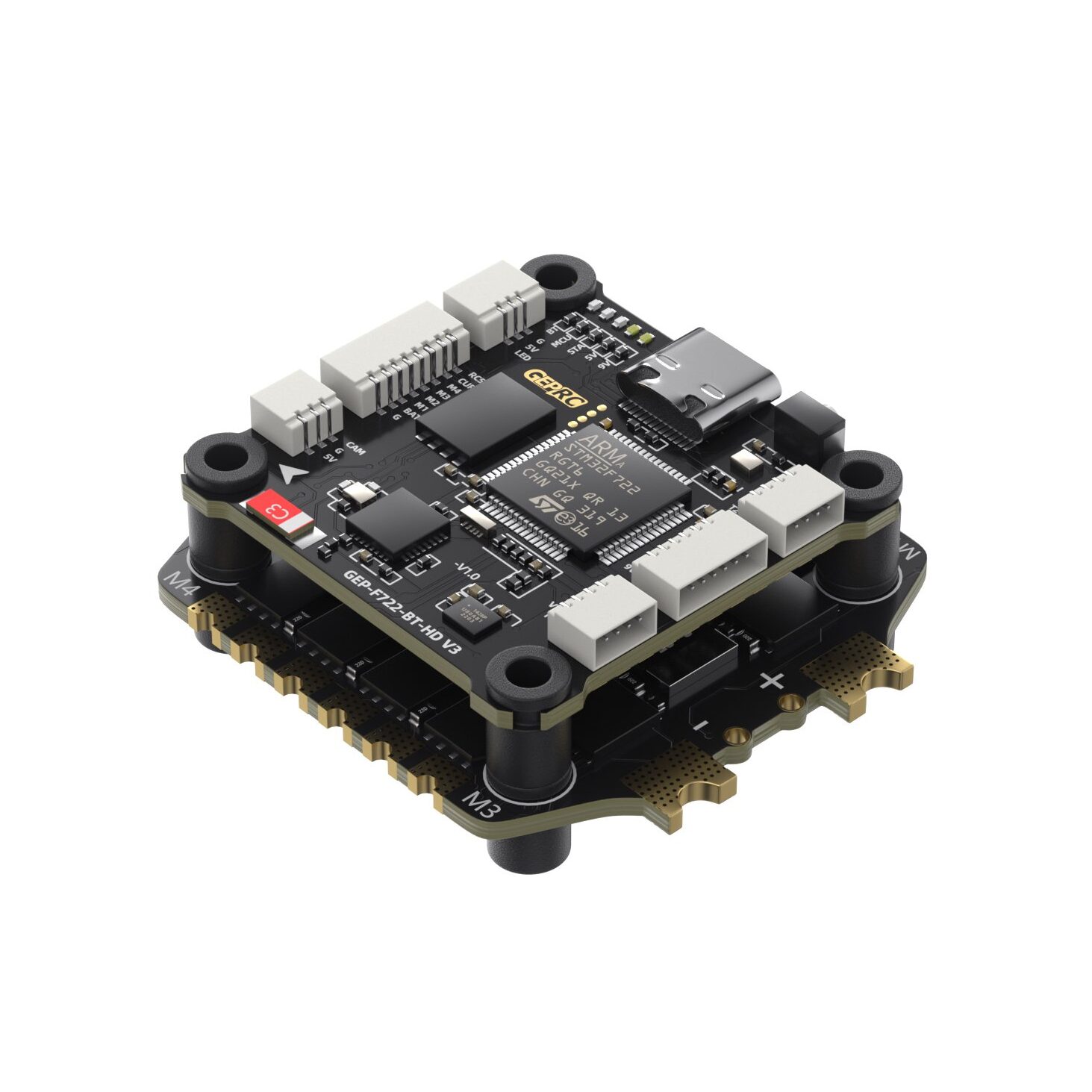

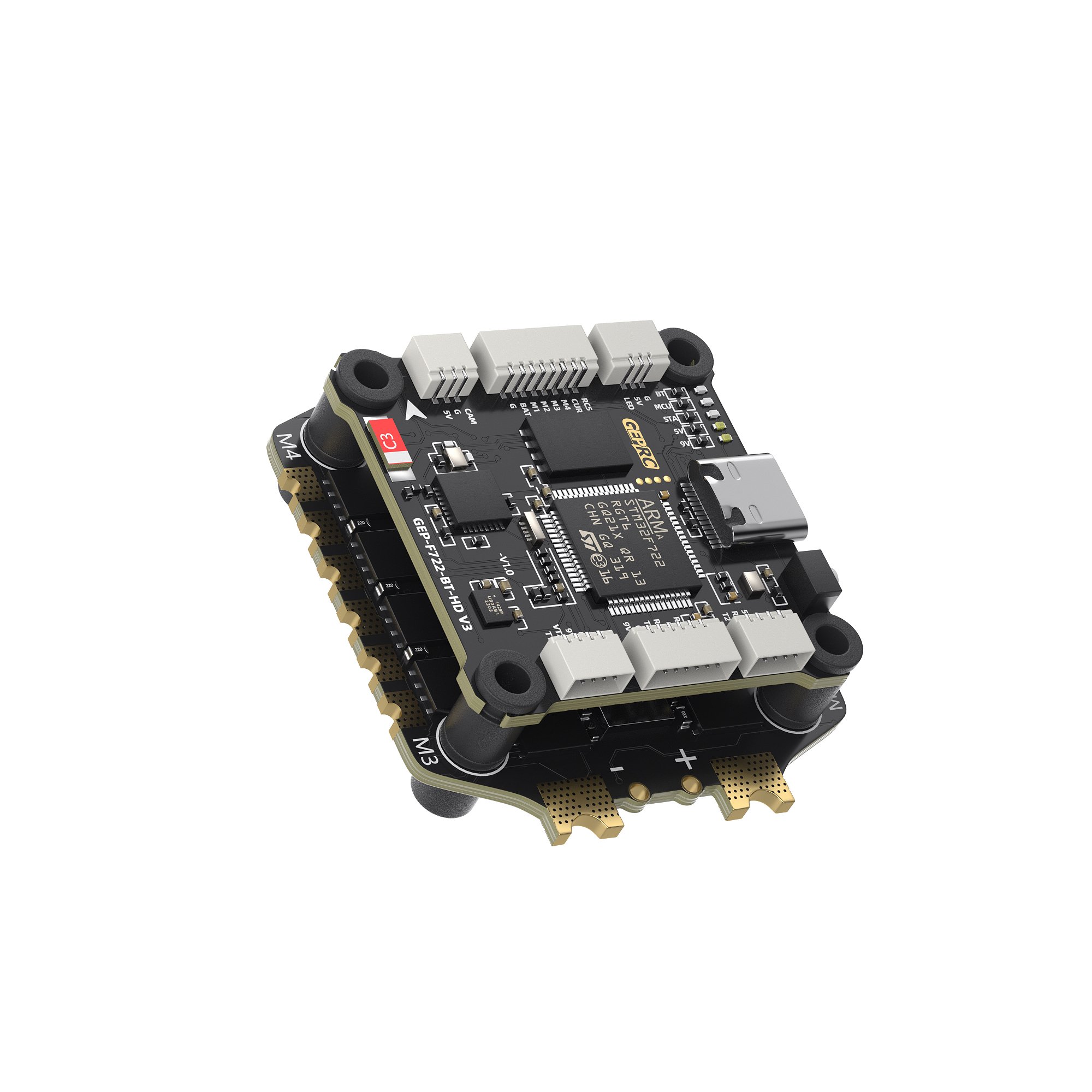

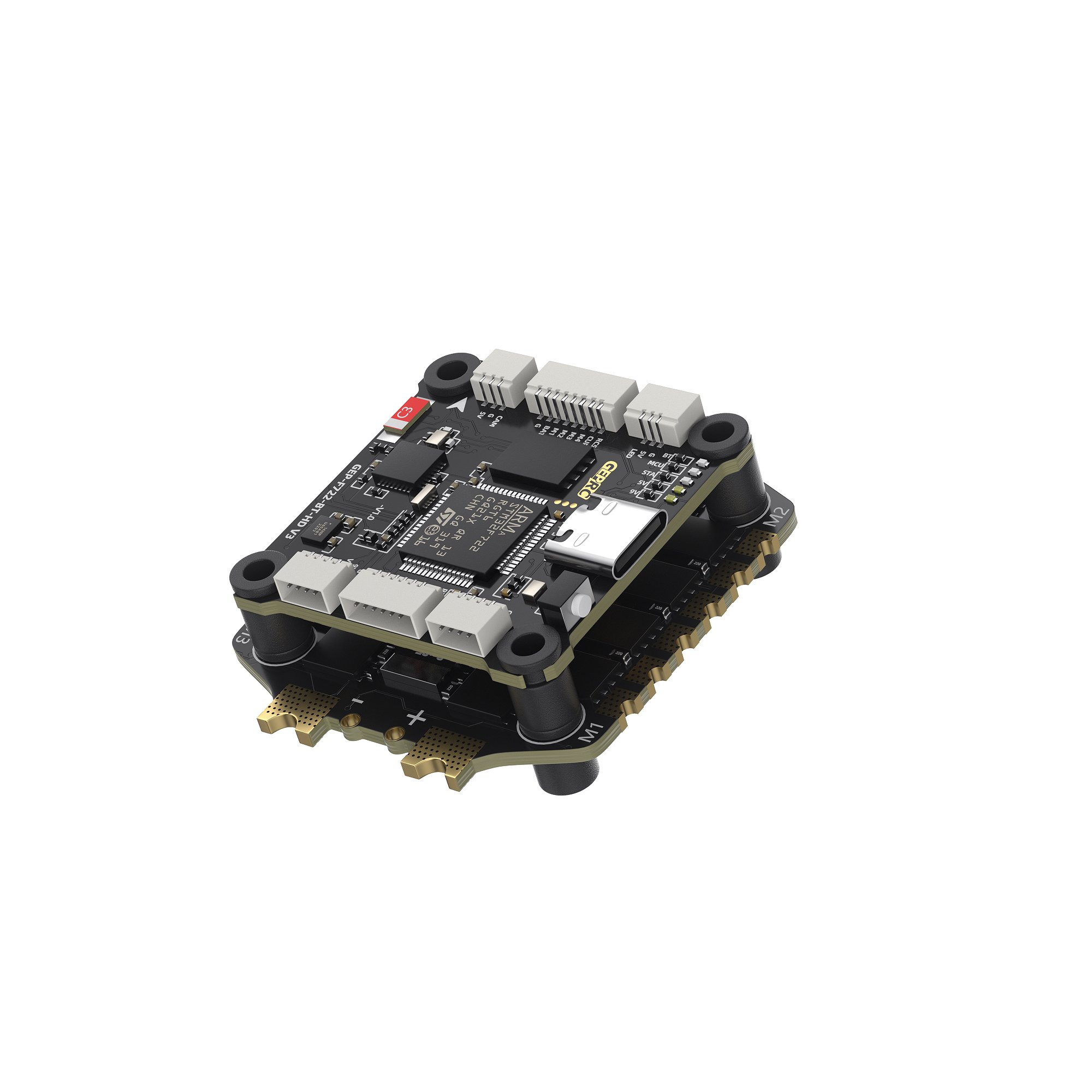

GEPRC TAKER F722 BT 60A Stack – High-Speed Racing Drone Electronics

Original price was: $99.99.Current price is: $98.99.

Customer Reviews

★★★★★
★★★★★
5.0 out of 5
58 global ratings
  • High-speed STM32F722 MCU for precise control.
  • Robust 60A 8-bit ESC with 70A burst support.
  • Built-in Bluetooth for wireless App tuning.
  • Stable ICM42688-P low-noise gyroscope sensor.
  • Dual BEC outputs: 5V/3A and 9V/2.5A.
  • Large 16MB Blackbox for flight data logging.

Unlock elite flight performance with the GEPRC TAKER F722 BT 60A Stack. Combining a high-speed F722 Flight Controller with a reliable 8-bit 60A ESC, this 60A FPV Stack offers seamless wireless tuning and extreme stability for professional Racing Drone Electronics.

The GEPRC TAKER F722 BT 60A Stack is engineered for FPV pilots who demand a perfect balance of processing speed and raw power. At its heart lies the STM32F722 MCU, making this F722 Flight Controller exceptionally fast and responsive, handling complex flight maneuvers with ease. Paired with the TAKER G60A 8-bit 60A ESC, the system ensures a consistent 60A current flow and a smooth throttle feel, setting a high standard for modern Racing Drone Electronics.

Precision is key to a great flight, which is why this 60A FPV Stack utilizes the ICM42688-P gyroscope for low-noise performance and vibration resistance. A standout feature is the integrated Bluetooth module, allowing you to calibrate and tune your settings wirelessly on the field via smartphone apps—no more searching for USB cables. With a robust dual BEC system providing 5V/3A and 9V/2.5A, the GEPRC TAKER F722 BT provides clean and stable power to your high-output VTX and peripheral receivers. Whether you are building a freestyle ripper or a specialized racing drone, this stack provides the reliability and advanced technology needed to dominate the air.

Features

1. Use mainstream STM32F722 chip

2. Equipped with the latest 42688-P gyroscope

3. 512M black box storage

4. Support Bluetooth parameter tuning

5. Integrated LC filter

6. Upgrade type-C USB interface

7. With TAKER H60_BLS 60A 4IN1 ESC, silky flight

8. Directly plugs into the DJI Air Unit

9. Simple and effective installation with shock-absorbing mounts for stable gyroscope performance

10. Integrated Barometer

11. 9V@2.5A + 5V@3A dual independent BEC

Specifications

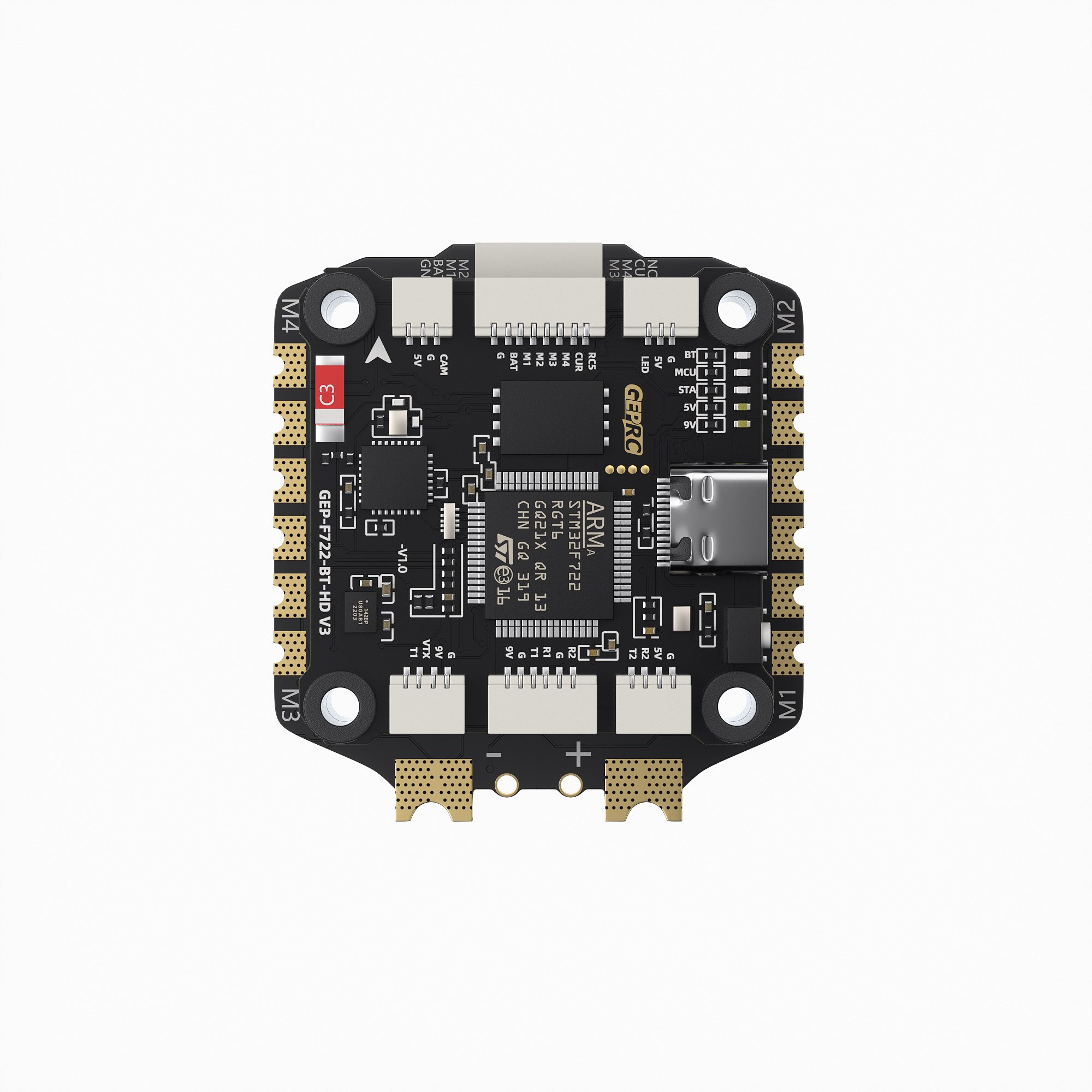

GEP-F722-BT-HD V3 Flight Controller

  • MCU: STM32F722
  • IMU:ICM42688-P(SPI)
  • Air Unit Connection: Directly plugs into the DJI Air Unit
  • Black Box: 512M onboard
  • Bluetooth: Supported
  • Barometer: Supported
  • USB Interface: Type-C
  • OSD: BetaFlight OSD w/ AT7456E chip
  • BEC: 5V@3A, 9V@2.5A dual BEC
  • Firmware Target: GEPRCF722_BT_HD_V3
  • Size: 36.9×36.9mm, hole: 30.5×30.5mm, φ4mm hole becomes φ3mm after using a silicone shock-absorbing ring
  • Input Voltage: 3-6S LiPo
  • UART: 5 groups (UART4 fixed for Bluetooth)
  • Power Filter: Integrated LC filter
  • Weight: 8.2g

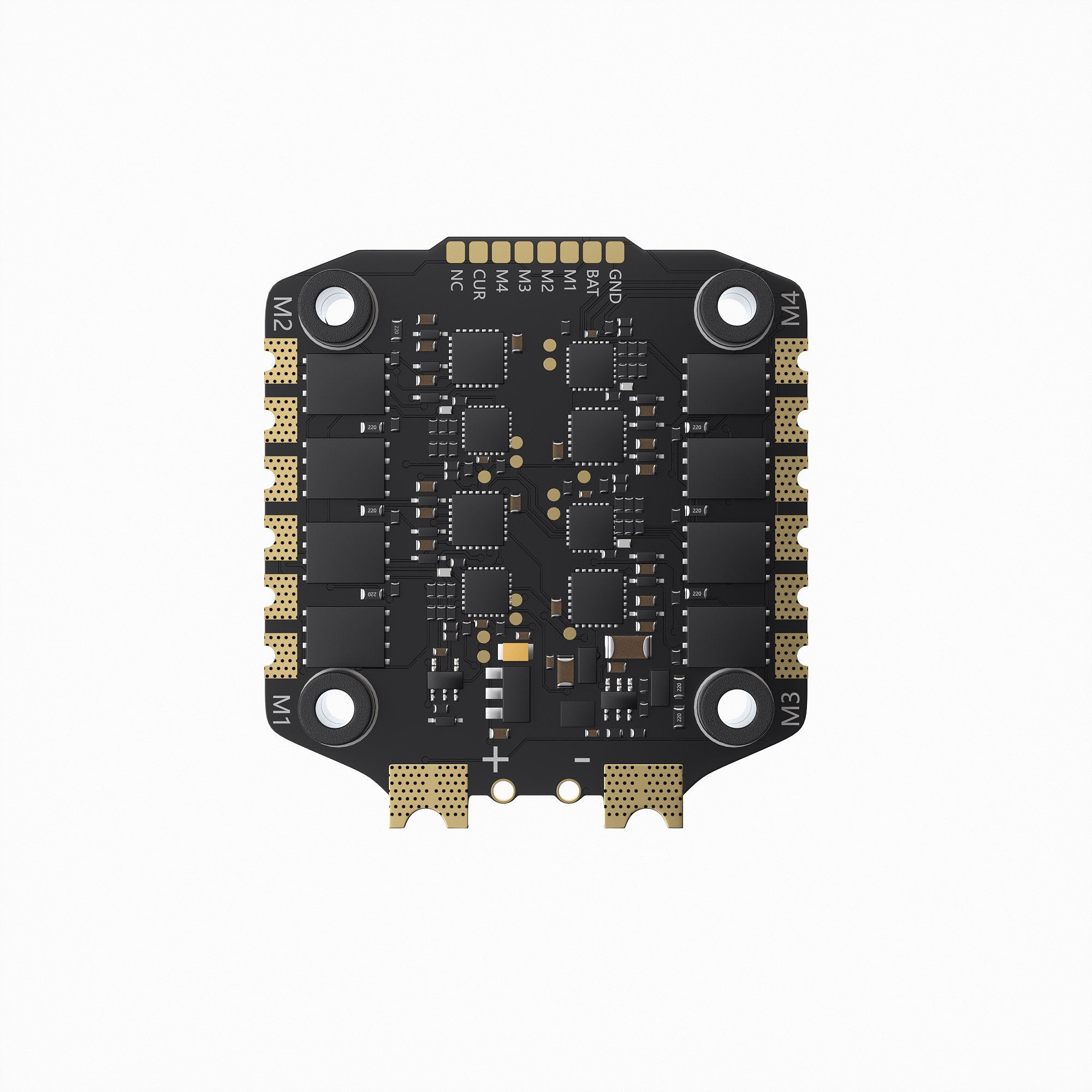

TAKER H60_BLS 60A 4IN1 ESC

  • Input Voltage: 3-6S Lipo
  • Ammeter: Support
  • Continue Current:60A
  • Burst Current: 65A (5 second)
  • Support Protocol: Dshot 150/300/600
  • Size: 42×45.7mm, hole: 30.5×30.5mm, φ4mm hole becomes φ3mm after using the silicone shock-absorbing ring
  • Weight: 14.9g
  • Target: B_X_30

 Includes

1 x FC board

1 x ESC board

1 x Capacitor

1 x O3 3-in-1 connection cable

1 x FC adapter cable

1 x sh1.0 4pin silicone cable

1 x Camera connection cable

1 x VTX connection cable

1 x XT90 power cable

4 x M3*30 screws

4 x M3*25 screws

8 x Nylon nuts

12 x Silicone anti-shake pads
