GEPRC TAKER F722 BT 65A Stack – Pro Racing Drone Electronics

Original price was: $98.99.Current price is: $96.80.

Customer Reviews

★★★★★
★★★★★
5.0 out of 5
33 global ratings
  • High-speed STM32F722 MCU for precise flight control.
  • Powerful 65A 8-bit ESC for consistent performance.
  • Integrated Bluetooth for easy wireless App tuning.
  • Low-noise ICM42688-P gyro for smooth stability.
  • Dual BEC outputs: 5V 3A and 9V 2.5A for VTX.
  • Large 16MB Blackbox for flight data analysis.

Enhance your FPV experience with the GEPRC TAKER F722 BT 65A Stack. This F722 Flight Controller and 8-bit 65A ESC combo offers professional 65A FPV Stack performance with convenient wireless tuning for elite Racing Drone Electronics.

The GEPRC TAKER F722 BT 65A Stack is a high-performance power system designed for serious FPV pilots. At its core, the high-speed STM32F722 processor powers the F722 Flight Controller, delivering lightning-fast calculations and the responsiveness required for elite-level Racing Drone Electronics. Paired with a robust 8-bit 65A ESC, this stack ensures steady power delivery and smooth throttle response across the entire flight range.

Designed for modern racing and freestyle builds, this 65A FPV Stack integrates a low-noise ICM42688-P gyroscope to provide superior flight stability. A key advantage of the GEPRC TAKER F722 BT is its built-in Bluetooth module, allowing you to tune PIDs and adjust settings wirelessly via smartphone apps in the field. With a dual BEC system providing 5V and 9V outputs, it reliably powers your high-power VTX systems. Whether you are building a new rig or upgrading, this 8-bit 65A ESC and flight controller combo provides the reliability and advanced features needed to dominate the air.

Feature

1. Use mainstream STM32F722 chip

2. Equipped with the latest 42688-P gyroscope

3. 512M black box storage

4. Support Bluetooth parameter tuning

5. Integrated LC filter

6. Upgrade type-C USB interface

7.With TAKER H65_8S_BLS 65A 4IN1 ESC, silky flight

8. Directly plugs into the DJI Air Unit

9. Simple and effective installation with shock-absorbing mounts for stable gyroscope performance

10. Integrated Barometer

11. 9V@2.5A + 5V@3A dual independent BEC

Specifications

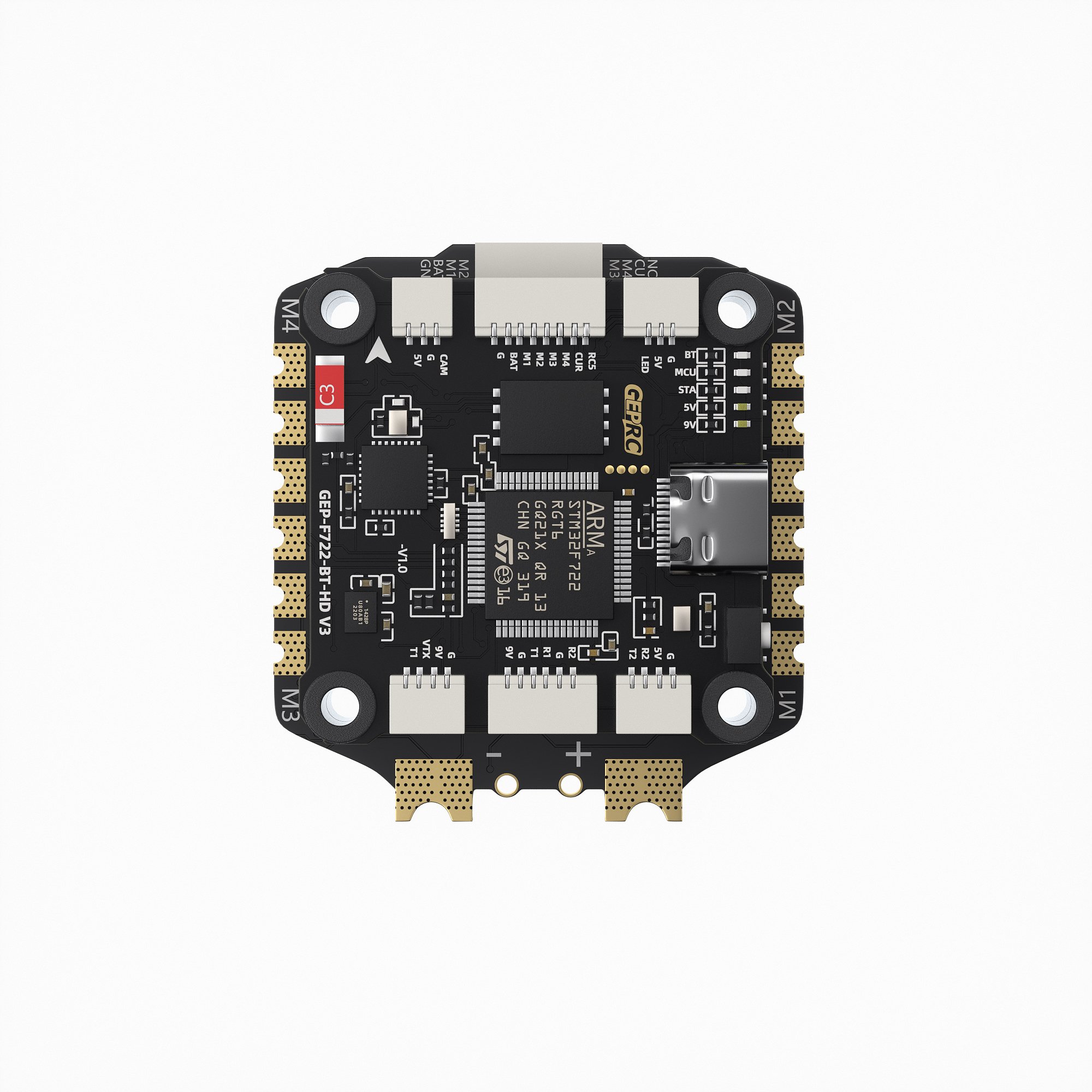

GEP-F722-BT-HD V3 Flight Controller

  • MCU: STM32F722
  • IMU:ICM42688-P(SPI)
  • Air Unit Connection: Directly plugs into the DJI Air Unit
  • Black Box: 512M onboard
  • Bluetooth: Supported
  • Barometer: Supported
  • USB Interface: Type-C
  • OSD: BetaFlight OSD w/ AT7456E chip
  • BEC: 5V@3A, 9V@2.5A dual BEC
  • Firmware Target: GEPRCF722_BT_HD_V3
  • Size: 36.9×36.9mm, hole: 30.5×30.5mm, φ4mm hole becomes φ3mm after using a silicone shock-absorbing ring
  • Input Voltage: 3-6S LiPo
  • UART: 5 groups (UART4 fixed for Bluetooth)
  • Power Filter: Integrated LC filter
  • Weight: 8.2g

TAKER H65_8S_BLS 65A 4IN1 ESC

  • Input Voltage: 3-8S Lipo
  • Ammeter: Support
  • Continue Current:65A
  • Burst Current: 70A (5 second)
  • Support Protocol: Dshot 150/300/600
  • Size: 42×45.7mm, hole: 30.5×30.5mm, φ4mm hole becomes φ3mm after using the silicone shock-absorbing ring
  • Weight: 14.9g
  • Target: B_X_30

Includes

1 x FC board

1 x ESC board

1 x Capacitor

1 x O3 3-in-1 connection cable

1 x FC adapter cable

1 x sh1.0 4pin silicone cable

1 x Camera connection cable

1 x VTX connection cable

1 x XT60 power cable

4 x M3*30 screws

4 x M3*25 screws

8 x Nylon nuts

12 x Silicone anti-shake pads
