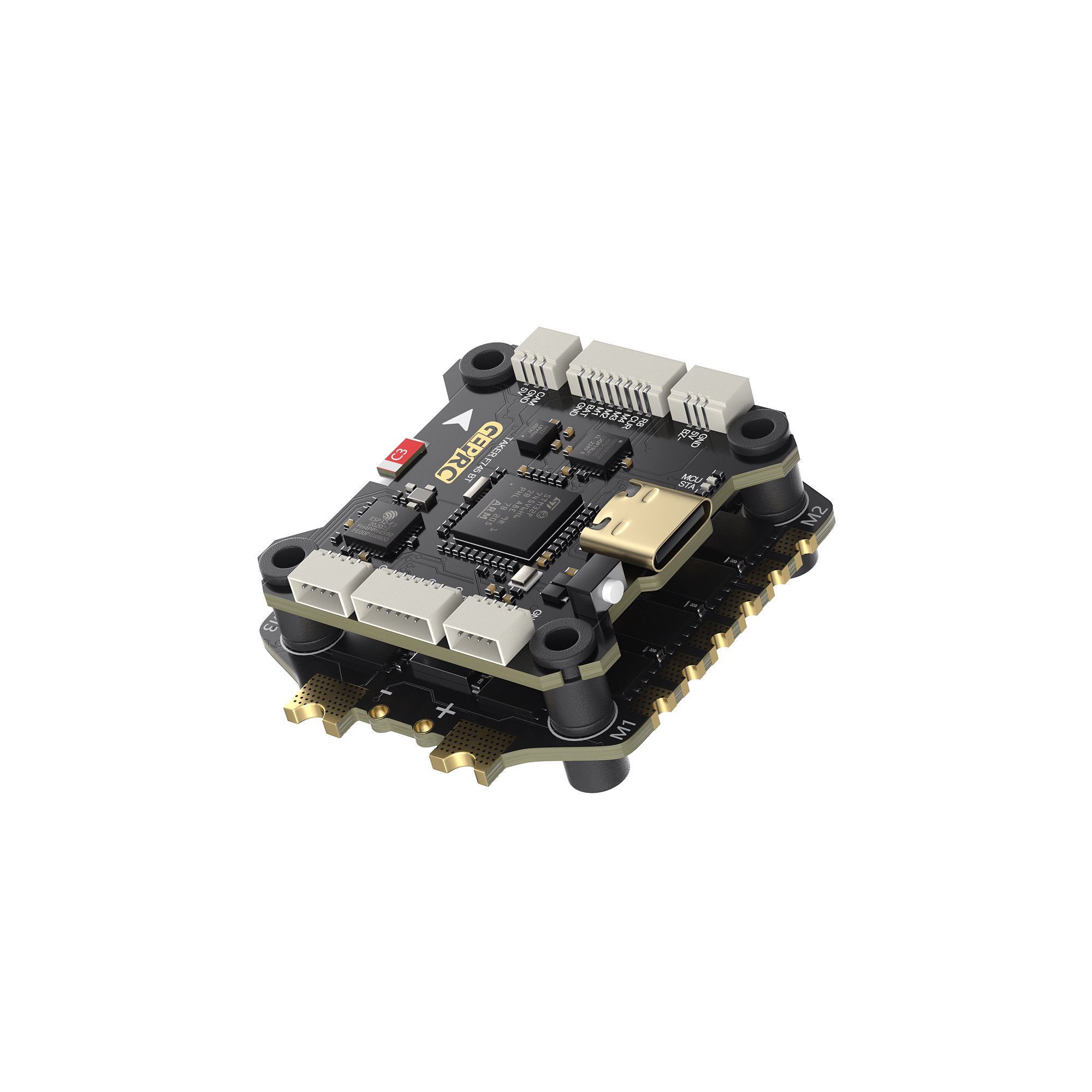

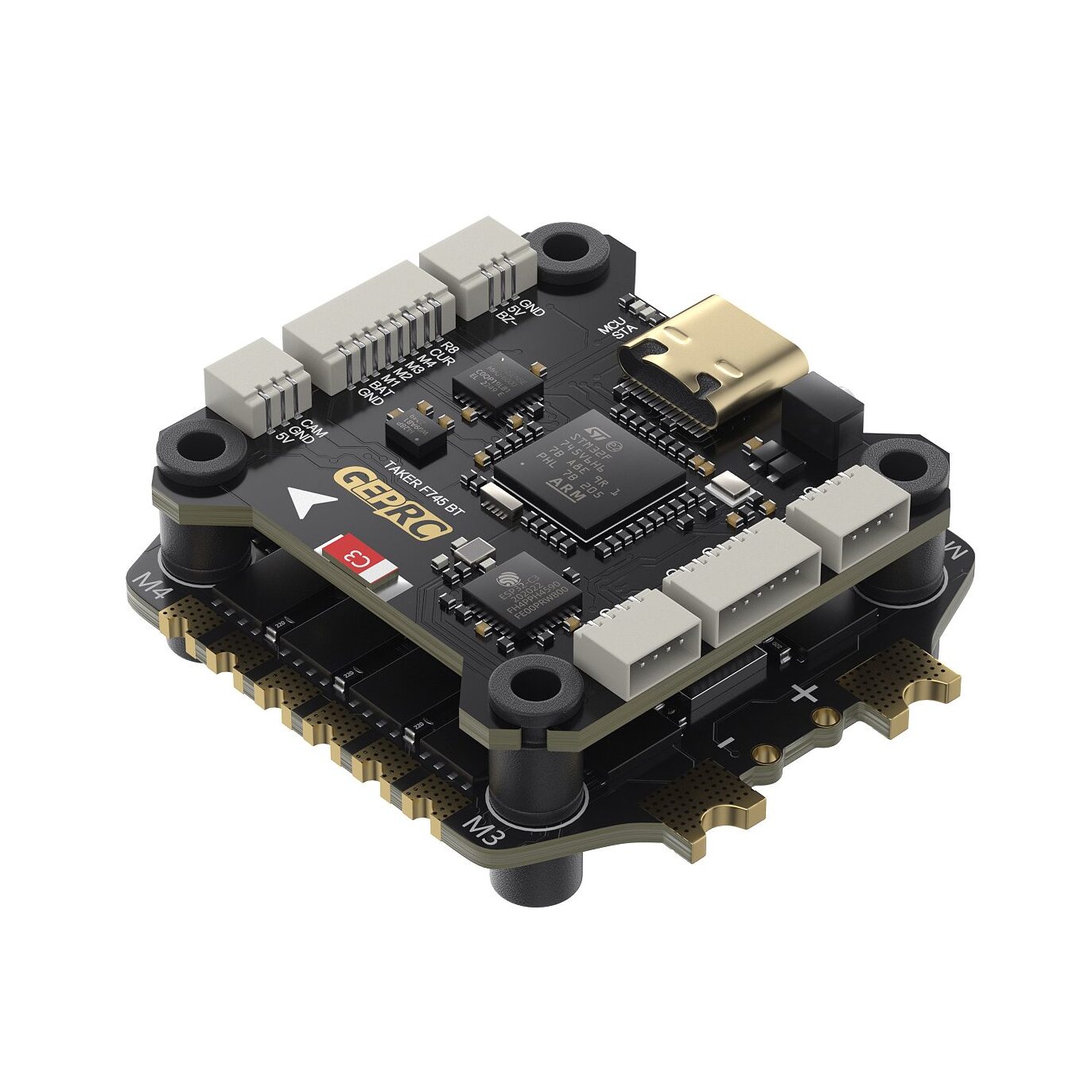

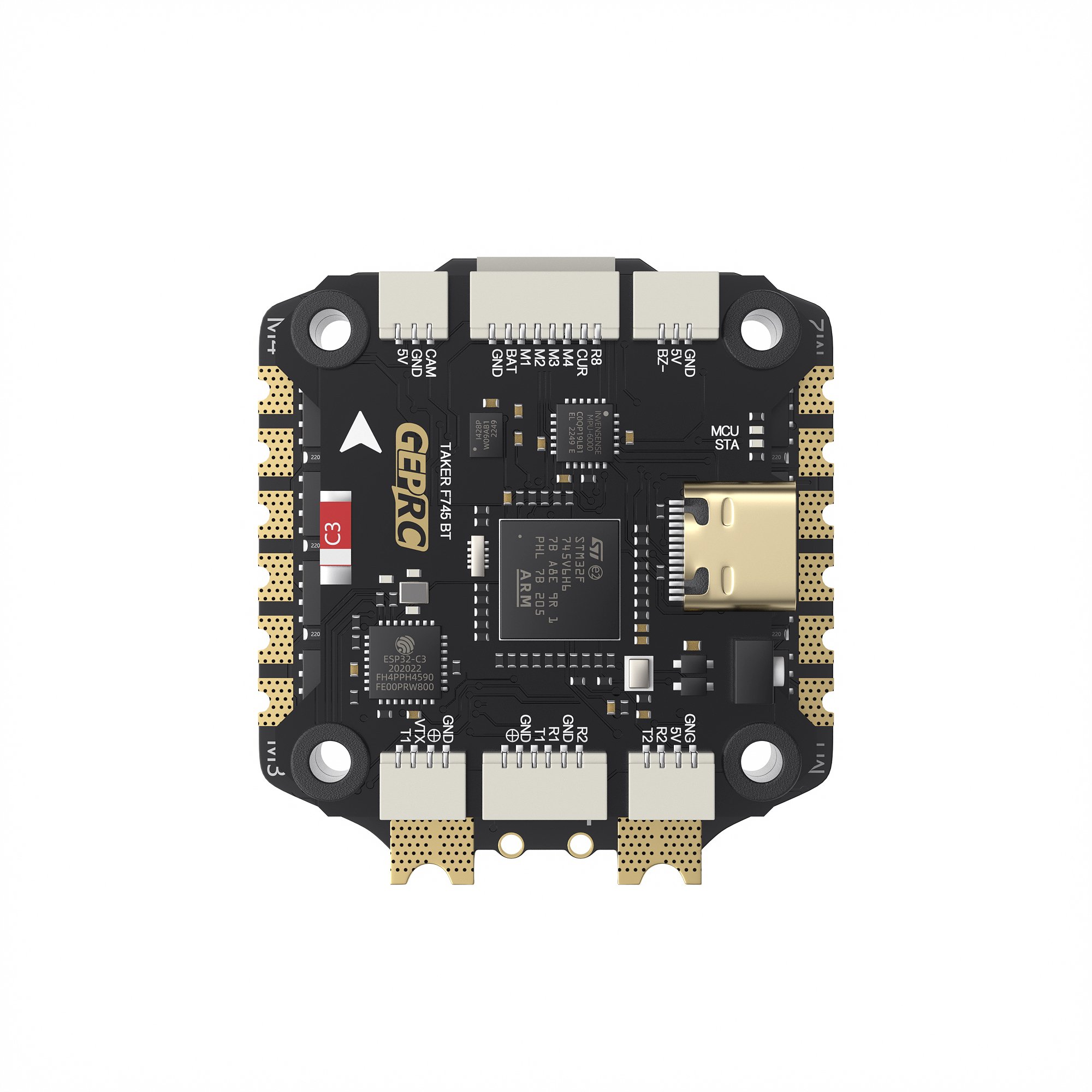

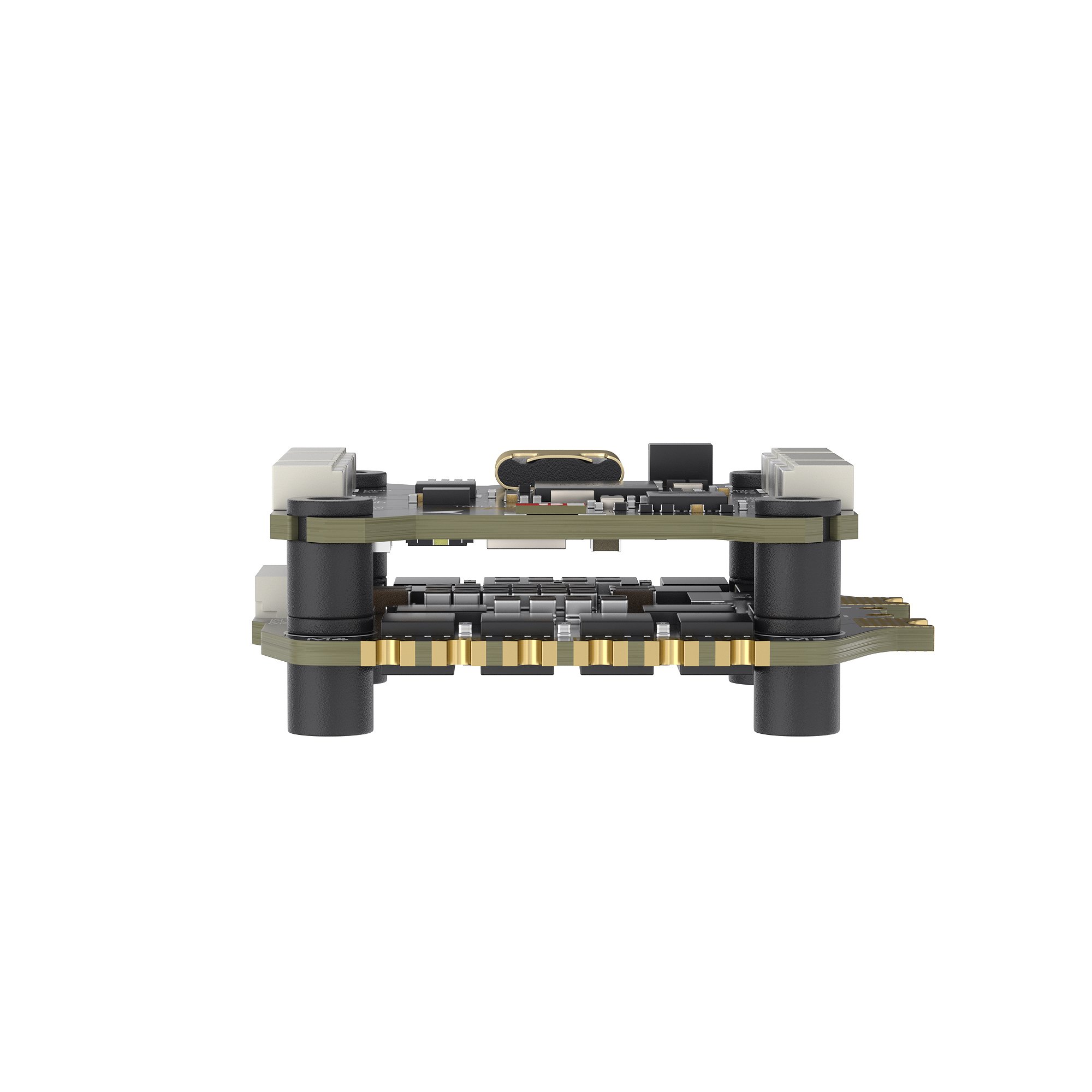

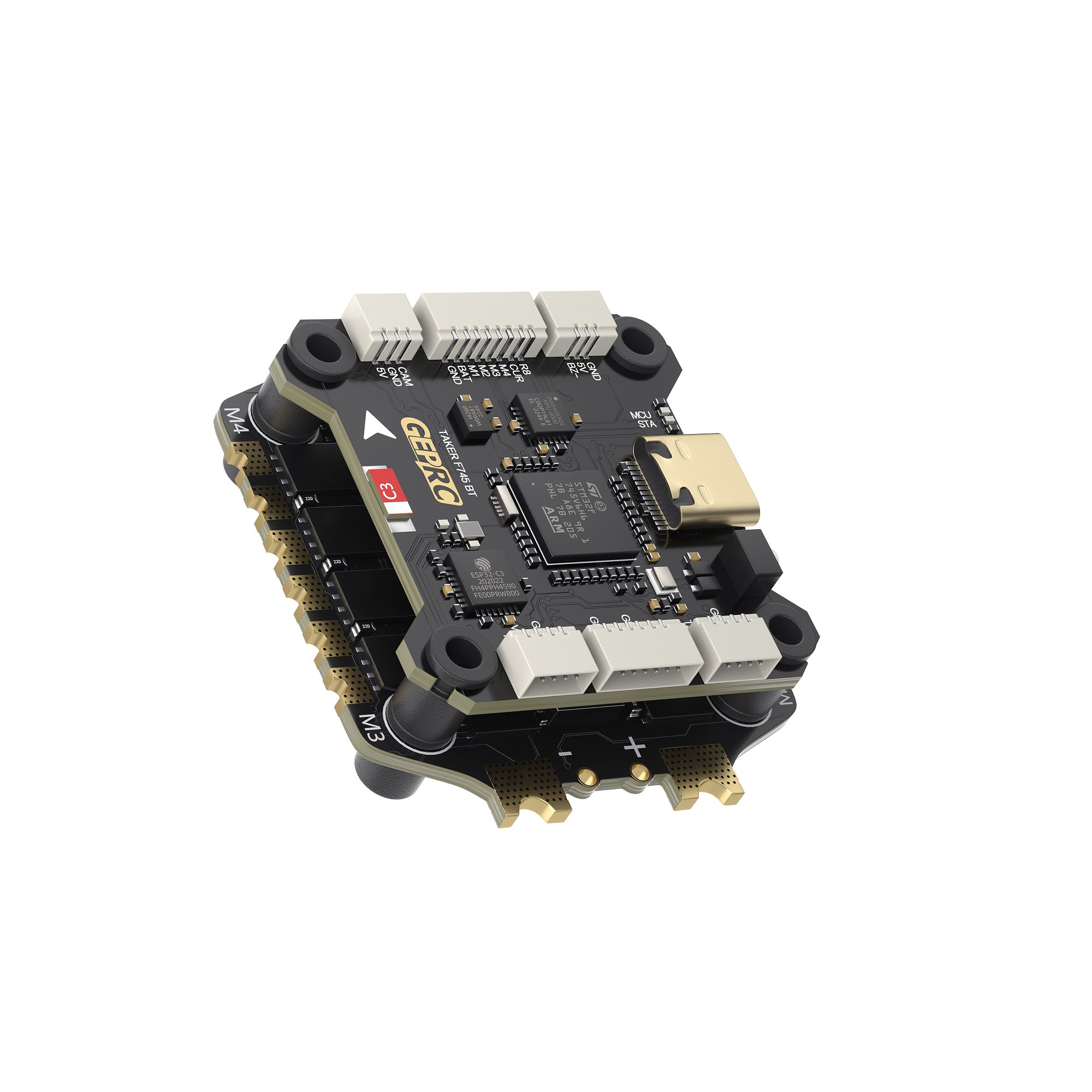

GEPRC TAKER F745 BT 60A Stack – High-Speed Racing Drone Electronics

Name: GEPRC TAKER F745 BT 60A Stack - High-Speed Racing Drone Electronics - WYECS STORE
Brand: WYECS
SKU: GP107201
Price: 148.99 USD
Availability: InStock
Rating: 5 (1 reviews)

Original price was: $168.99.Current price is: $148.99.

Customer Reviews

★★★★★

5.9 out of 5

333 global ratings

MODEL:

TAKER F745 BT 8Bit 60A STACK

High-speed STM32F745 MCU for elite performance.
Powerful 60A 8-bit ESC for consistent current.
Integrated Bluetooth for easy wireless app tuning.
Stable ICM42688-P gyro for smooth flight control.
Reliable dual BEC outputs: 5V 3A and 9V 2.5A.
Large 16MB Blackbox for flight data logging.

SKU GP107201 Category Flight Stacks Tags 60A ESC, 8-bit ESC, Drone Electronics, F7 FC, FPV Stack, GEPRC, Racing Drone, TAKER F745 BT Brand: GEPRC

Boost your FPV performance with the GEPRC TAKER F745 BT 60A Stack. Featuring an advanced F745 Flight Controller and a reliable 60A FPV Stack, this combo is the ultimate solution for professional Racing Drone Electronics, offering seamless wireless tuning and extreme flight stability.

The GEPRC TAKER F745 BT 60A Stack is meticulously engineered for pilots who demand both high-speed processing and wireless convenience. At its core, the STM32F745 MCU powers the F745 Flight Controller, providing exceptional computational speed and low latency for a truly locked-in flight feel. Paired with a robust 8-bit 60A ESC, this 60A FPV Stack ensures steady power delivery and smooth throttle response, making it a cornerstone for modern Racing Drone Electronics.

What sets this stack apart is the integrated Bluetooth module, which allows you to calibrate PIDs and adjust settings in the field via smartphone applications—no USB cables required. The ICM42688-P gyroscope delivers low-noise flight data to handle vibrations effectively, while the dual BEC system (5V 3A and 9V 2.5A) reliably powers high-output VTX systems and peripheral accessories. With 16MB of onboard Blackbox storage for detailed data logging, the GEPRC TAKER F745 BT offers the reliability and advanced technology needed for competitive racing and technical freestyle maneuvers.

Summary

The GEPRC TAKER F745 BT 8Bit 60A stack is the latest stack system developed by the GEPRC team. It features a high-performance STM32F745VGH6 chip with a Cortex-M7 core running at up to 216MHz, handling both racing and freestyle flights with ease. Its dual gyroscope setup, using MPU6000 and ICM42688-P, ensures precise control. With integrated Bluetooth for wireless parameter adjustments and a built-in 512MB black box, it’s well-equipped. It also offers eight motor output ports and is compatible with X8 models.
Compatible with Betaflight, INAV, and Ardupilot, it ensures flexibility. The dual independent 5V@3A + 12V@2.5A BEC ensures stable charging and motor voltage options. Features include seven UART ports, an integrated barometer, and plug-and-play functionality. With the TAKER H60_BLS 4-in-1 ESC, it delivers an exceptionally smooth flight experience.

Features

Adopts the high-performance STM32F745 as the main controller
Equipped with MPU6000 and 42688-P dual gyroscopes
512MB high-capacity black box storage
Bluetooth parameter tuning
Upgraded Type-C USB interface
Plug-and-play, no soldering required.
Integrated barometer
Features 7 UART ports
Independent BEC with 12V@2.5A and 5V@3A outputs
Equipped with the TAKER H60_BLS 60A 4IN1 ESC for a smooth flight experience.

Specifications

TAKER F745 BT Flight Controller

FC model: TAKER F745 BT Flight Controller
MCU: STM32F745
IMU: MPU6000 + ICM42688-P(dual gyro)
Air Unit Connection: direct plug for DJI Air Unit
Black Box：512M onboard
Bluetooth: Supported
Barometer: Supported
USB Interface: Type-C
OSD: BetaFlight OSD w/ AT7456E chip
BEC Output: 5V@3A,12V@2.5A dual BEC
Target: GEPRCF745_BT_HD
Dimension: 38.5×38.5mm, mounting hole size 30.5×30.5mm
Input Voltage: 3-6S LiPo
UART Ports: 7 groups (UART3 fixed for Bluetooth)
Power Filtering: Integrated LC filter
Weight: 8.4g

TAKER H60_BLS 60A 4IN1 ESC

ESC Model: TAKER H60_BLS 60A 4IN1 ESC
Input Voltage: 3-6S Lipo
Continuous Current: 60A
Peak Current: 65A（5 seconds）
Supported Protocol: Dshot 150/300/600
Dimension：42×45.7mm, mounting hole size 30.5×30.5mm
Weight: 14.9g
Target: B_X_30
