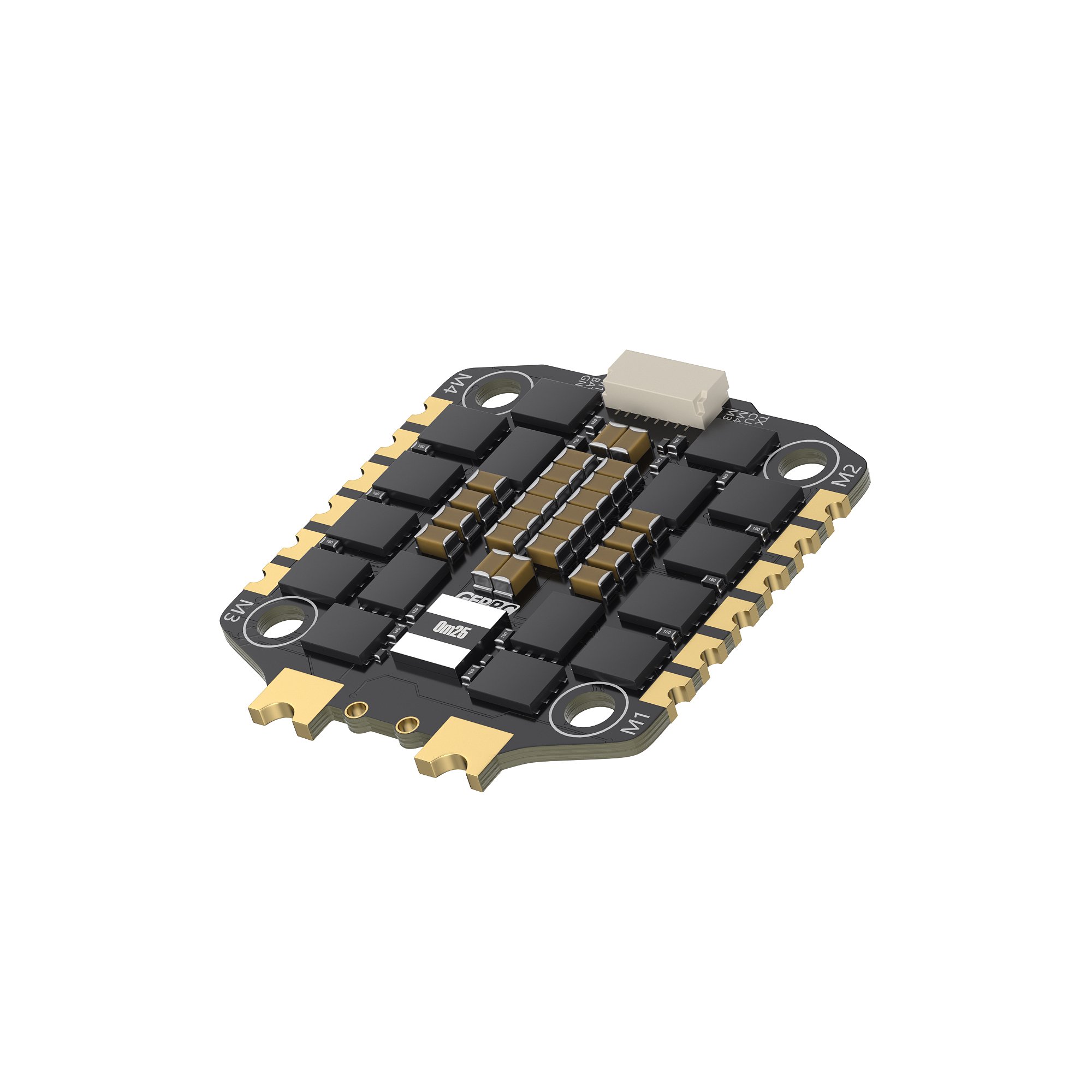

GEPRC TAKER H60_BLS 60A 4in1 ESC – 6S High Performance Power

Original price was: $59.99.Current price is: $49.99.

Customer Reviews

★★★★★
★★★★★
0.0 out of 5
0 global ratings
MODEL:
TAKER H60_BLS 60A 4IN1 ESC
  • High Power Output: 60A continuous and 70A burst current for aggressive 6S builds.
  • Advanced MCU: Powerful STM32G071 32-bit MCU for smooth and stable motor control.
  • Voltage Protection: Built-in TVS diode filters high-voltage spikes effectively.
  • Standard Mounting: Universal 30.5×30.5mm pattern with M4 holes fits most frames.
  • Firmware Support: Supports BLHeli_S and Bluejay for up to 128KHz PWM frequency.
  • Rugged Design: Optimized heat dissipation with high-quality MOSFETs for durability.

Shop GEPRC TAKER H60_BLS ESC. 60A continuous power, 3-6S support, and G071 MCU. Reliable BLHeli_S performance for FPV drones at WYECS.

Upgrade your drone's power system with the GEPRC TAKER H60 ESC, a robust and efficient solution for modern pilots. This high-performance 60A 4in1 ESC 6S is engineered to handle the intense demands of freestyle and racing drones, delivering up to 70A burst current (5 seconds) without breaking a sweat.

Powered by a high-speed STM32G071 MCU, this BLHeli_S 60A ESC offers a unique combination of 32-bit processing speed with the proven reliability of BLHeli_S firmware. It fully supports Bluejay firmware, allowing for a wide PWM frequency range up to 128KHz, ensuring your motors run cooler, quieter, and more efficiently. As a premium 30.5x30.5 FPV ESC, it features a clean PCB layout with an integrated TVS protective diode to shield your sensitive flight electronics from damaging voltage surges. Whether you are building a new 5-inch basher or upgrading your cinematic rig, the GEPRC TAKER 60A BLS provides the high-current stability and "geek-level" precision needed for elite 6S performance.

Specifications

  • Input Voltage: 3-6S Lipo
  • Ammeter: Support
  • Continue Current: 60A
  • Burst Current: 65A(5 seconds)
  • Support Protocol: Dshot 150/300/600
  • Size: 42×45.7mm
  • Mounting Holes: 30.5×30.5mm, φ4mm hole becomes φ3mm after using the silicone shock-absorbing ring.
  • Weight: 14.9g
  • Target: B_X_30

Includes

1 x ESC

1 x Capacitor

1 x Flight Controller Adapter Cable

1 x XT60 Power cable

4 x Silicone anti-shake pads

SUPPORT

Q: How do I enable 128kHz PWM frequency on my TAKER H60_BLS ESC?+
Since the H60_BLS uses the G071 MCU, you can flash “Bluejay” firmware using the ESC-Configurator (web-based). Once flashed, you can select 48kHz, 96kHz, or 128kHz in the settings. This will significantly improve flight smoothness and battery efficiency....more
View Full Article: Details >

FAQ

Q: What is the benefit of the 9V/10V BEC on GEPRC flight controllers?+
Digital HD systems like DJI O3 or Walksnail require stable, high-current power. A dedicated 9V or 10V BEC provides cleaner power than a 5V rail and protects your video system from voltage drops during aggressive throttle maneuvers....more
View Full Article: Details >
