Original price was: $159.99.$149.99Current price is: $149.99.

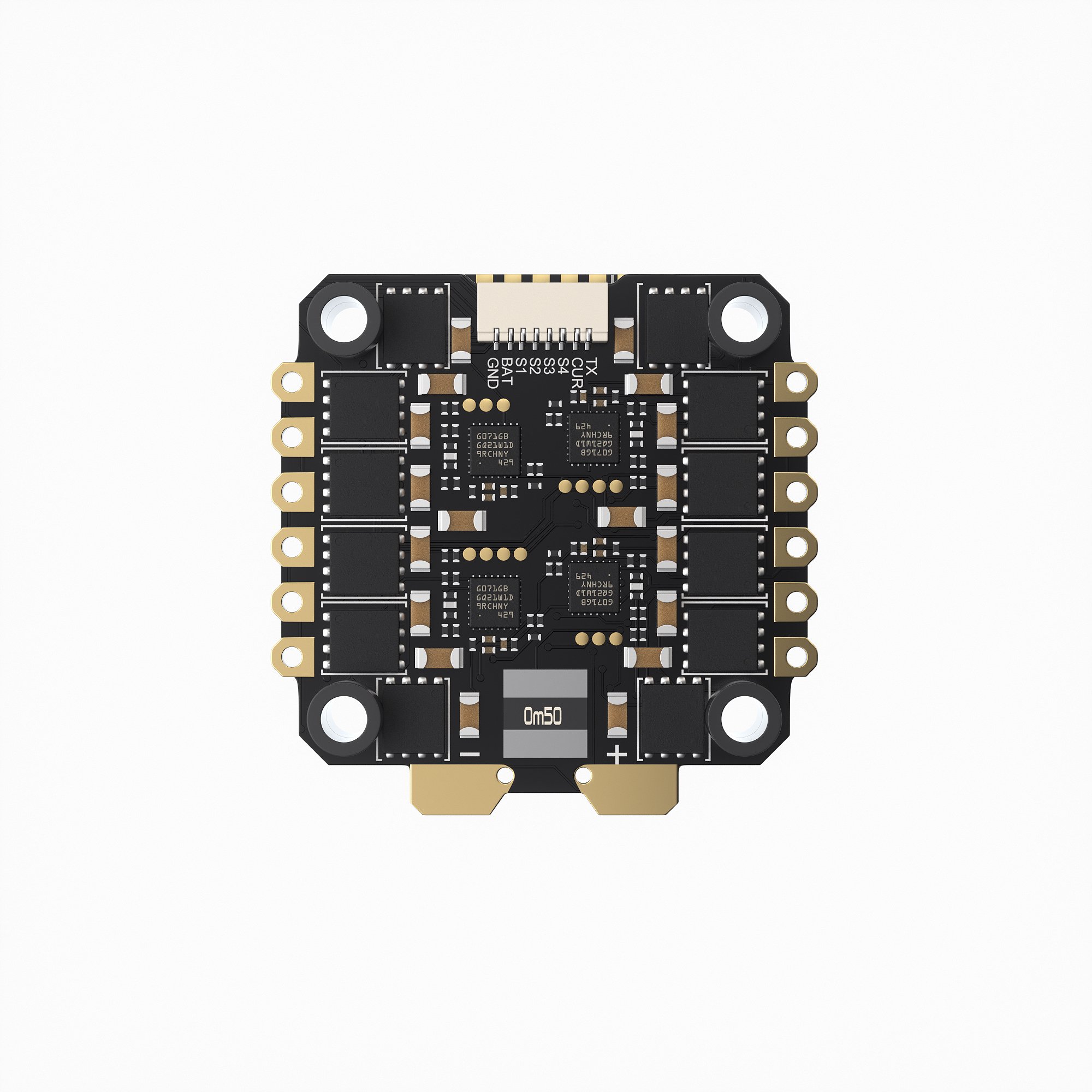

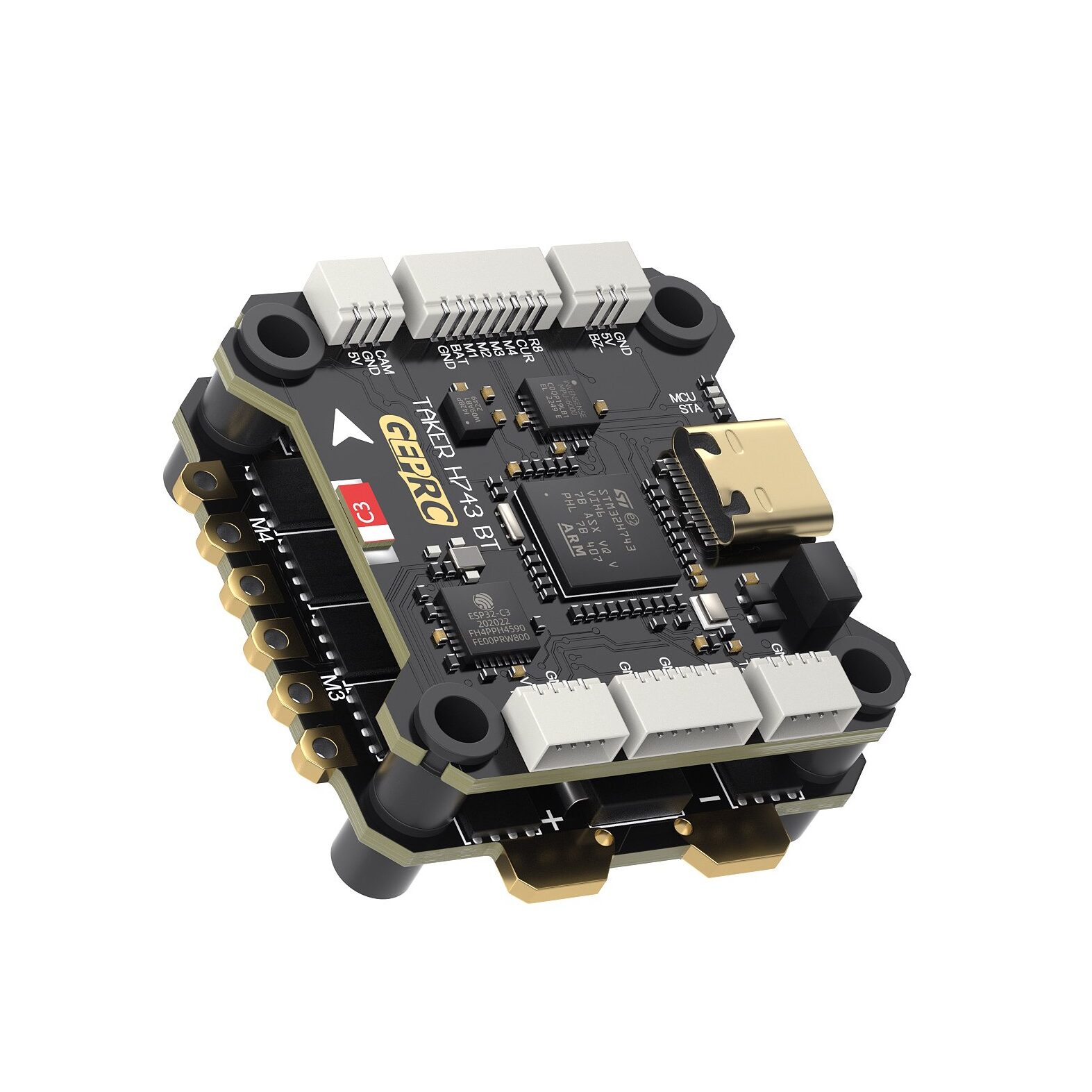

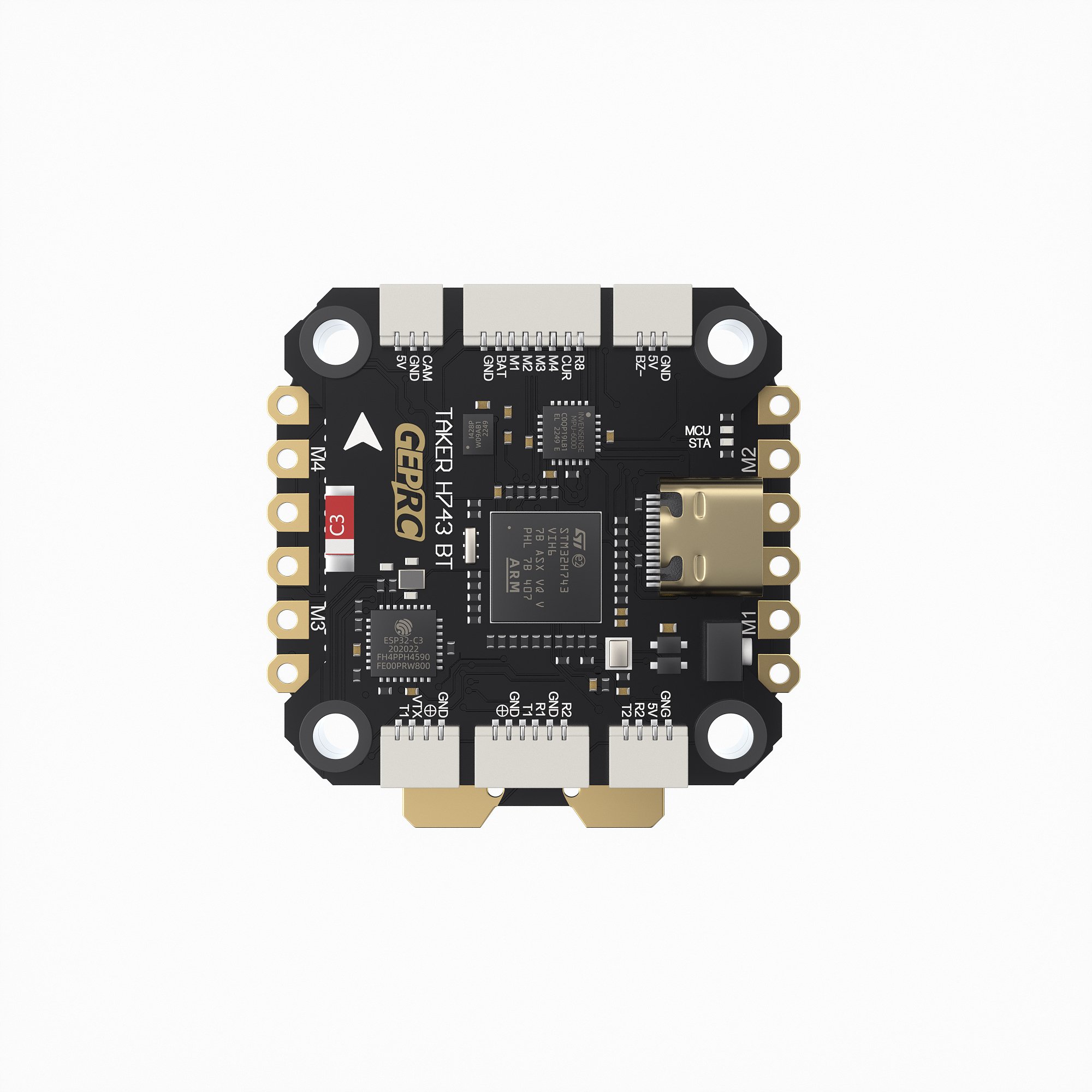

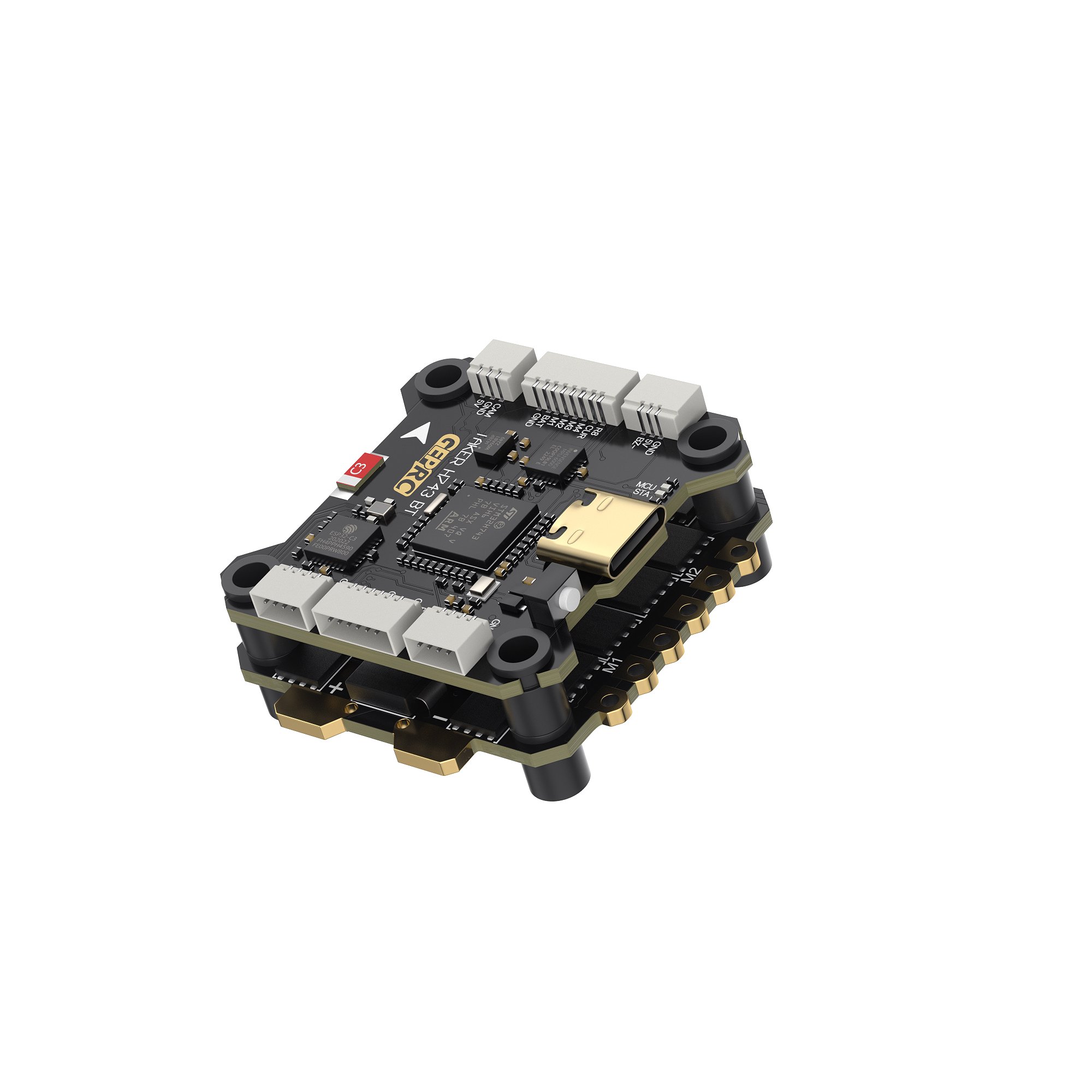

The GEPRC TAKER H743 BT 50A Stack features a powerful H743 Flight Controller and a 32-bit 50A ESC. This 50A FPV Stack provides seamless wireless tuning and extreme stability for professional Racing Drone Electronics.
The GEPRC TAKER H743 BT 50A Stack is a premium flight system built for those who demand uncompromising performance. At its core, the STM32H743VIT6 processor powers the H743 Flight Controller, offering massive computing overhead for the most advanced flight algorithms. Paired with a robust 32-bit 50A ESC running BLHeli_32, this stack ensures ultra-smooth throttle response and high efficiency across all flight envelopes.
As a comprehensive solution for Racing Drone Electronics, this 50A FPV Stack integrates a high-precision ICM42688-P gyroscope for low-noise flight. The built-in Bluetooth module allows for quick, wireless tuning via smartphone, making it incredibly convenient for field adjustments. With a dual BEC system providing 5V/3A and 9V/2.5A, the GEPRC TAKER H743 BT guarantees reliable power for your VTX and peripherals. Whether you are building a competitive racing rig or a high-end freestyle drone, this stack provides the reliability and speed needed for elite flight performance.
The TAKER H743 BT 32Bit 50A stack is the latest stack system developed by the GEPRC team. It features a high-performance STM32H743VIH6 chip with a Cortex-M7 core running at up to 480MHz, handling both racing and freestyle flights with ease. Its dual gyroscope setup, using MPU6000 and ICM42688-P, ensures precise control. With integrated Bluetooth for wireless parameter adjustments and a built-in 512MB black box, it’s well-equipped. It also offers eight motor output ports and is compatible with X8 models.
Compatible with Betaflight, INAV, and Ardupilot, it ensures flexibility. The dual independent 5V@3A + 12V@2.5A BEC ensures stable charging and motor voltage options. Features include seven UART ports, an integrated barometer, and plug-and-play functionality. With the GEP-BL32 50A 96K 4IN1 32Bit ESC, it delivers an exceptionally smooth flight experience.
1. Adopts the high-performance STM32H743 as the main controller
2. Equipped with MPU6000 and 42688-P dual gyroscopes
3. 512MB high-capacity black box storage
4. Bluetooth parameter tuning
5. Upgraded Type-C USB interface
6. Plug-and-play, no soldering required
7. Integrated barometer
8. Features 7 UART ports
9. Independent BEC with 12V@2.5A and 5V@3A outputs
10. Equipped with the GEP-BL32 50A 96K 4IN1 32Bit ESC for a smooth flight experience
Specifications
TAKER H743 BT 32Bit 50A Stack
1 x FC board
1 x ESC board
1 x Capacitor
1 x O3 3-in-1 connection cable
1 x FC adapter cable
1 x sh1.0 4pin silicone cable
1 x Camera connection cable
1 x VTX connection cable
1 x Buzzer connection cable
1 x XT60 power cable
4 x M3*30 screws
4 x M3*25 screws
8 x Nylon nuts
12 x Silicone anti-shake pads
