Summary

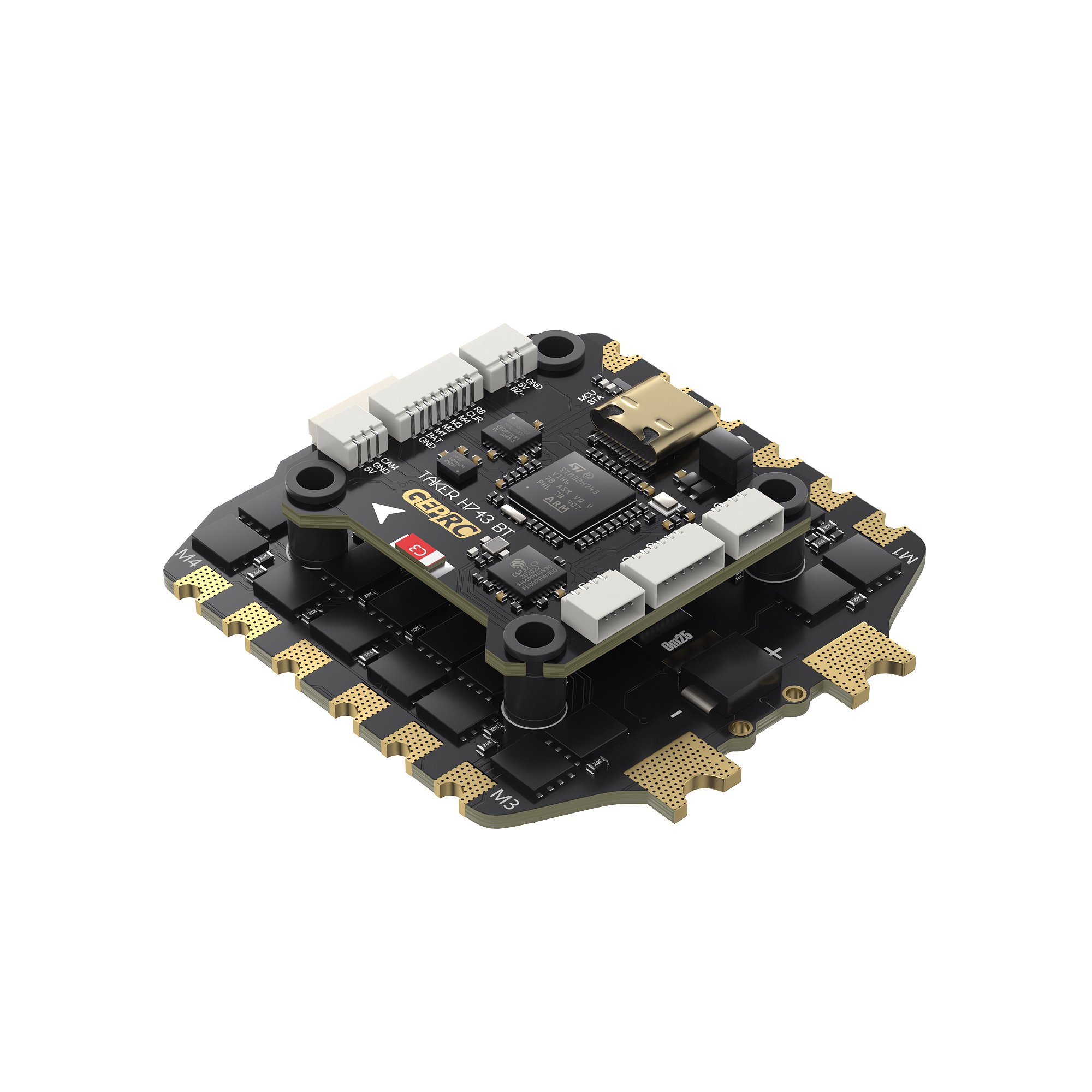

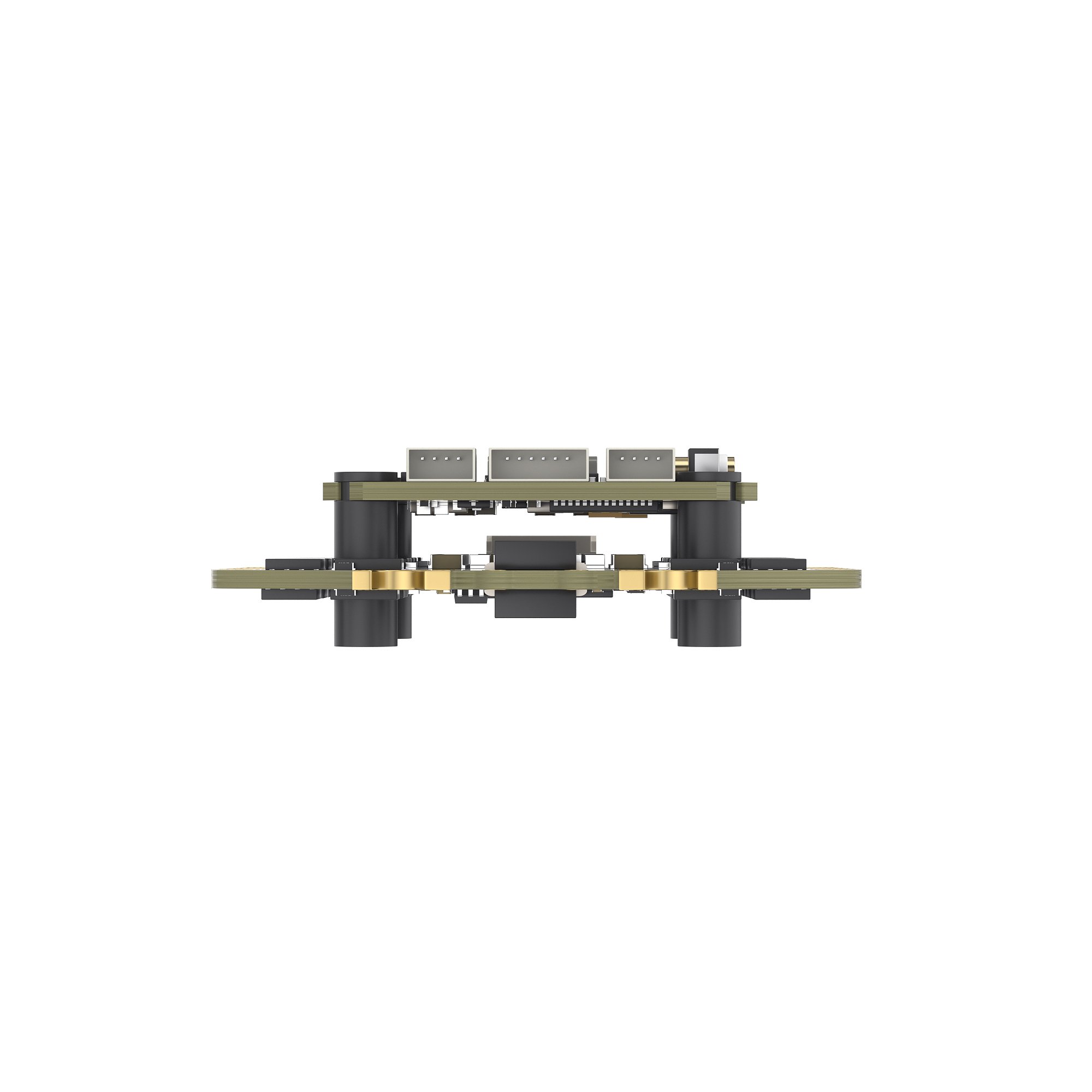

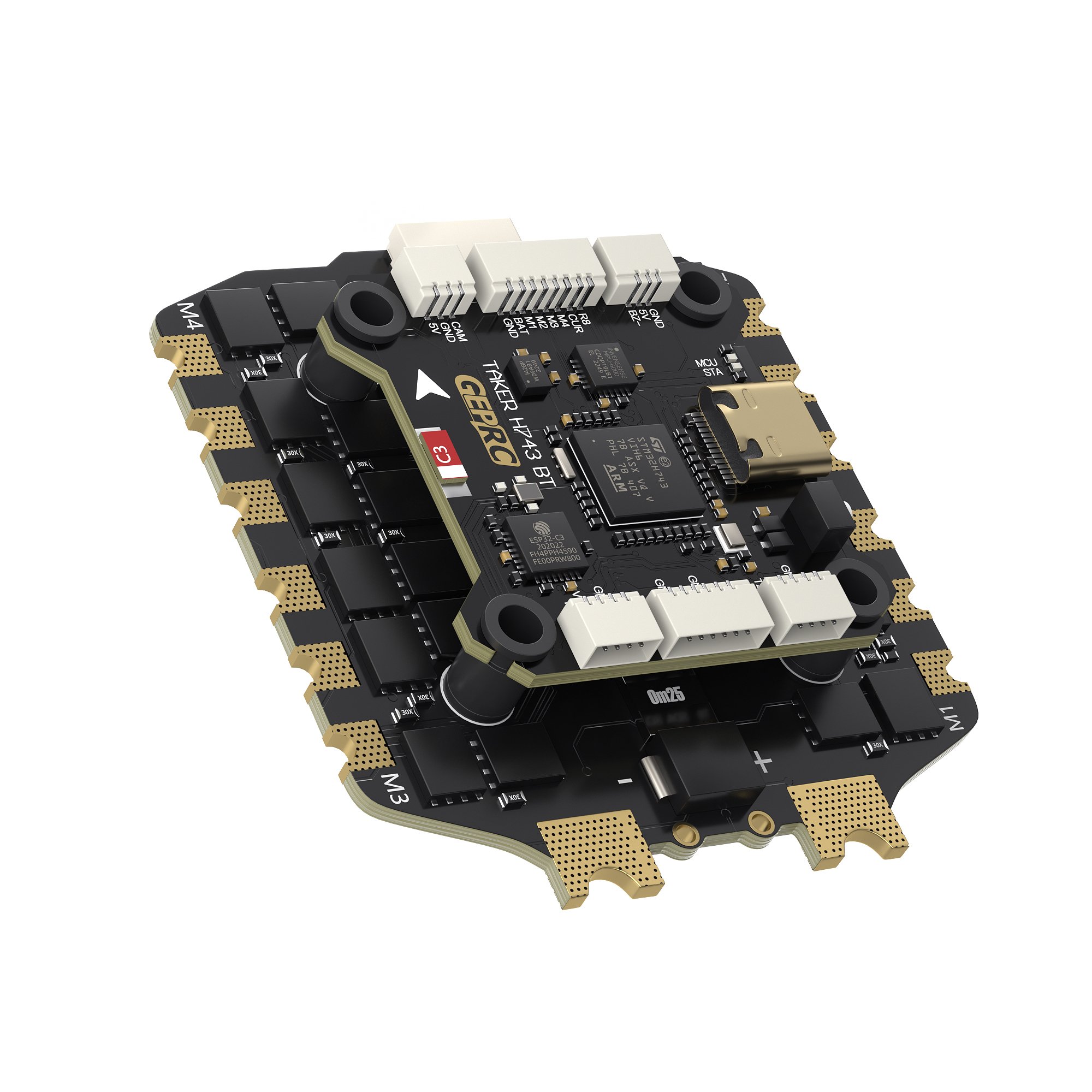

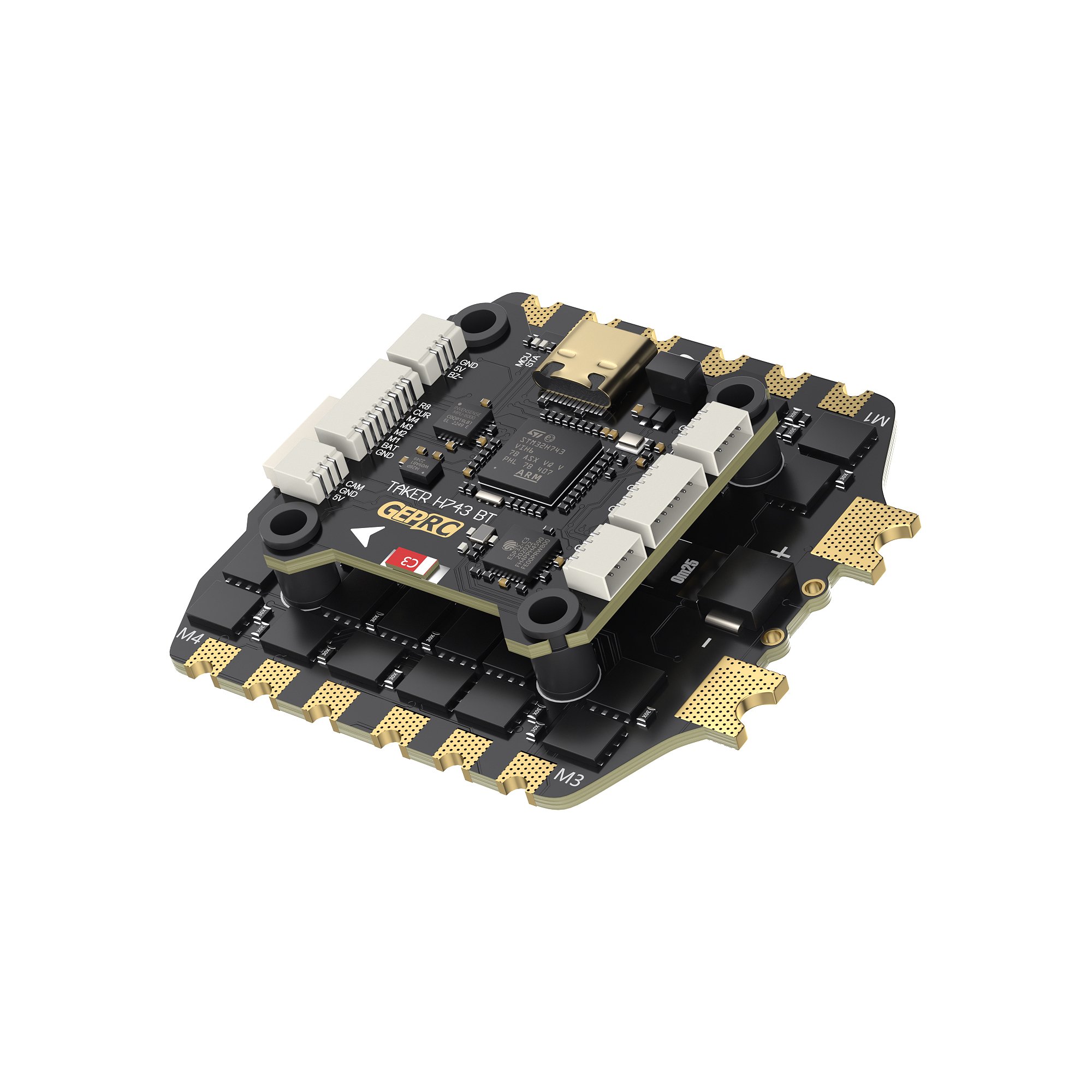

TAKER H743 BT 8Bit 80A STACK is the latest Stack system developed by the GEPRC team. It features a high-performance STM32H743VIH6 chip with a Cortex-M7 core running at up to 480MHz, handling both racing and freestyle flights with ease. Its dual gyroscope setup, using MPU6000 and ICM42688-P, ensures precise control. With integrated Bluetooth for wireless parameter adjustments and a built-in 512MB black box, it’s well-equipped. It also offers eight motor output ports and is compatible with X8 models.

Compatible with Betaflight, INAV, and Ardupilot, it ensures flexibility. The dual independent 5V@3A + 12V@2.5A BEC ensures stable charging and motor voltage options. Features include seven UART ports, an integrated barometer, and plug-and-play functionality. With the TAKER H80_BLS 80A 4IN1 ESC, it delivers an exceptionally smooth flight experience.

Feature

1. Adopts the high-performance STM32H743 as the main controller

2. Equipped with MPU6000 and 42688-P dual gyroscopes

3. 512MB high-capacity black box storage

4. Bluetooth parameter tuning

5.Plug-and-play, no soldering required

6. Integrated barometer

7.Features 7 UART ports

8. Independent BEC with 12V@2.5A and 5V@3A outputs

9. Supports multiple firmware options

10. Equipped with the TAKER H80_BLS 80A 4IN1 ESC for a smooth flight experience

Specifications

TAKER H743 BT 8Bit 80A STACK

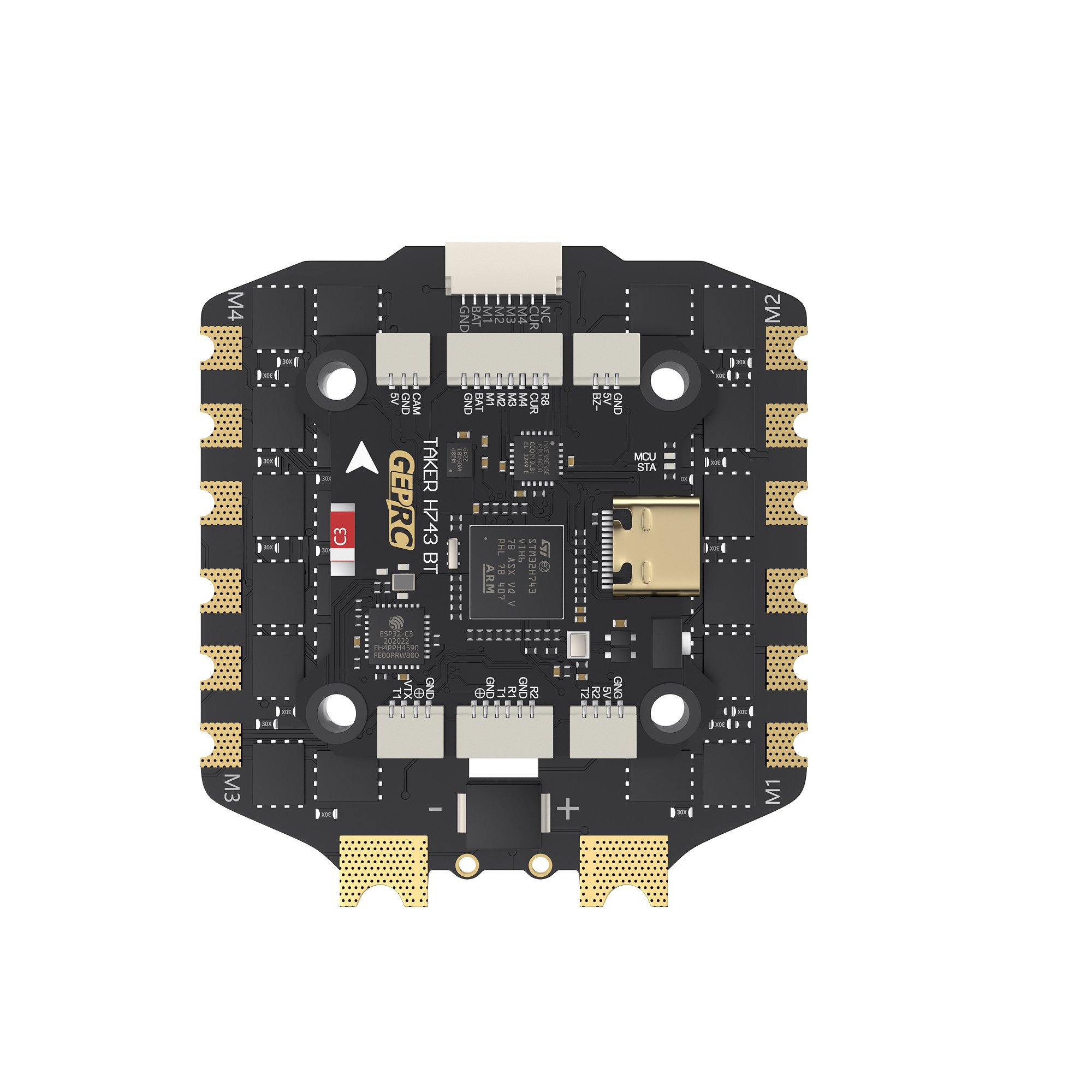

FC model: TAKER H743 BT Flight Controller

• MCU: STM32H743
• IMU: MPU6000 + ICM42688-P(dual gyro)
• Air Unit Connection: direct plug for DJI Air Unit
• Black Box: 512M onboard
• Bluetooth: Supported
• Barometer: Supported
• USB Interface: Type-C
• OSD: BetaFlight OSD w/ AT7456E chip
• BEC Output: 5V@3A,12V@2.5A dual BEC
• Target: GEPRC_TAKER_H743
• Dimension: 38.5×38.5mm, mounting hole size 30.5×30.5mm
• Input Voltage: 3-6S LiPo
• UART Ports: 7 groups (UART3 fixed for Bluetooth)
• Power Filtering: Integrated LC filter
• Weight: 8.4g

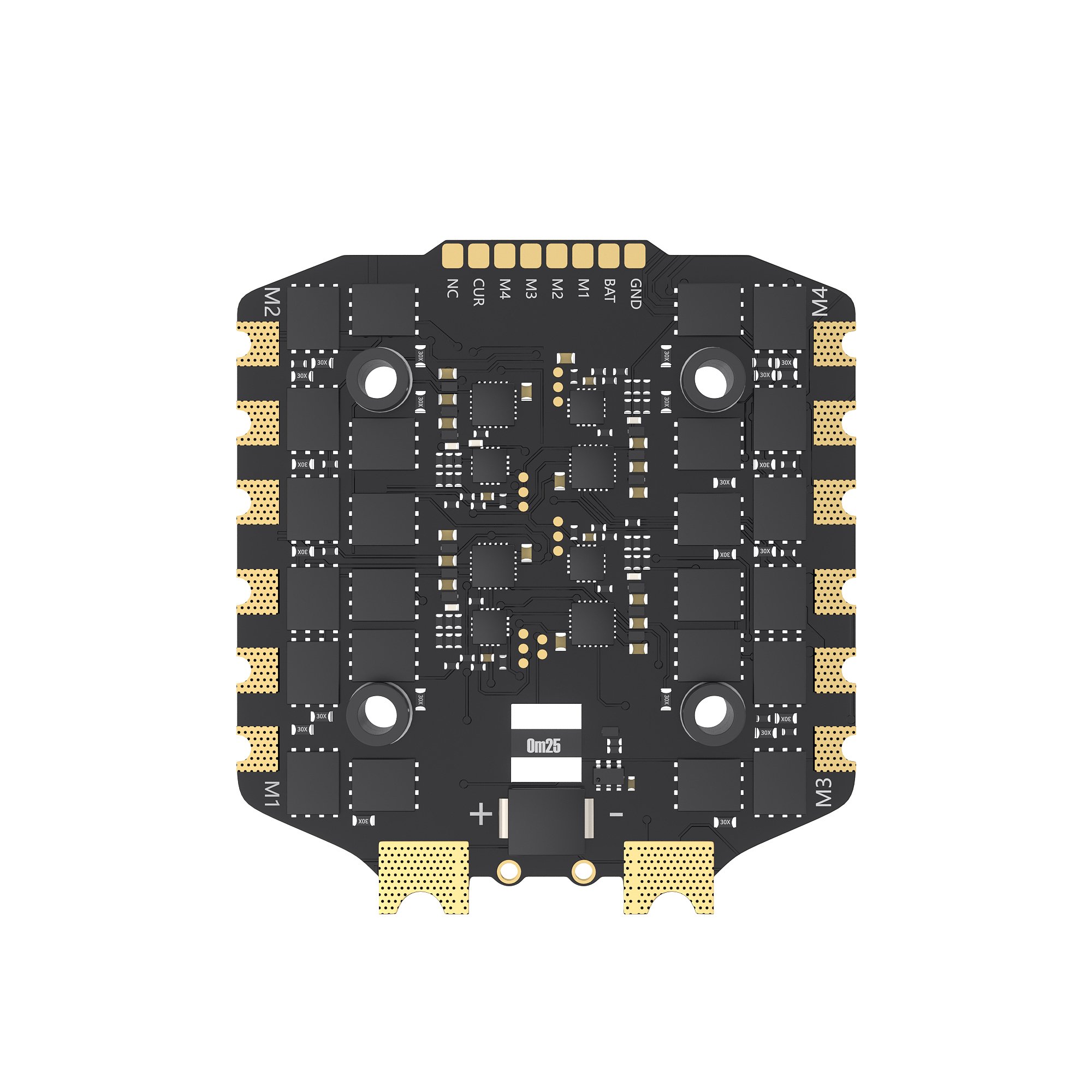

ESC Model: TAKER H80_BLS 80A 4IN1 ESC

• Input Voltage: 3-6S Lipo
• Ammeter: Support
• Continue Current：80A
• Burst Current：85A（5 seconds）
• Support Protocol: Dshot 150/300/600
• Size：56.3*61.1mm，hole30.5×30.5mm，φ4mm hole becomes φ3mm after using the silicone shock-absorbing ring.
• Weight: 28.1g
• Target: B_X_30

Includes

1 x TAKER H743 BT Flight Controller

1 x TAKER H80_BLS 80A 4IN1 ESC

1 x Electrolytic capacitor(50V 4700uF)

1 x DJI connection cable(SH1.0 6pin 100mm)

1 x FC adapter cable(SH1.0 8pin 30mm)

1 x Receiver silicone cable(SH1.0 4pin 150mm)

1 x Camera connection cable(SH1.0-SH1.25 3pin 60mm)

1 x VTX connection cable(SH1.0 4pin-6pin 100mm)

1 x XT90 power cable(10AWG 230mm)

4 x M3*30 screws

4 x M3*25 screws

8 x Nylon nuts(M3)

12 x Silicone anti-shake pads(M3)
