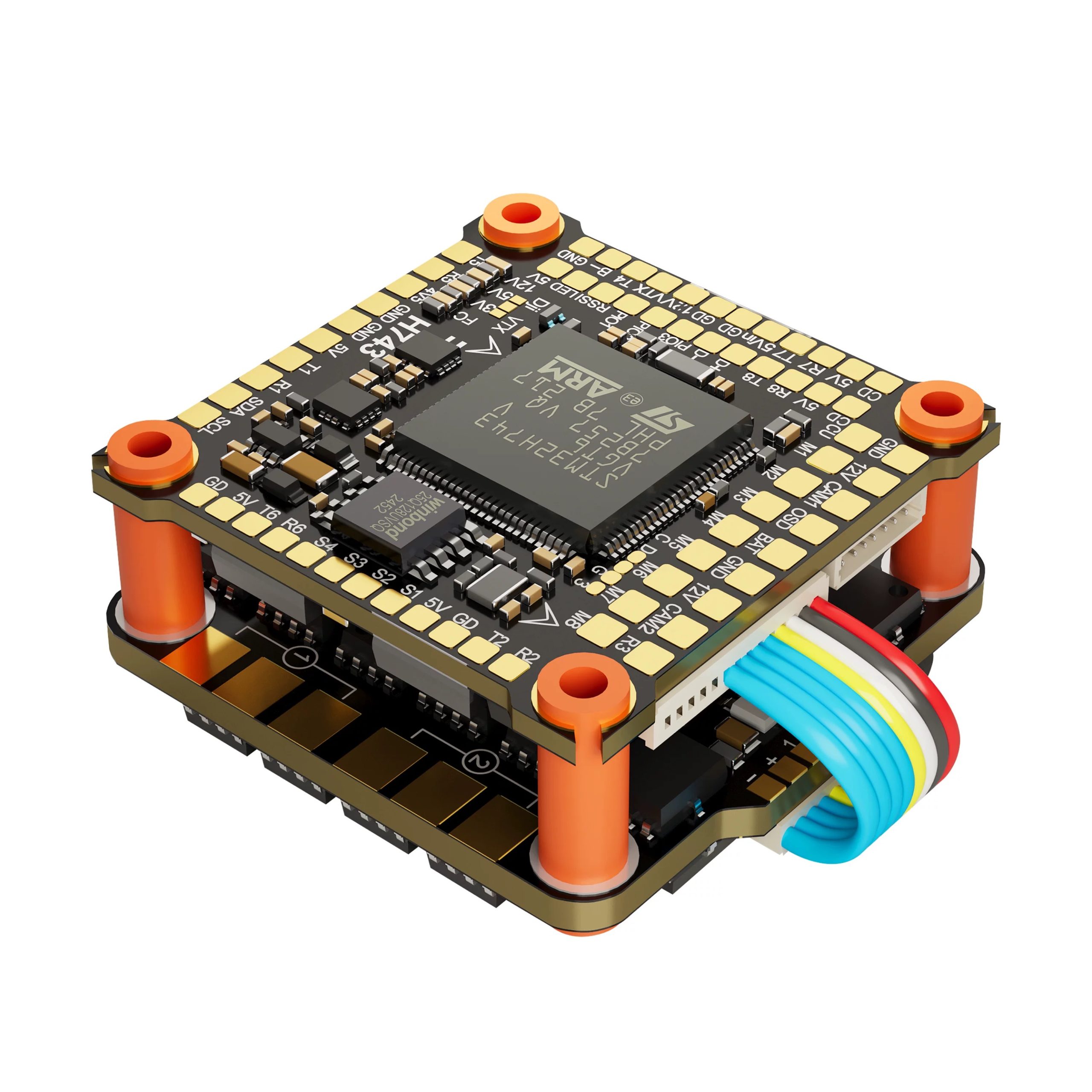

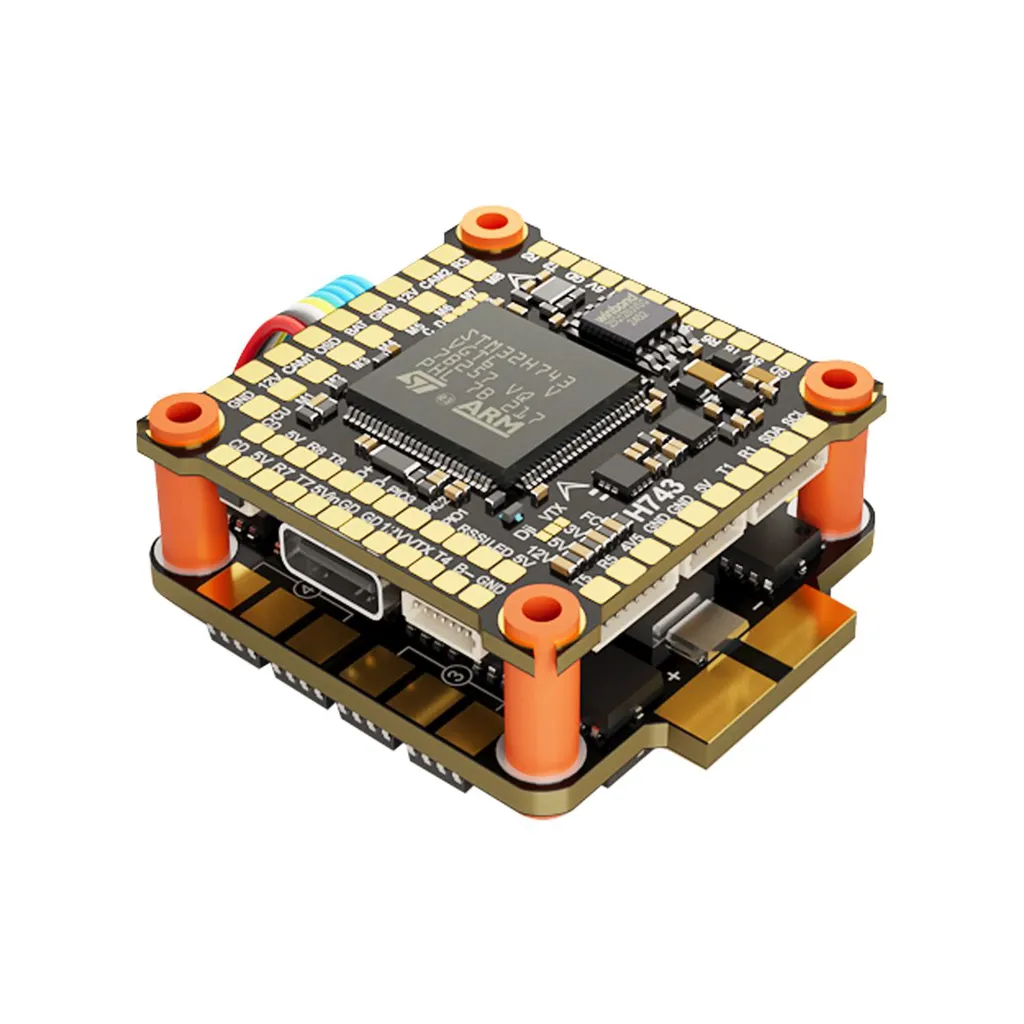

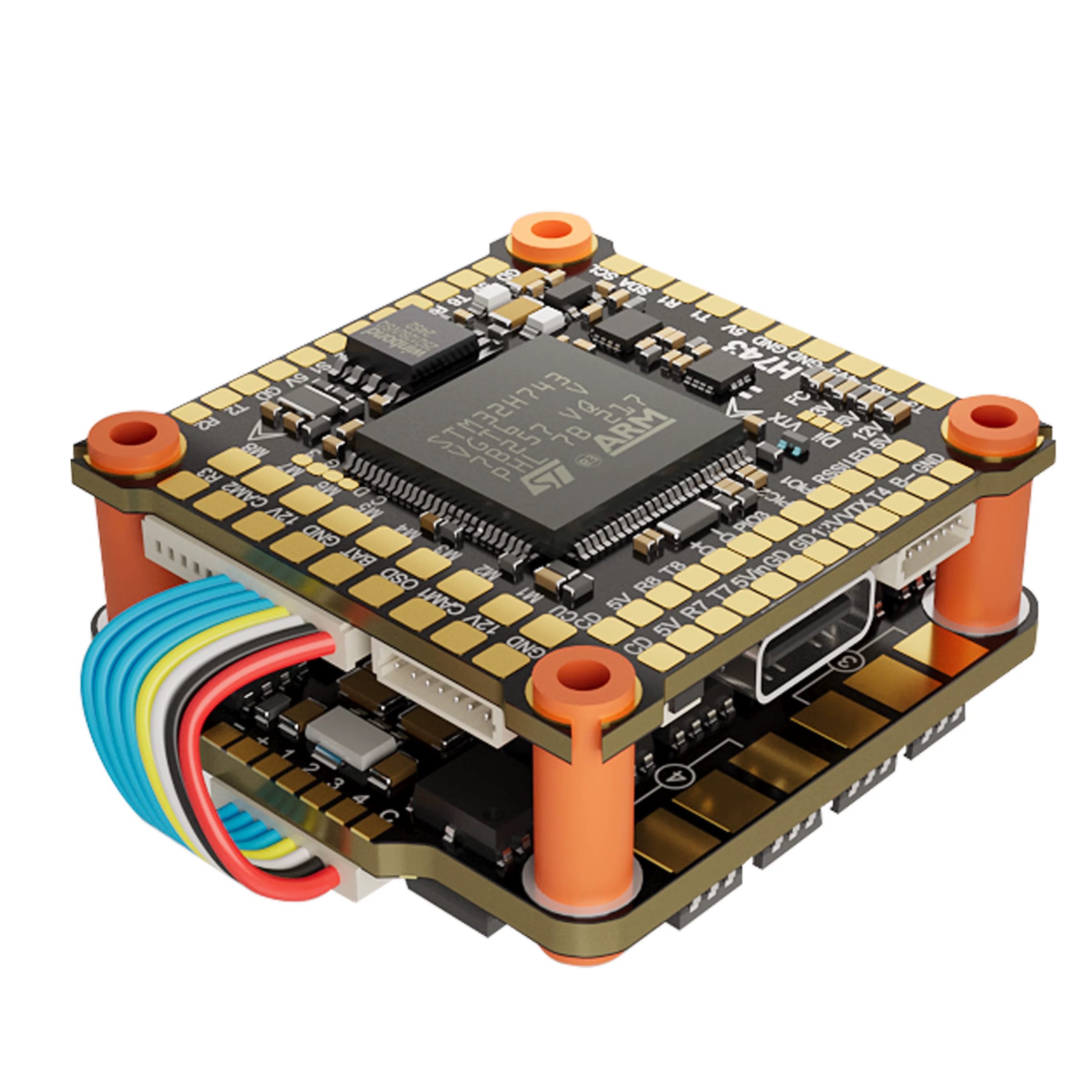

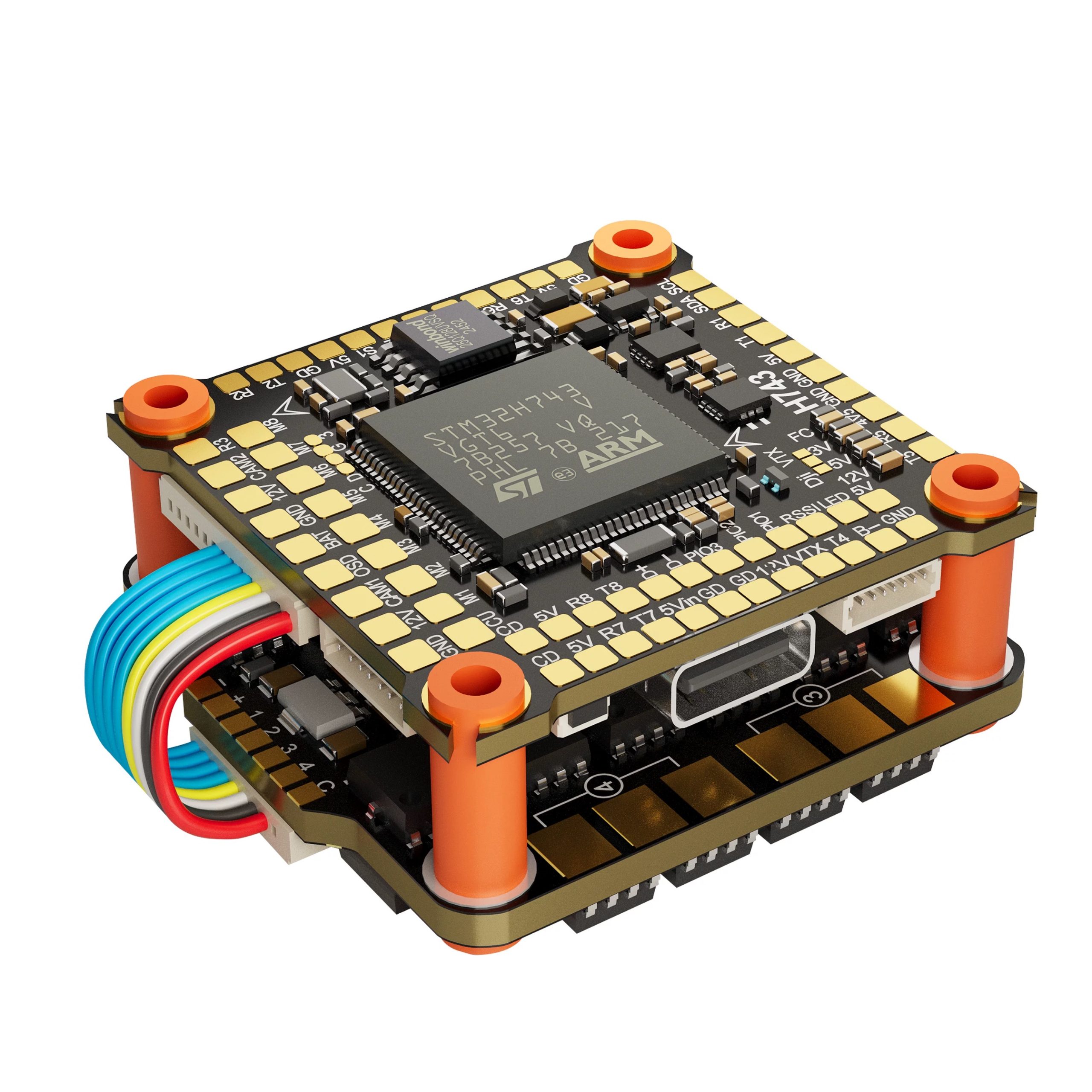

H743 Flight Controller Stack with 70A 4-in-1 ESC – High Performance FPV

Empower Your Flight with Extreme Processing Power The WYECS H743 Stack is engineered for pilots who demand the best. Equipped with the cutting-edge STM32H743 processor, it offers superior processing speed and memory compared to standard F4 or F7 controllers. Combined with our heavy-duty 70A 4-in-1 ESC, this stack provides unmatched stability and instantaneous throttle response for both high-speed racing and professional cinematic long-range missions. High-Performance H743 FPV Flight Controller Stack

• This H743 FPV Flight Controller Stack is built for pilots who want smooth flight performance, clean power, and reliable electronics without unnecessary complexity.
• It combines a powerful STM32H743 flight controller with a real 70A 4-in-1 ESC, making it suitable for freestyle, long-range, and cinematic FPV builds.
• The H743 processor offers significantly higher performance compared to older F7 controllers, allowing faster loop times, improved filtering, and more responsive control. The result is a locked-in flight feel with better stability at high speeds and during aggressive maneuvers.

Real 70A 4-in-1 ESC Power

• The included 4-in-1 ESC delivers true 70A continuous current per channel, supporting 3S to 8S LiPo batteries.
• High-quality MOSFETs, upgraded PCB copper thickness, and built-in TVS protection help reduce voltage spikes and improve reliability under heavy load.
• This ESC supports BLHeli_S / BlueJay firmware, enabling smooth motor response, efficient power handling, and compatibility with modern FPV setups.

Clean Signals & Stable Sensors

• Dual ICM42688P gyroscopes with independent power filtering provide clean gyro data and reduced electrical noise.
• An onboard barometer and 16MB blackbox flash memory allow detailed flight data logging for tuning and troubleshooting.

Easy Installation & Wide Compatibility

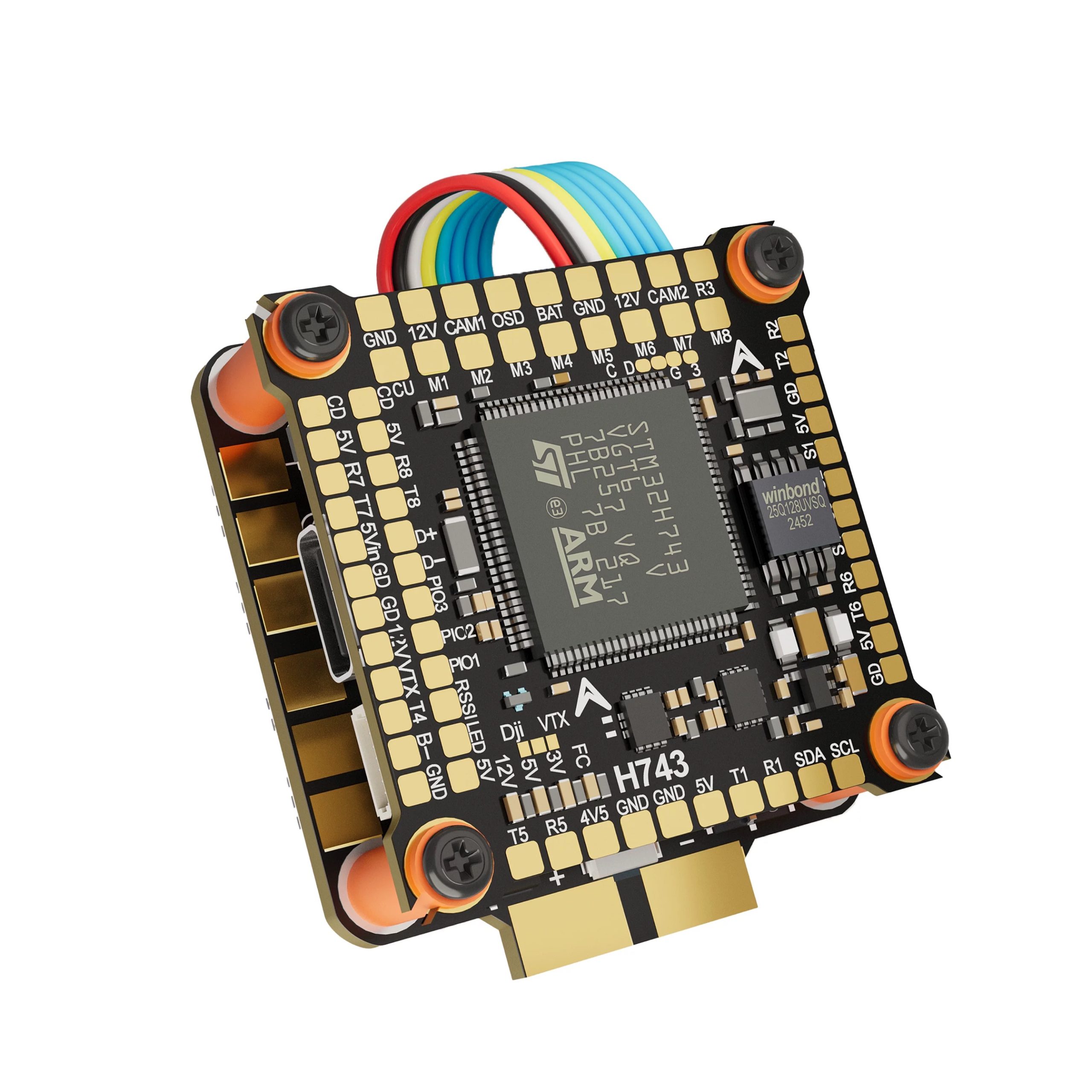

• The flight controller features a standard 30.5 × 30.5mm mounting pattern and multiple UARTs for flexible setup.
• A dedicated DJI digital FPV connector allows direct plug-and-play connection with DJI O3 Air Unit, RunCam Link, Caddx Vista, and DJI Air Unit V1 — no soldering or wire modification required.
• Compatible with Betaflight (default) and ArduPilot, this stack works well for both FPV pilots and advanced UAV users.

Ideal For

• Freestyle FPV drones
• Long-range FPV builds
• Cinematic FPV setups
• Pilots upgrading from F7 flight controllers

Key Features

• Ultra-Fast MCU: STM32H743 provides massive computing power for the latest Betaflight/Inav features.

• High-Current ESC: 70A continuous current with 80A burst, supporting 3S-6S input.

• Plug-and-Play: Simple wiring design with clear silk-screen markings for easy assembly.

• Blackbox Logging: Large onboard memory for comprehensive flight data analysis.

Package Includes

• 1 x H743 Flight Controller
• 1 x 70A 4-in-1 ESC
• 1 x 35V 1000uF Capacitor
• 1 x XT60 Pigtail & Silicon Wire Set
• Mounting hardware (M3 Dampers & Screws)

Q: What processor does this flight controller use?
A: It uses a powerful STM32H743 MCU for responsive and low-latency flight control performance.

Q: What battery voltages does the ESC support?
A: The integrated 70A 4-in-1 ESC supports 3S to 8S LiPo batteries for high-power FPV setups.

Q: Is this stack compatible with Betaflight?
A: Yes — the stack is fully compatible with Betaflight firmware and digital communication protocols.

Q: What sensors are included?
A: It includes dual high-precision IMU sensors for stable flight data and control.

Q: Can this stack power all accessories?
A: Yes — multiple UART ports allow connection of GPS, telemetry, OSD, receivers, and other accessories.

Wiring Support Please refer to the "VIEW WIRING DIAGRAM" button above for the full technical pinout and connection guide.
