How long does it take to ship the Radiolink F722 Flight Controller - Pro 3-6S FC for ArduPilot & INAV?

We typically dispatch the Radiolink F722 Flight Controller - Pro 3-6S FC for ArduPilot & INAV within 24-48 hours. Standard global shipping to North America and Europe takes 7-12 business days.

Radiolink F722 Flight Controller – Pro 3-6S FC for ArduPilot & INAV

Name: Radiolink F722 Flight Controller - Pro 3-6S FC for ArduPilot & INAV - WYECS STORE
Brand: WYECS
SKU: WYECS-F722-FC
Price: 49.80 USD
Availability: InStock
Rating: 5 (1 reviews)

Original price was: $79.80.Current price is: $49.80.

Customer Reviews

★★★★★

5.0 out of 5

122 global ratings

MODEL:

Radiolink f722 Flight Controller

High-speed STM32F722 MCU for lightning-fast processing and ultra-smooth flight stability.
Triple-firmware compatibility with Betaflight, INAV, and ArduPilot for versatile mission profiles.
Integrated dual BEC (5V 2A and 9V 2A) to reliably power both analog and digital HD VTX systems.
Built-in 8MB Blackbox flash and OSD for real-time telemetry and comprehensive flight data analysis.
Features 5 full UARTs for seamless connection to GPS, ELRS receivers, and other peripherals.
Supports 3-6S LiPo input with a high-precision barometer for accurate altitude hold performance.

SKU WYECS-F722-FC Category Flight Controllers Tags 3-6S FC, ArduPilot, Betaflight, F722 FC, Flight Controller, FPV Electronics, High Speed FC, INAV, Radiolink Brand: RadioLink

The Radiolink F722 FC is a high-speed F722 Flight Controller designed for versatile performance. Compatible with Betaflight, ArduPilot, and INAV, it offers elite processing and reliable power for professional FPV builds on 3-6S LiPo.

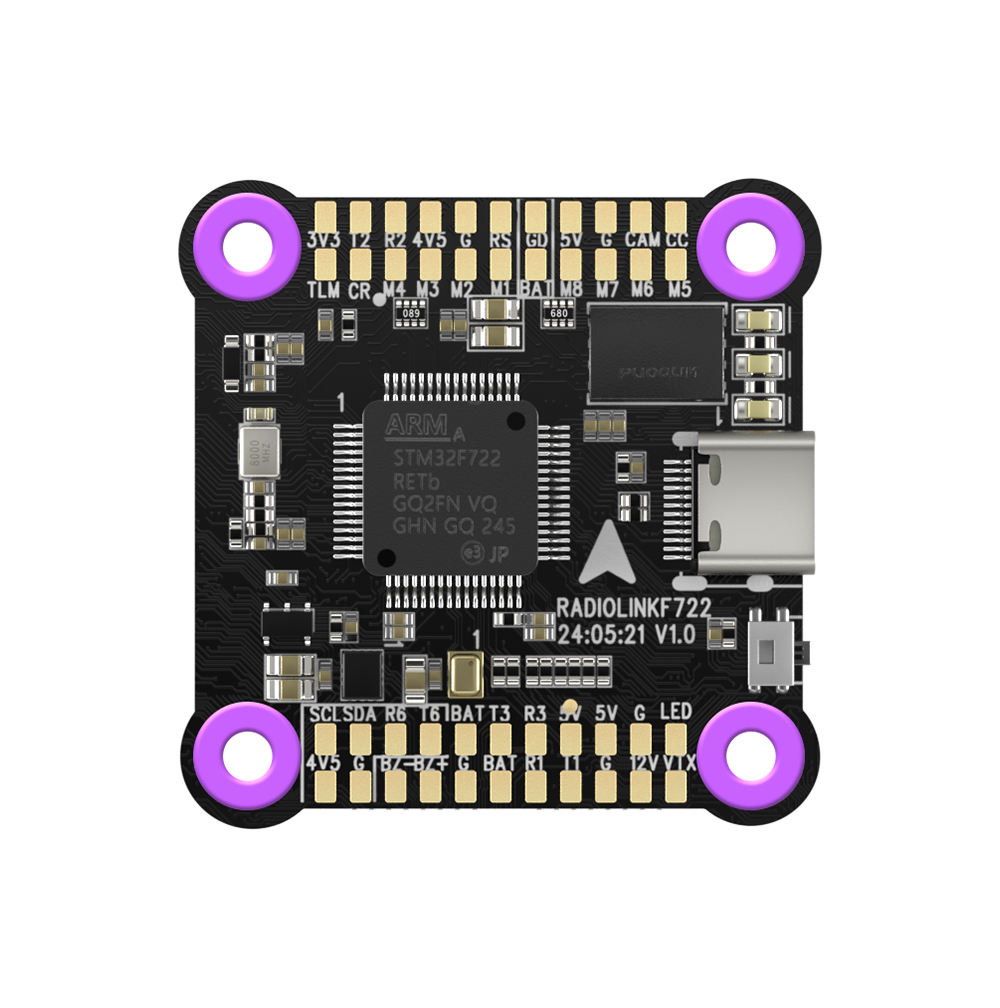

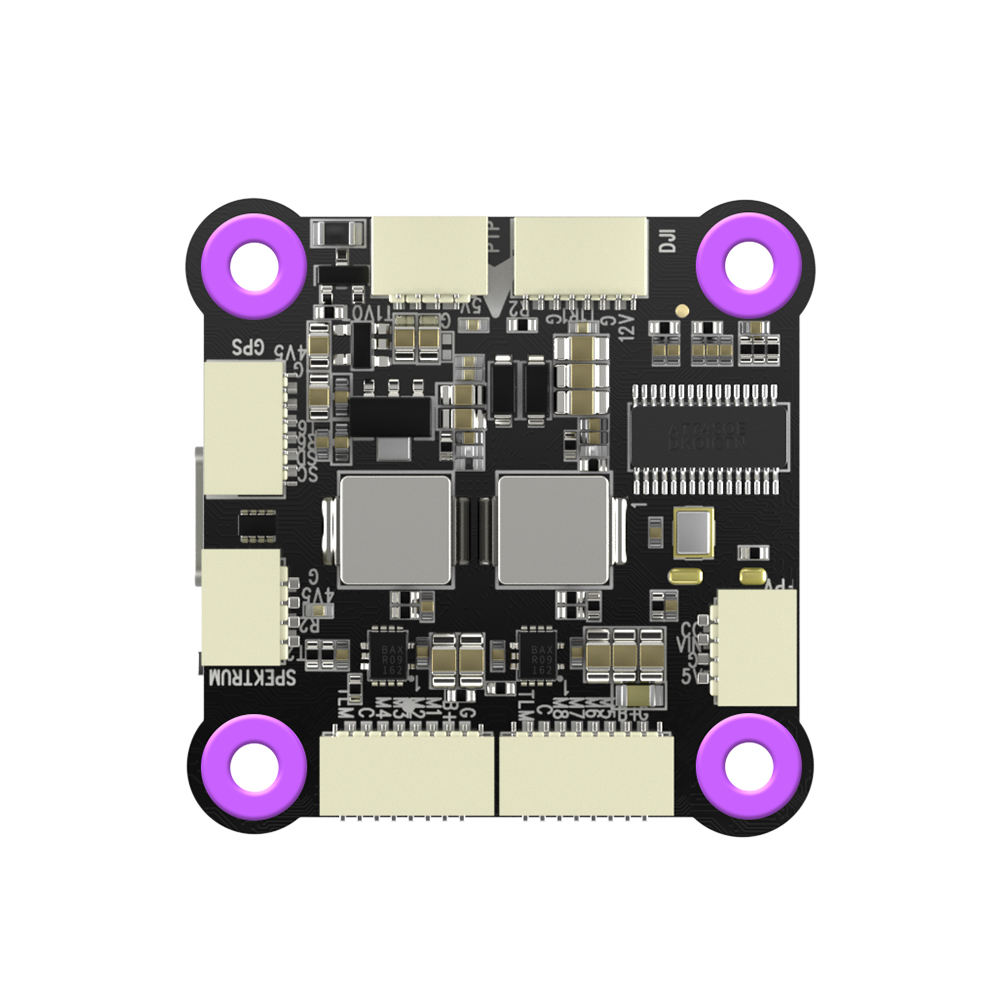

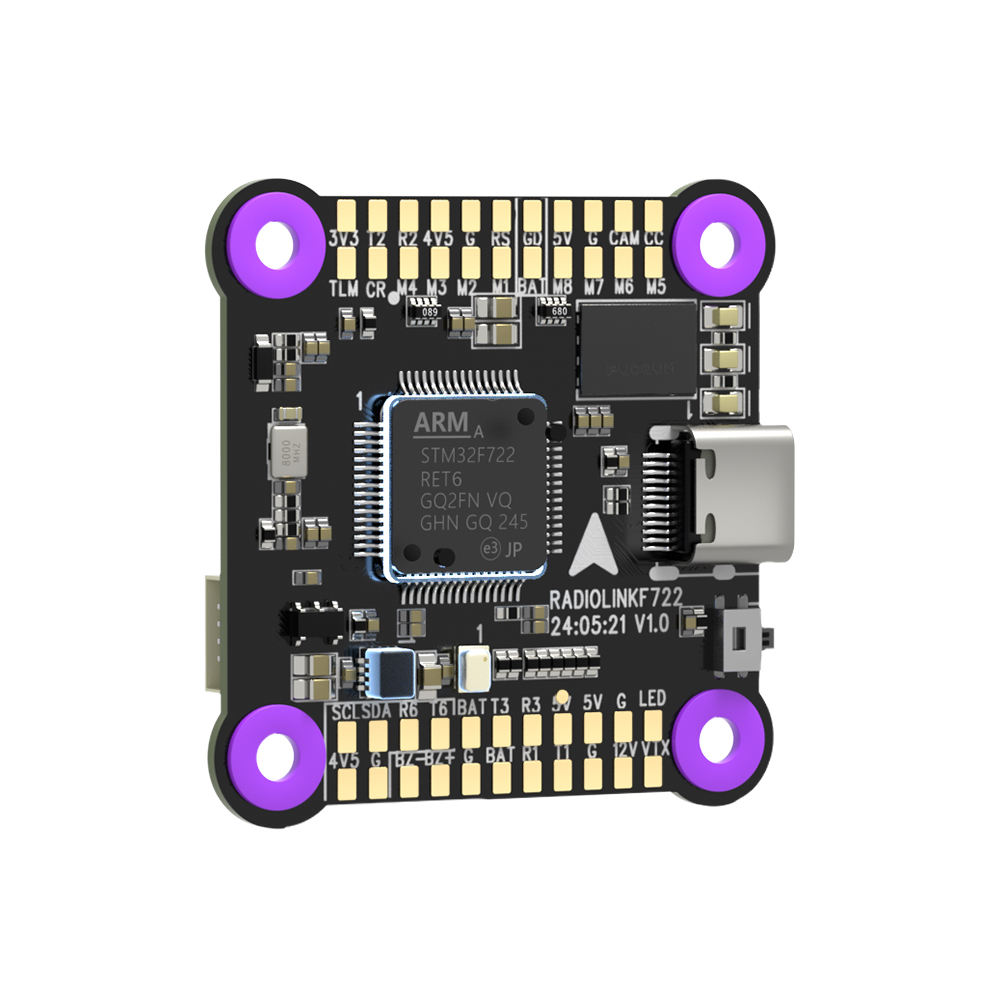

The Radiolink F722 FC is the ultimate command center for pilots who demand high-speed processing and multi-platform flexibility. Powered by the STM32F722 MCU, this F722 Flight Controller delivers the lightning-fast performance required for precise freestyle maneuvers and complex autonomous missions. Whether you are configuring a racing rig or a long-range cruiser, its status as a fully compatible ArduPilot F722 FC and INAV Flight Controller ensures you have the professional tools needed for every flight.

As a truly High-Performance FPV FC, the Radiolink F722 includes a built-in OSD, a precision barometer, and an 8MB Blackbox for detailed flight data logging. It supports a wide 3-6S LiPo input range and features a robust dual BEC system (5V 2A and 9V 2A) to power your digital VTX and external electronics without signal interference. With 5 dedicated UART ports and plug-and-play compatibility for modern GPS and receivers, this board is engineered for clean, efficient, and elite-grade drone builds.

Optimal PCB Layout and Routing

With more than 10 years of experience in independent flight control design, repeated optimization of PCB layout and routing,

achieving a perfect combination of high current and low noise, ensuring sensor accuracy.

Unique Automation Software Testing System

With the independent research and development of multiple unique flight control systems, we have designed a full-featured

automation software testing system from sensor to connection ports and interface. The test efficiency and quality assurance are

far superior to traditional manual tests, ensuring the quality of every function of every F722.

Multiple Interfaces

Supports up to 8 channels output and is adaptable to a 2-8 axis multi-rotor including X8 models.

A combination of socket interface and solder pad makes it more convenient to connect external devices.

Cost-effective Solution

Flight controller F722 works with the 16 channels remote control system T16D, the 16 channels receiver R16F, the 50 Centimeters

Positioning Accuracy GPS TS100, the DJI/CADDX high-definition digital image transmission, and HD Goggles, and the ELRS long-range

module, almost all the parts of the RC drone you need we can offer, realizing the super adaptability of various cost-effective

solutions such as high-speed aerial photography and cinematography solutions.

Packing List

Key Features

STM32F722RET6 processor with 216MHz frequency for ultra-fast control response
ICM42688 gyroscope and SPL06 barometer for high-precision flight stabilization
128MB blackbox for real-time flight log storage
Supports HD digital & analog video transmission via plug-and-play connectors
5 UART ports, SBUS/CRSF signal input, and Type-C USB port
Betaflight and iNav firmware support, with firmware name: RADIOLINKF722
ESC telemetry support for DShot, OneShot, PWM
Built-in OSD module (AT7456E) with graphical gesture visualization
12V BEC Switch controllable via transmitter
Compatible with 2–8 axis multi-rotors, airplanes, flying wings, cars, boats, bait boats, and robots
Operational temperature: -30°C to 85°C

Specifications

Dimension & Weight

Item	Value
Dimensions	30.5 x 30.5mm (1.2″ x 1.2″)
Weight	9.5g (0.34oz)

Hardware

Component	Details
Processor	STM32F722RET6
Gyro	ICM42688
Barometer	SPL06-001
Blackbox	128MB, onboard flash
OSD Module	AT7456E, integrated

Connector and Interfaces

Feature	Specification
Channel Output	M1–M8
UART Ports	5
USB Port	1 × Type-C
HD Digital Video Transmission	Plug-and-play support
Analog Video Transmission	Plug-and-play support
ESC Protocols	PWM, two-way DShot, OneShot
Signal Input	SBUS/CRSF
LED Strip, Buzzer, RSSI Pads	Supported via dedicated soldering pads
Battery Scale	110
Betaflight Cam Setup Solder Pads	Supported
OSD Telemetry	Supported, integrated module
I2C	Supported

Firmware

Item	Details
Firmware Type	Betaflight, iNav
Firmware Name	RADIOLINKF722

Power Supply

Item	Specification
Input Voltage	3–6S
BEC	3.3V/300mA; 4.5V/500mA; 5V/3A; 12V/3A
12V BEC Switch	Supported (User1 controlled)

Operating Environment

Parameter	Range
Operating Voltage	3S to 6S Lipo
Temperature	-30°C to 85°C

Optimized PCB Layout and Routing

With over 10 years of experience in flight controller design, Radiolink F722 adopts an optimized PCB layout to minimize noise and ensure accurate sensor data. High current and signal paths are isolated to enhance flight stability and reduce interference.

Automation Software Testing System

Each F722 undergoes strict quality control with a full-featured automation test system, ensuring reliable operation of sensors, interfaces, and power rails. This system improves efficiency and quality beyond traditional manual testing.

Integrated OSD Module

With built-in AT7456E OSD, the F722 allows real-time on-screen display of flight information such as flight direction, distance, altitude, GPS status, battery voltage, throttle, and more—no external OSD required. Perfect for immersive FPV flying.

12V BEC Switch with Transmitter Control

F722 allows the 12V BEC to be toggled via transmitter switch. Ideal for image transmission power management, it allows users to directly control video systems’ power and frequency from their transmitter.

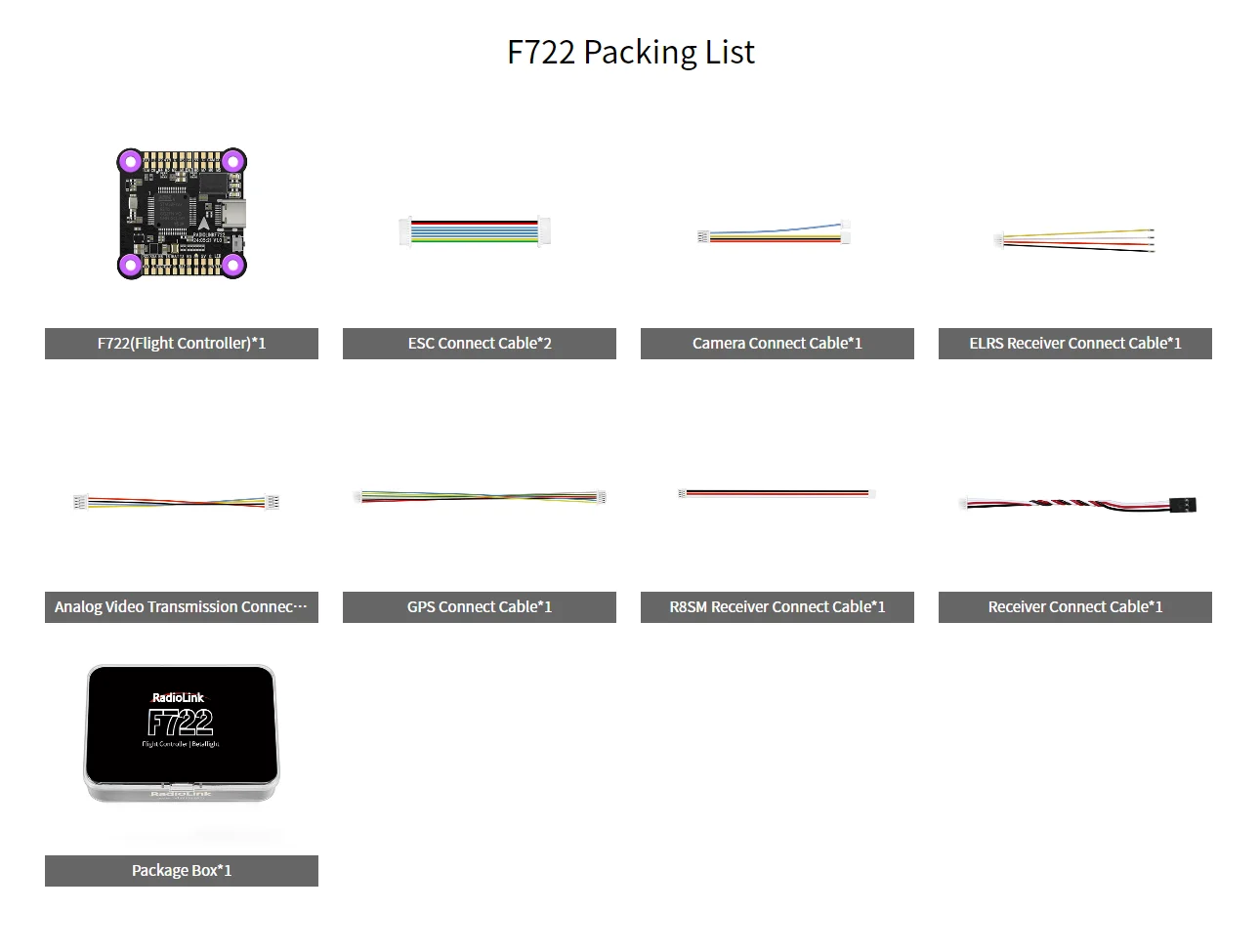

Packing List

1× F722 Flight Controller
2× ESC Connect Cables
1× Camera Connect Cable
1× ELRS Receiver Connect Cable
1× Analog Video Transmission Cable
1× GPS Connect Cable
1× R8SM Receiver Connect Cable
1× Receiver Connect Cable
1× Package Box

Application Scenarios

Compatible with a wide range of models, including:

2-8 axis multi-rotors
FPV racing drones
Fixed-wing aircraft
Helicopters
Cars, RC boats, bait boats
Robots and lawn equipment
