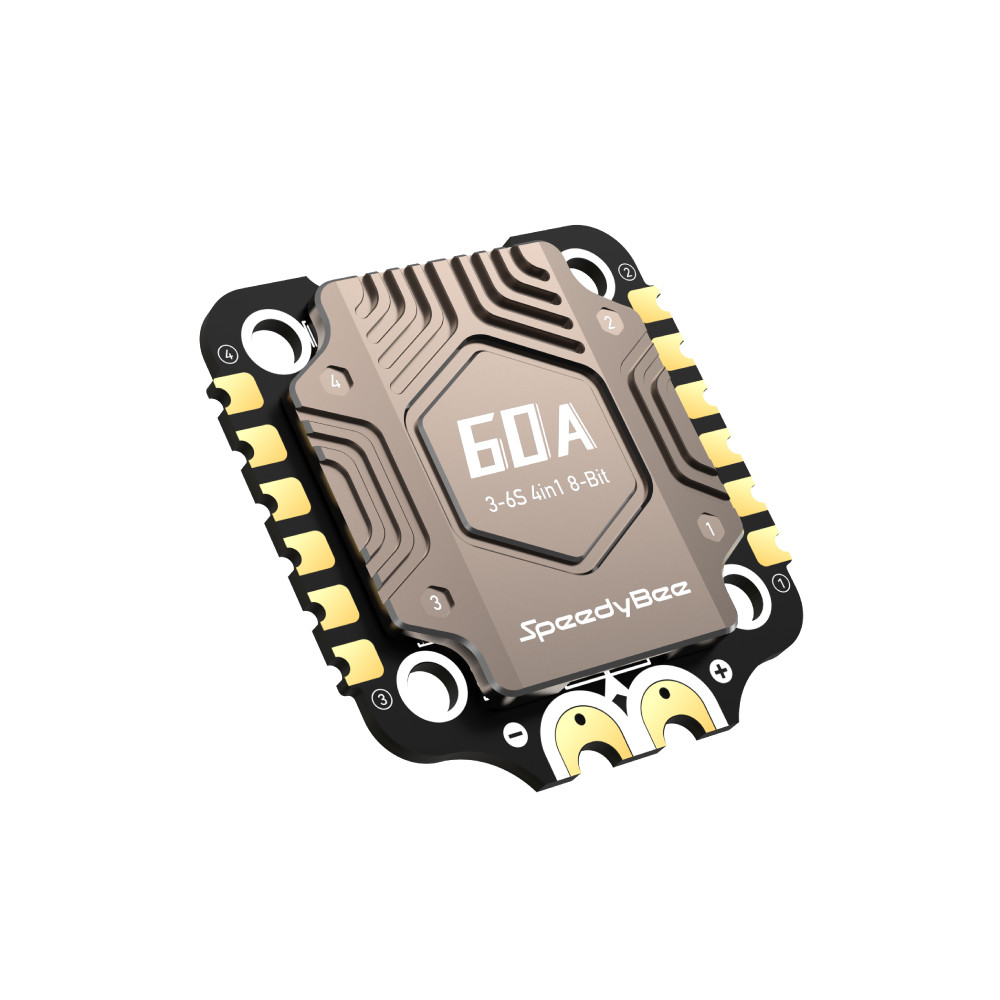

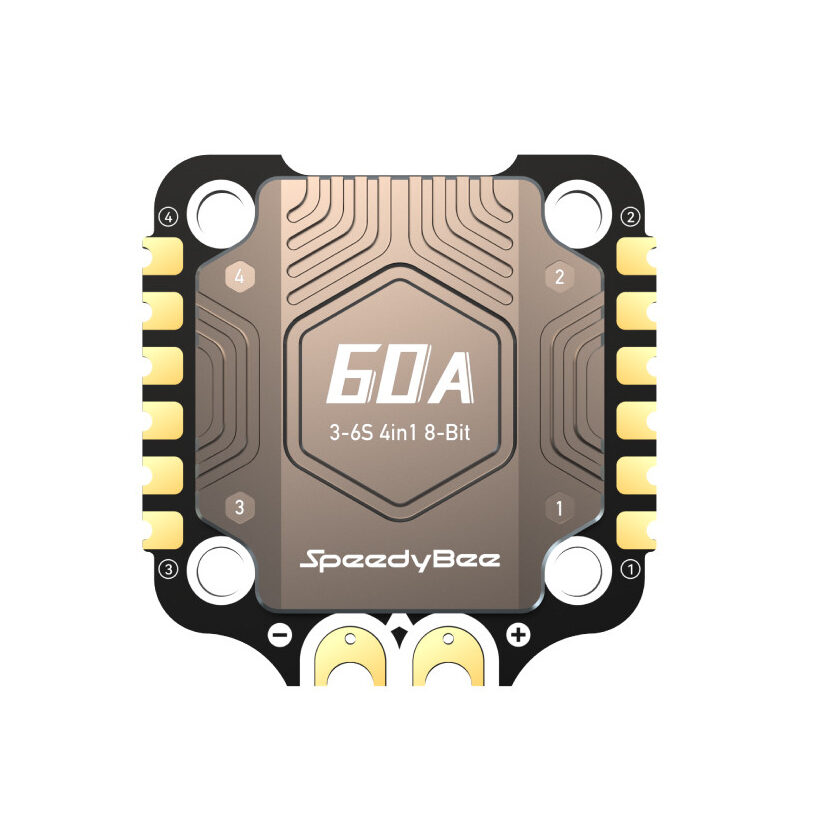

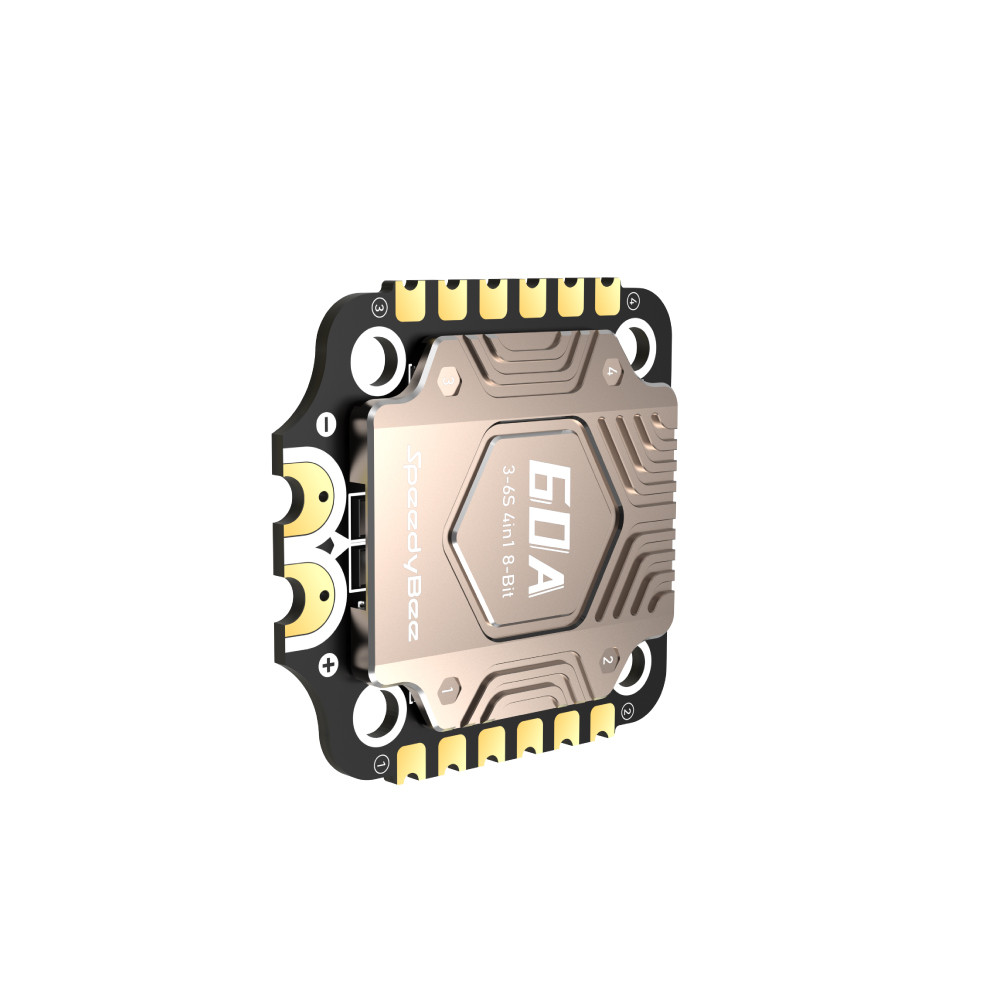

SpeedyBee BLS 60A 4-in-1 ESC – Heavy-Duty FPV Power

The SpeedyBee BLS 60A 4-in-1 ESC is a heavy-duty power solution for FPV pilots seeking reliability and efficiency. As a high-output 60A FPV ESC, it provides 60A continuous current and up to 80A burst, perfect for aggressive 3-6S drone maneuvers. This ESC is built with a 4-layer 2oz copper PCB to handle high-current loads and ensure longevity in demanding environments.

Integrated into these Racing Drone Electronics is a custom aluminum heatsink, which maximizes heat dissipation and maintains performance during long flights. The BLHeli_S 60A ESC firmware delivers a crisp, linear throttle feel and supports standard protocols like DShot600. For enhanced reliability, an onboard TVS diode protects against dangerous voltage spikes. Whether you are building a freestyle ripper or a cinematic drone, the SpeedyBee 60A ESC offers the raw strength and protective features required for top-tier performance.

ESC upgraded to 60A with heat sink.

The PCB design has been refined, with copper thickness increased from 2 to 3 ounces and enhanced MOSFET specifications. Continuous current now reaches 240A across all channels, peaking at 320A for 10 seconds. An added aluminum alloy heat sink ensures efficient MOSFET heat dissipation for stable ESC output. It delivers a genuine 60A output, primed for your baddest high-powered 6S motors.

TVS Protective Diode + 20 Onboard Filtering Capacitors + 1000uF High-Capacity Electrolytic Capacitor = Upgraded ESC Protection

We've included a TVS diode that effectively absorbs voltage spikes during power-up and crash events. The board features 20 high-quality SMD filtering and energy storage capacitors. These, along with the standard 1000uF high-frequency, low-ESR electrolytic capacitor, effectively filter out signal interference from the power supply to the flight controller's gyroscope, ensuring smoother flight performance.
