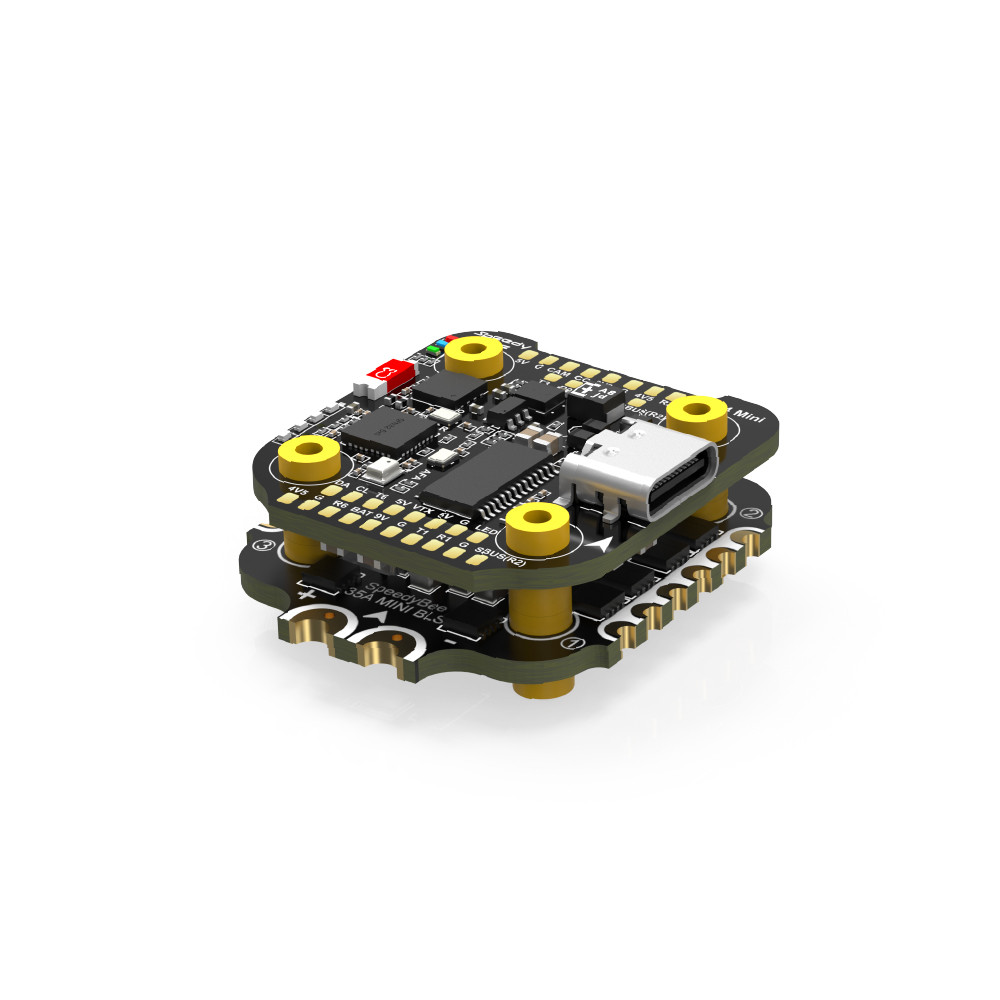

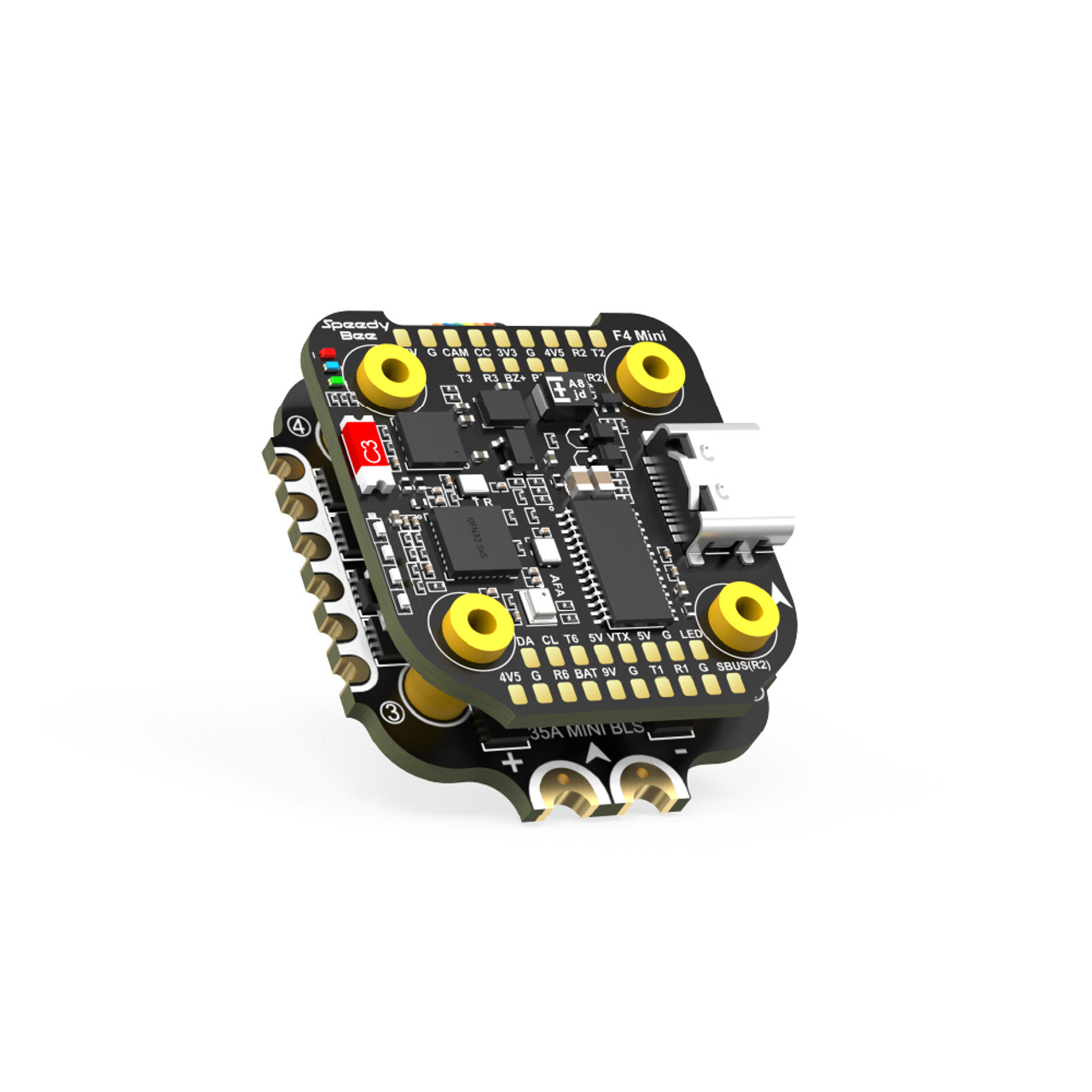

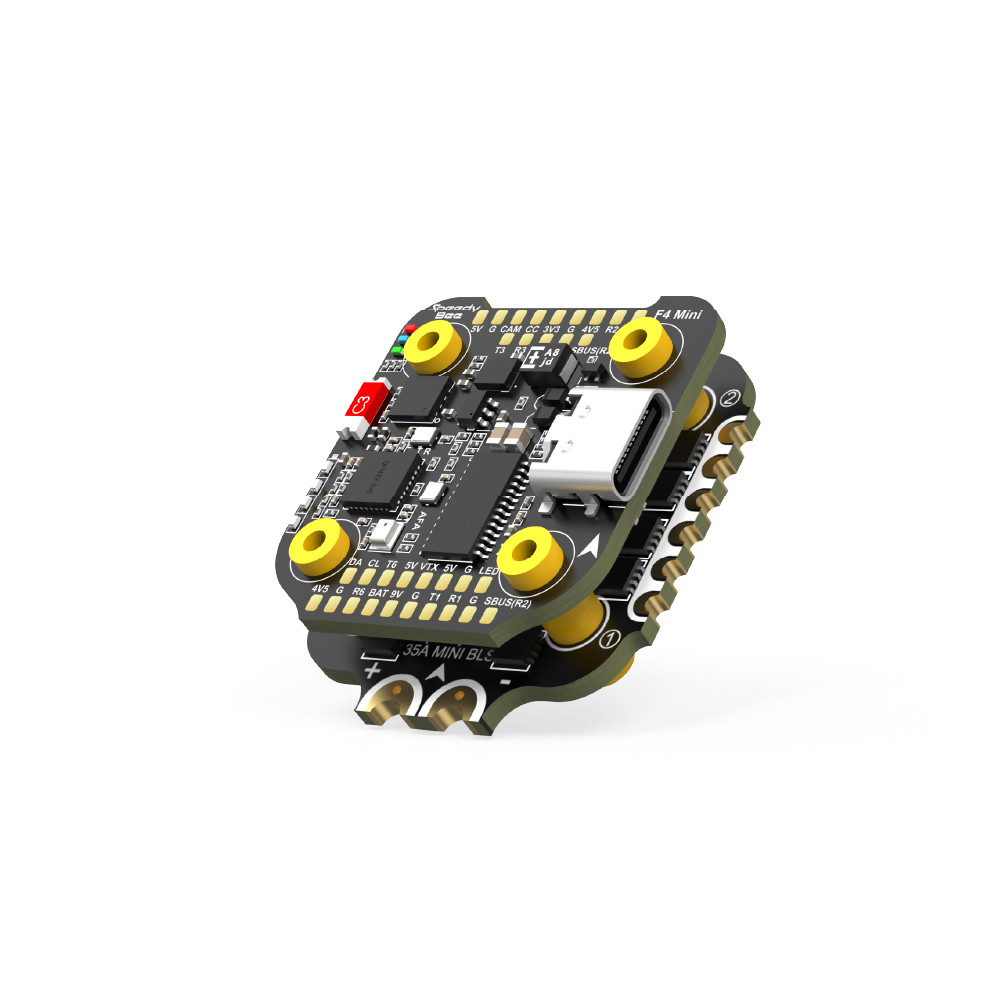

SpeedyBee F405 Mini 35A Stack – 20×20 Wireless FPV Stack

Utilizing an upgraded F405 flight controller chip with better performance than the F411, it features a built-in Bluetooth chip for seamless wireless Betaflight tuning. The board comes with a 4-level battery voltage display, built-in barometer, and supports connectivity to all DJI Air Units. It offers 4 available UART ports, and a dual BEC setup with 5V 2A and 9V 3A outputs.

35A 4-in-1 BLHeliS Mini ESC: This ESC provides four synchronized outputs with a continuous current of 35A, delivering strong power to drive all 2-4 inch and lightweight 5-inch quadcopters via 4-6S battery. Equipped with a TVS transient suppression diode onboard, it better absorbs surge voltage, providing enhanced protection for the ESC.

Power the quad, connect the SpeedyBee app via Bluetooth, configure the UART Ports,PID,OSD and every other settings on this flight controller. Also, every parameter of the BLHeli_S ESC in this stack can be set via the app.

With this Bluetooth stack, even micro drones become easy to tune—no need to worry about the hassle of inserting USB cables into the flight controller. Simply tune your drone wirelessly through the App, and say goodbye to wires and worries!

6-layer 2oz PCB plus optimized circuit design equals stable and strong current output. The four-channel continuous 140A output can reach 30 seconds*.

The use of Japanese TDK filtering SMT capacitors and the onboard TVS protective diode, further enhances your flight experience, providing a seamless and reliable performance. The stack underwent rigorous pressure testing with various 5-inch freestyle and racing drones, confirming its powerful capability to effortlessly drive any 2-4 inch and lightweight 5-inch drones.

Equipped with the renowned brand MaxLinear's LDO power supply chip, the gyroscope receives independent power, boosting surge protection capacity by 320%. Additionally, built with a 100uF ultra-large filtering tantalum capacitor, guarding the gyroscope's data from interference caused by the power source. Each posture and movement during flight receives precise responsiveness, allowing you to fully experience the pure beauty of flying!

On the side of the flight controller, you will find a 4-level battery capacity indicator. As soon as you connect the battery, you can instantly see the battery level, saving you the hassle of needing to put on goggles to check the battery status.

Are you still using a computer to change motor directions? With this stack, when you finish your build, connect to the SpeedyBee app, change the motor directions just in a few simple steps*. Then take off.

* To use this feature, go to the App > Motors > Motor Direction Settings.

The flight controller has two independent 9V 3A BEC and 5V 2A BEC, supports various analog image transmissions above 5V, and also supports DJI O3 Air Unit/Link / Vista/Air Unit V1

Have you ever experienced that the stack holes of your frame did not fit the stack you got? This stack is perfectly compatible with M2/M3 screws. What’s more, two sets of M2 and M3 screws + silicone grommets are included in the package!

The ESC is built with TVS protective diode to absorb the voltage spike when you plug in the battery, or during crashes that block your props. We also provide a Rubycon 470uF Low-ESR capacitor, ensuring clean data from the gyro to the FC.
