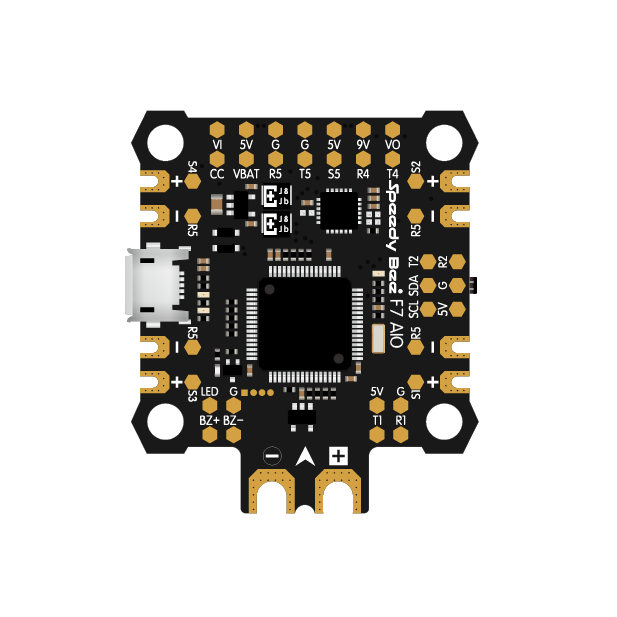

SpeedyBee F7 AIO 35A – Pro Wireless F722 Flight Control System

The SpeedyBee F7 AIO is a revolutionary all-in-one solution for pilots who demand high-end performance in a miniature footprint. Powered by the STM32F722 MCU, this F722 Flight Controller provides the low latency and processing speed required for professional-grade flight maneuvers and precision control. Unlike standard boards, this Wireless FPV AIO allows you to tune PIDs, update firmware, and adjust settings via the SpeedyBee App directly from your smartphone, eliminating the need for USB cables in the field.

The integrated 35A Whoop AIO supports 3S to 6S LiPo input, providing reliable and continuous current for high-KV motors on toothpick or cinematic whoop frames. As a premium piece of Racing Drone Electronics, it includes an 8MB Blackbox for precise data logging and analysis. With its standard 25.5x25.5mm mounting pattern and lightweight design, the SpeedyBee F7 AIO delivers the durability and advanced wireless features needed to dominate the air in any sub-250g build.

Support 4in1 ESC

8 PIN connector or Solder Pads Two connection methods

Better support for high currents

5*5.0V/1*9.0V Output(Max.2.5A)

BLE Module Integrated 0 configuration

Setting the FC parameters via mobile device

iOS 10.0+：iPhone4S, iPad 3rd Gen and later  APP Store

Android 4.3+:  Google Play, Download

＊Throttle Armed, the Bluetooth module will deactivate automatically Throttle Disarmed, the Bluetooth module will activate automatically

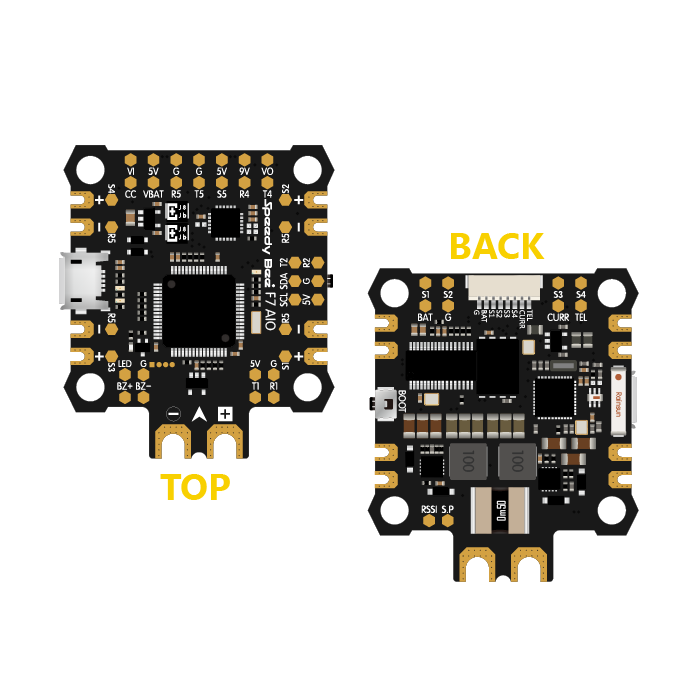

Wiring Guide

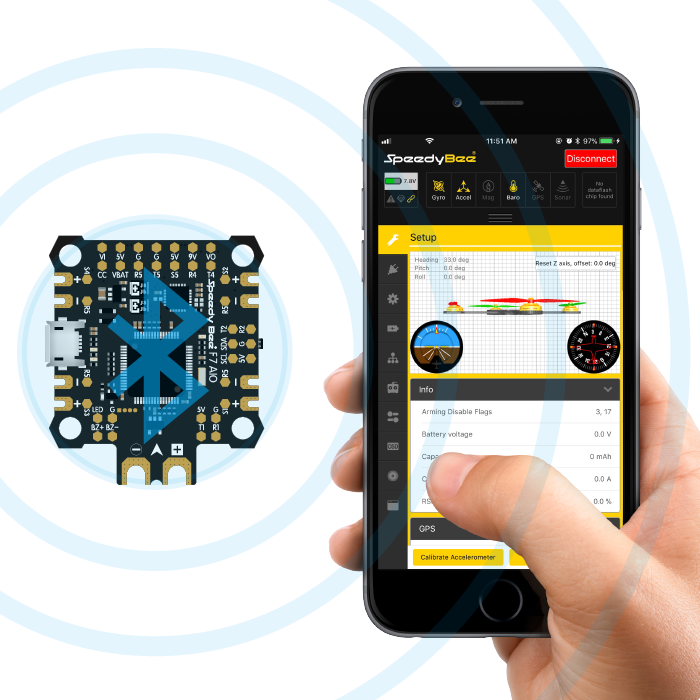

Built-in Bluetooth Chip

Zero configuration, connect to the Speedy Bee App directly after powering on, easy to set the FC parameters

Package
