$148.80 Original price was: $148.80.$128.80Current price is: $128.80.
Shop the SpeedyBee F7 V2 45A Stack. Features wireless firmware flashing, 45A BLHeli_32 ESC, and DJI support. High-performance F722 stack available at WYECS.

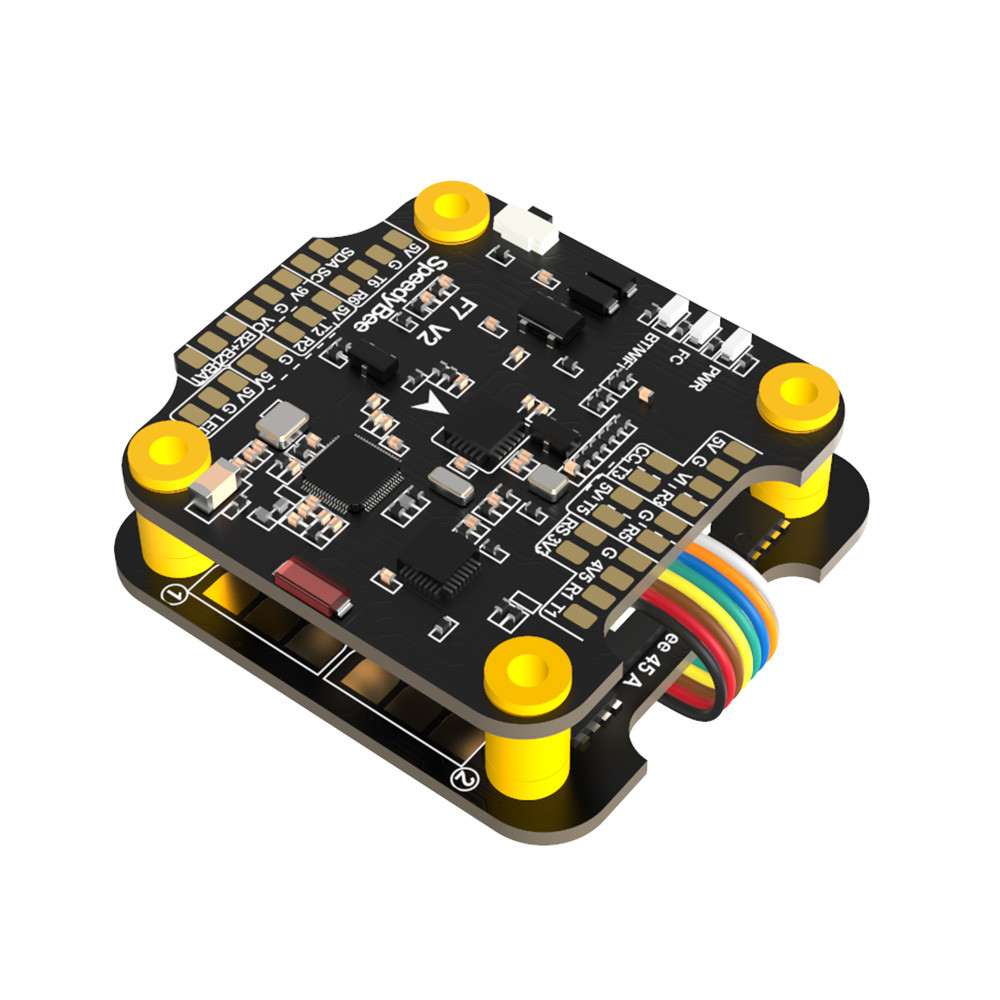

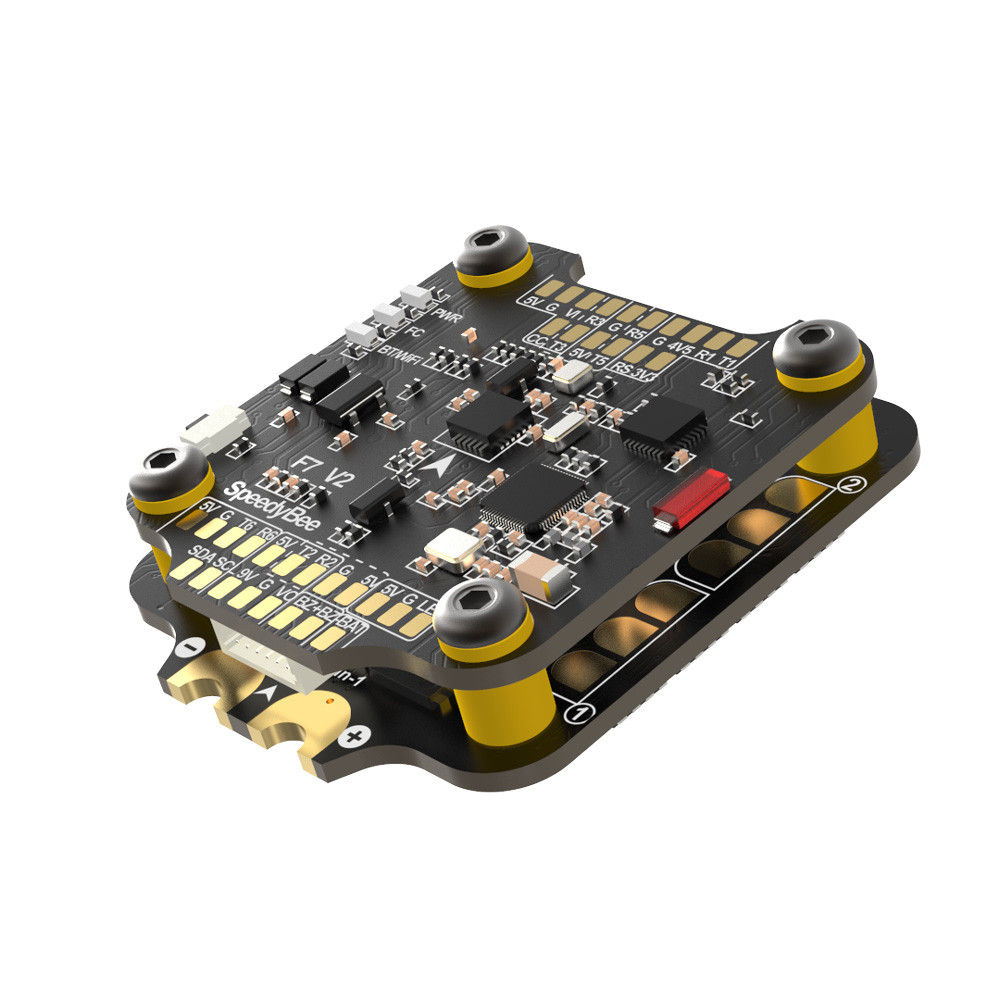

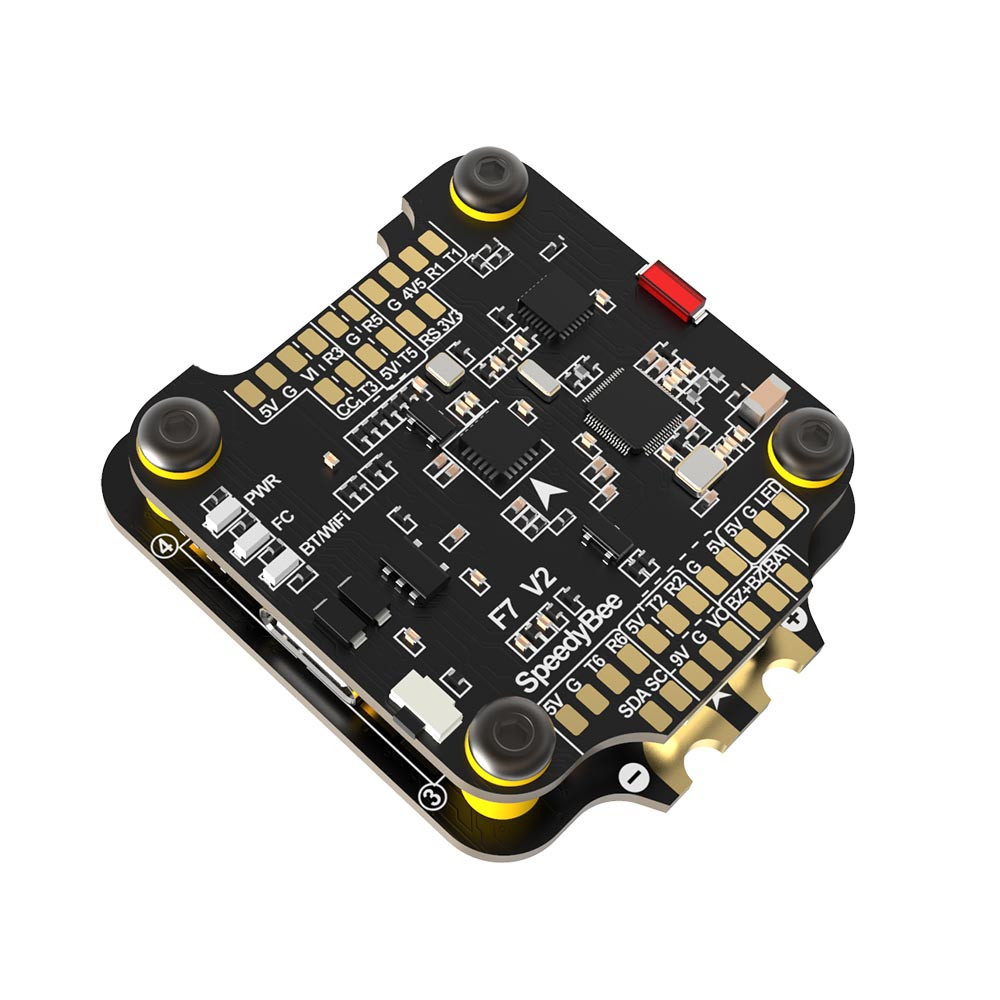

The SpeedyBee F7 V2 Stack is a game-changer for FPV pilots seeking both power and convenience. As a high-end Wireless FPV Stack, it allows you to flash firmware and analyze Blackbox data via the SpeedyBee app—completely eliminating the need for USB cables in the field.
The heart of this build is the F722 Flight Controller Stack, which features a massive 500MB onboard flash and native DJI Plug and Play Stack support for a clean, solder-free HD setup. Paired with a robust 45A BLHeli_32 ESC, this system supports 3-6S power and provides up to 128KHz PWM frequency for the smoothest motor response and flight experience. Whether you are building a high-speed racing rig or a professional octocopter, the F7 V2 Stack delivers unrivaled reliability and "geek-level" features.
| MCU | STM32F722 |
| IMU | MPU6000 |
| USB | Type-C |
| Barometer | BMP280 (I2C) Warning:Do not apply conformal coating on the berometer because the air hole can be clogged. |
| OSD | BetaFlight OSD w/ AT7456E chip |
| BLE | Support, used for Flight Controller configuration |
| WiFi | Support, used for data transfer, e.g firmware flashing, and Blackbox analysis. |
| DJI Air Unit slot | A full DJI Air Unit JST slot onboard |
| BlackBox | 16MB onboard dataflash |
| Current Sensor | 1 : 10 (Scale 168) |
| BetaFlight Camera Control Pad | Yes |
| Power input | 3-6S |
| 5V BEC x 1 | 5V output x 7 , 6 pads, and a BZ+ pad used for Buzzer, the maximum load current in total is 2.5A. |
| 9V BEC x 1 | 9V output x 2 , 1 pad and another one used for DJI slot, the maximum load current in total is 2.5A. |
| 4.5V power output | 1 * 4.5V output pad |
| 3.3V power output | 1 * 3.3V output pad, the maximum load current is 500mA. |
| ESC signal | M1 – M4 |
| UART | Full UART * 5(UART1, UART2, UART3, UART5, UART6) |
| ESC Telemetry UART | UART4 RX |
| I2C | Used for external Magnetometer, Sonar, etc. |
| LED pin | Used for WS2812 LED |
| Buzzer | BZ+ and BZ- pad used for 5V Buzzer |
| Boot button | Used to easy enter DFU mode |
| RSSI input | RSSI input solder pad |
| SmartPort | Use any TX pad of UART for the SmartPort feature. |
| Support Flight Controller Firmware | BetaFlight(Default), EMUFlight |
| Target name | SPEEDYBEEF7V2 |
| Mounting | 30.5 x 30.5mm, 4mm hole size |
| Dimension | 41 x 38 x 6.9mm |
| Weight | 9g |
| Firmware | BLHeli32 SpeedyBee 4in1 |
| Continuous Current | 45A * 4 |
| Burst Current | 55A(10S) |
| ESC Protocol | DSHOT300/600/1200 |
| Power input | 3-6S Note: Strongly recommended to solder the filtering capacitor between VBAT”+” and” -“ |
| Power output | VBAT |
| Current Sensor | Support (Scale 168) |
| ESC Telemetry | Support |
| Mounting | 30.5 x 30.5mm, 4mm hole size |
| Dimension | 41 * 45 * 6.5mm |
| Weight | 12.5g |
| Supported Motor | 1900KV or below should be needed for 6S |
