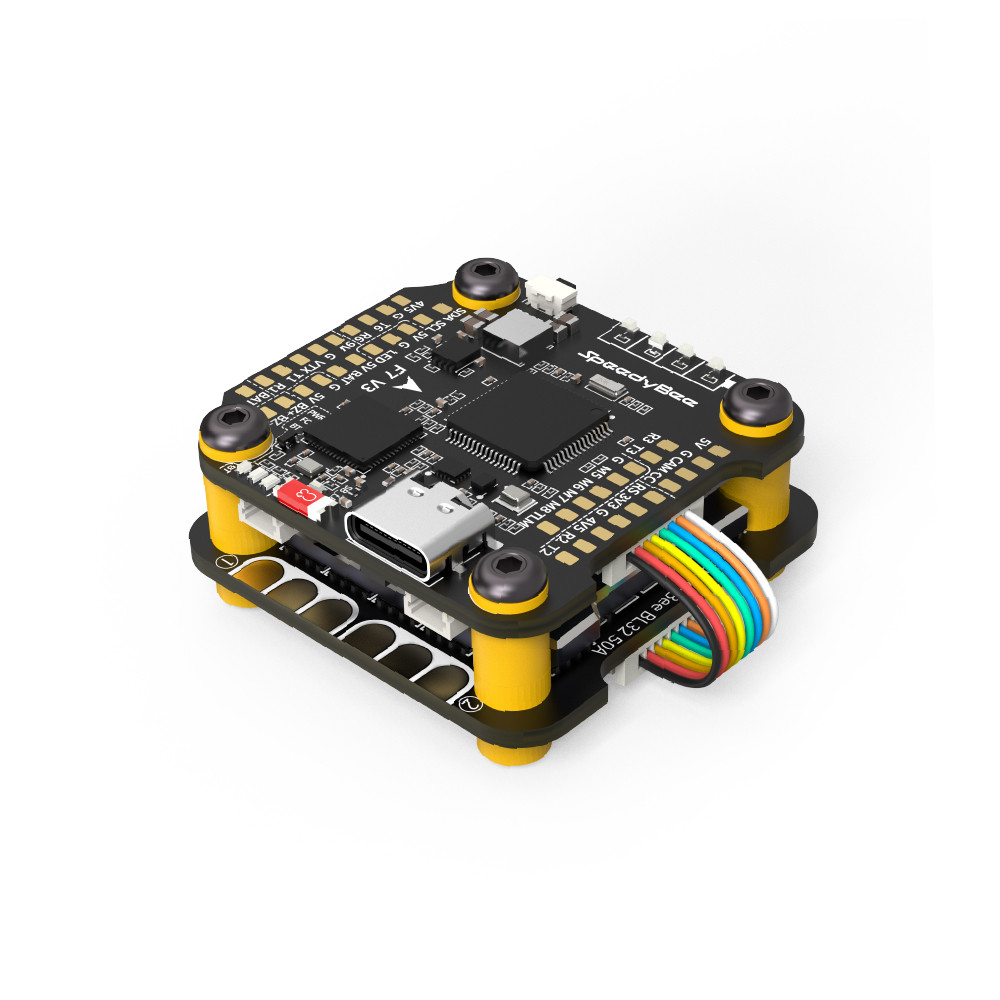

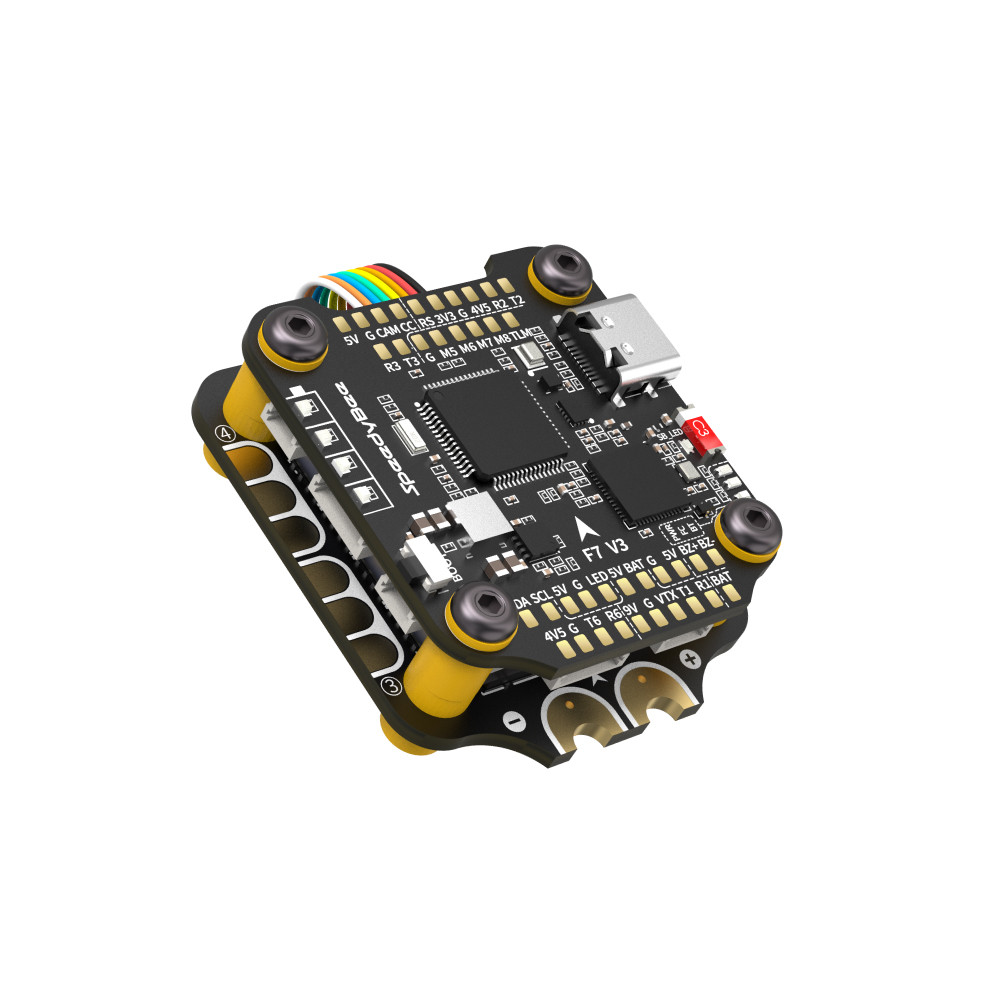

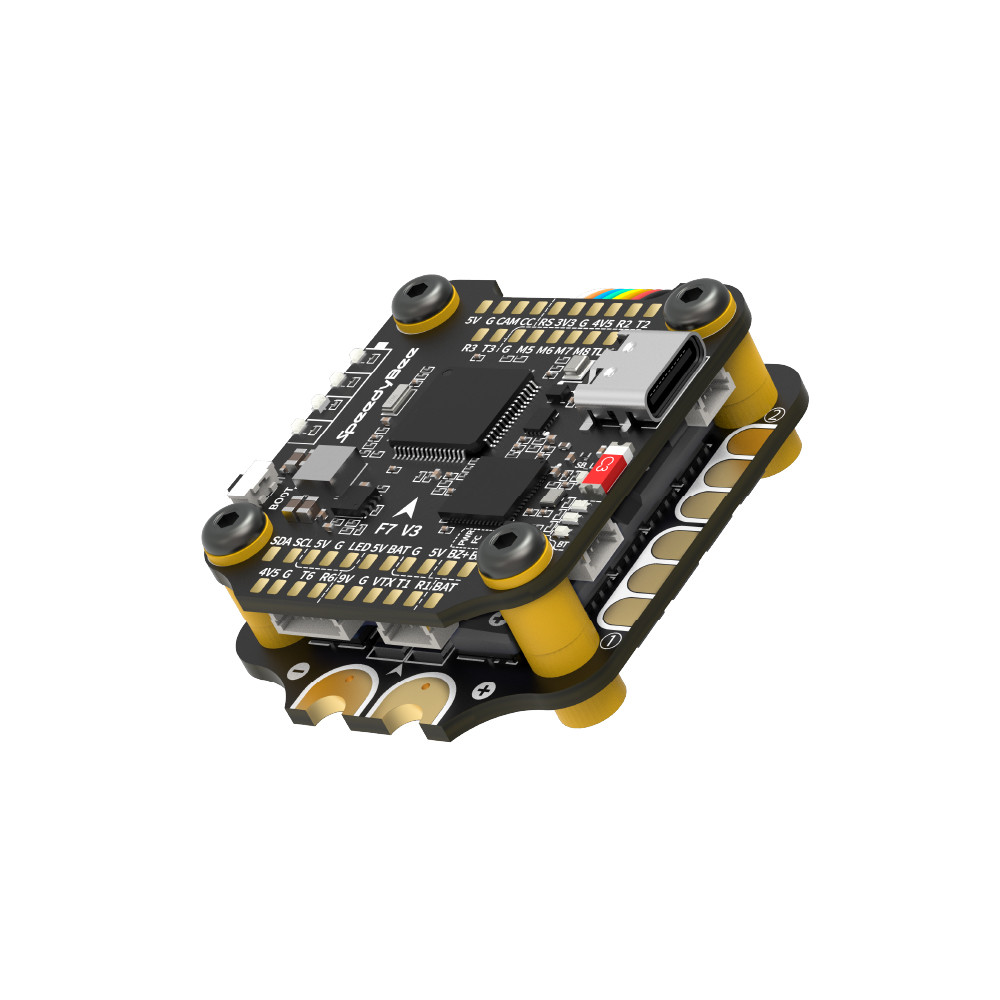

SpeedyBee F7 V3 BL32 50A 30×30 Stack – Pro Wireless F722 Flight System

The SpeedyBee F7 V3 50A Stack is a flagship flight system engineered for pilots who demand precision and convenience. At its heart, the STM32F722 MCU powers the F722 Flight Controller, providing lightning-fast processing and low latency for a locked-in flight feel. This 50A FPV Stack is paired with a high-performance 50A BLHeli_32 ESC, which utilizes 32-bit firmware to deliver ultra-smooth throttle response and support for up to 128KHz PWM frequency on 3-6S builds.

As a leading solution in Racing Drone Electronics, the SpeedyBee F7 V3 Stack allows for full wireless configuration and firmware updates via the SpeedyBee App, eliminating the need for USB cables in the field. The ESC is equipped with a custom aluminum heatsink to maximize heat dissipation during aggressive maneuvers. With a massive 500MB onboard flash for Blackbox logs, built-in battery indicators, and dedicated plug-and-play ports for DJI Digital VTX, this stack provides a clean and powerful foundation for any professional racing or freestyle drone.

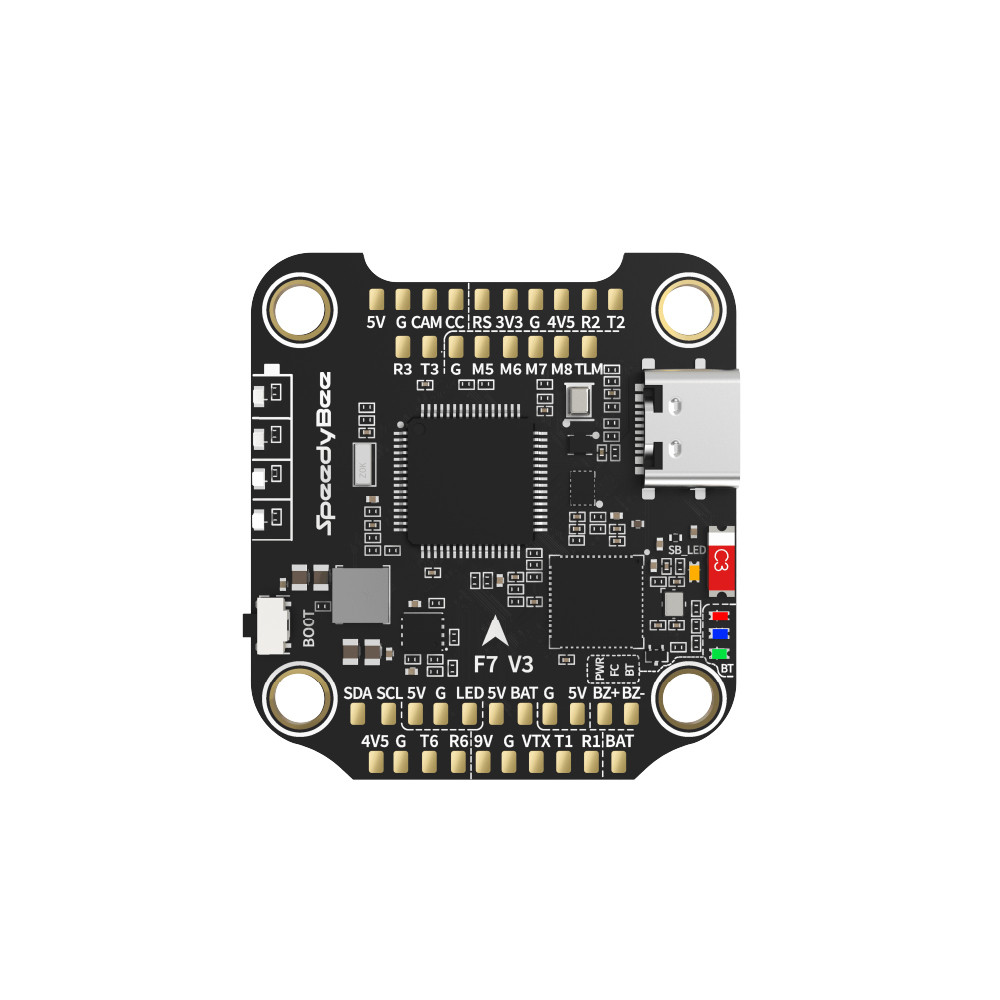

SpeedyBee F7 V3

PREMIUM SPEC. AFFORDABLE PRICE

Flash your firmware 33% faster wirelessly + full FC configuration

Built with a better Bluetooth/WiFi 2-in-1 chip for 33% faster wireless data transfer. Update FC firmware with your smartphone in just 1 minute! Connect this FC via Bluetooth and fully configure any setting for Betaflight/INAV as you want.

Get your Blackbox data in 1 minute anytime, anywhere

With an optimized algorithm and upgraded Bluetooth/WiFi chip, you can dive into your Blackbox data every time you land your quad. Just take your smartphone out, connect, and download your flight in 20 seconds. The path to progress has never been easier.

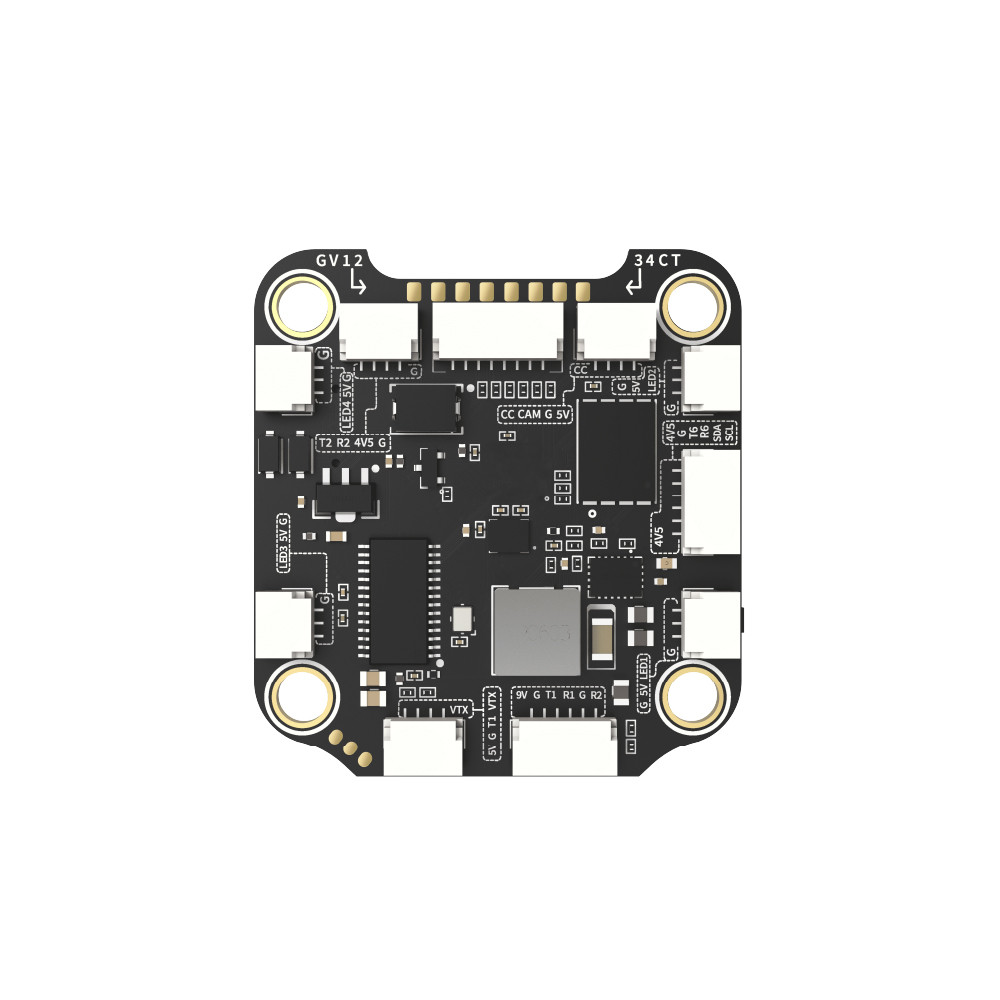

Hate soldering? Just plug them all in!

It’s 2022, so having a plug vs soldering option is a must! Plug in your digital video transmitter, receiver, camera, VTX, and GPS to complete your build in no time. Also comes with 4x LED plugs so you can light up your quad with no headache. Prefer soldering? Just flip the board and start working on it.

Change your motor direction wirelessly

Finishing your latest build? Just replaced your motor after a crash? Take your smartphone out, and configure your motor direction wirelessly with the latest SpeedyBee app. Works for all BLHeli32 / BLHeli_S / BlueJay ESCs.

8 motors output, perfect for your X8 cinelifters!

There’s no other X8 flight controller better than this. Forget about crawling through your massive build just to plug in that USB cable. Just take out your phone to configure that X8 monster wirelessly before that challenging commercial shot. Professional FPV pilots got no time to waste.

Light up your quad in no time with 4x LED plugs

Need more visibility at night? Just plug in your LEDs and blaze the darkest trail you can find, no soldering required. With just one tap on the Boot button, you can cycle through all different LED presets* and pick the one you love!

*Or long press the boot button to switch to Betaflight LED mode

Forgot your LiPo checker? Just look at the FC!

Built with a 4-level LED battery indicator, now you can fly anywhere worry-free - even without your lipo checker!

32MB (typical FC memory) X 16 =500MB onboard Blackbox flash memory

Store up to 100 complete flights with our huge 500MB onboard Blackbox flash memory. Or keep your encrypted Area 51 files in it for your top-secret Man in Black mission. Whatever suits your tactical purpose.

*The Flash memory chip manufacture calculates the capacity by a rate of 1000(instead of 1024), so the display capacity on your computer will be slightly less than 500MB.

And packed with other useful features

● 9V 4A + 5V 2A individual BECs ● Power your GPS with a USB cable - no battery needed ● 22mm cutouts for FPV camera in your tight build ● Built-in barometer for accurate height calculation

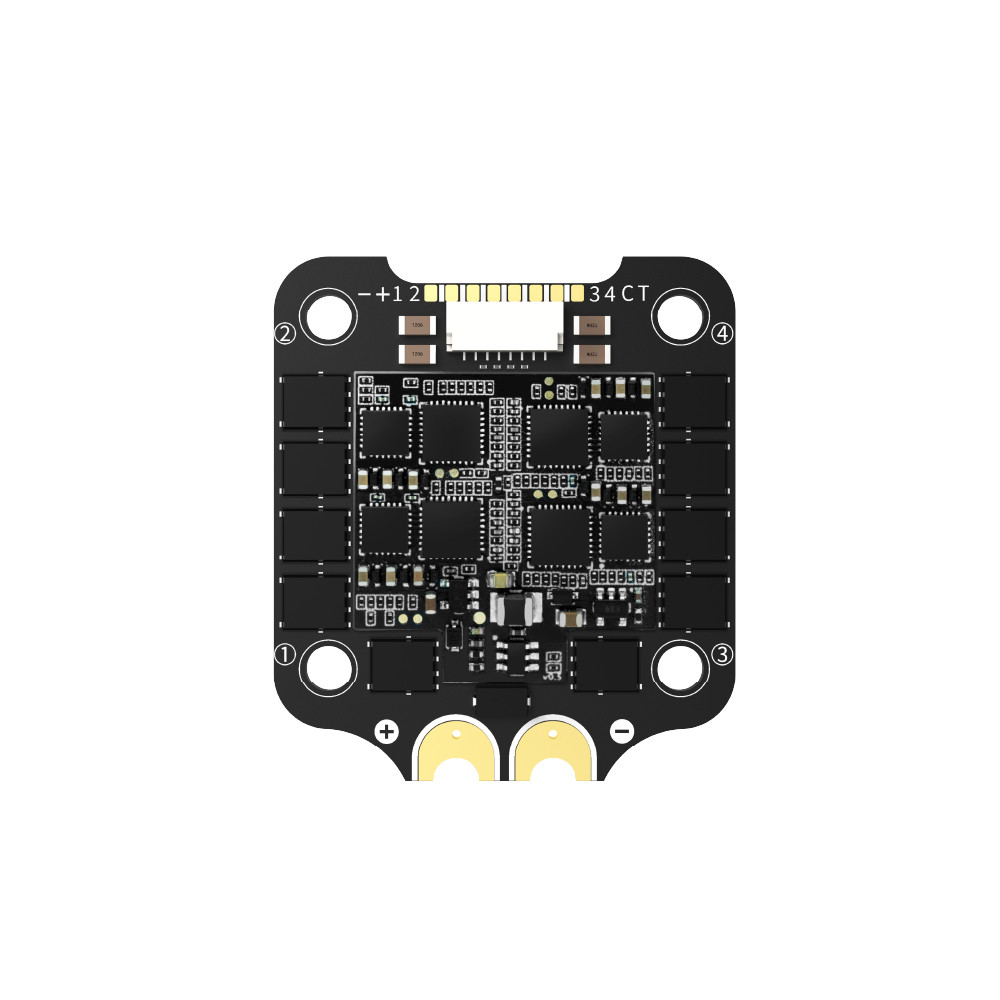

SpeedyBee BL32 50A 4-in-1 ESC

50A ESC MADE FOR CHAMPIONS

When we say 50A, we mean it.

Real 50A output, ready for your baddest, meanest 6S motors. Blast through any obstacle during freestyle with no worry, or keep that highest throttle position during races.

1000uF Low ESR capacitor + TVS protective diode = Extra protection

The ESC is built with TVS protective diode to absorb the voltage spike when you plug in the battery, or during crashes that block your props. We also provide a humongous 1000uF low ESR capacitor, ensuring clean data from the gyro to the FC. Tested by 2 top racing pilots with both over 1500 packs, or you can put it to the test yourself.

Wanna crank it up to 128KHz PWM? Why not?

With F4 MCU, you can set the PWM frequency up to 128KHz. Find the best PWM frequency* to get for your build without any limitation.

* The ideal PWM frequency for each build varies depending on the frame, motors, props, and other factors. Higher PWM frequency doesn't necessarily means smoother flight. If the default 48KHz is not working for your build, you can increase the value gradually until you find the sweet spot. Check your motor temperature to avoid overheating.

CNC heat sink shield = no overheating in any condition

Built with high-quality CNC heat sink to significantly reduce the heat from your MOSFETs ensuring stable current flow at a high throttle position. Great benefit in a stylish blue finish.
