Original price was: $168.80.$128.80Current price is: $128.80.
The SpeedyBee F745 35A AIO features a high-speed F745 Flight Controller and a robust 35A ESC. This 35A FPV Stack offers full wireless tuning and is ideal for premium Mini Drone Electronics.

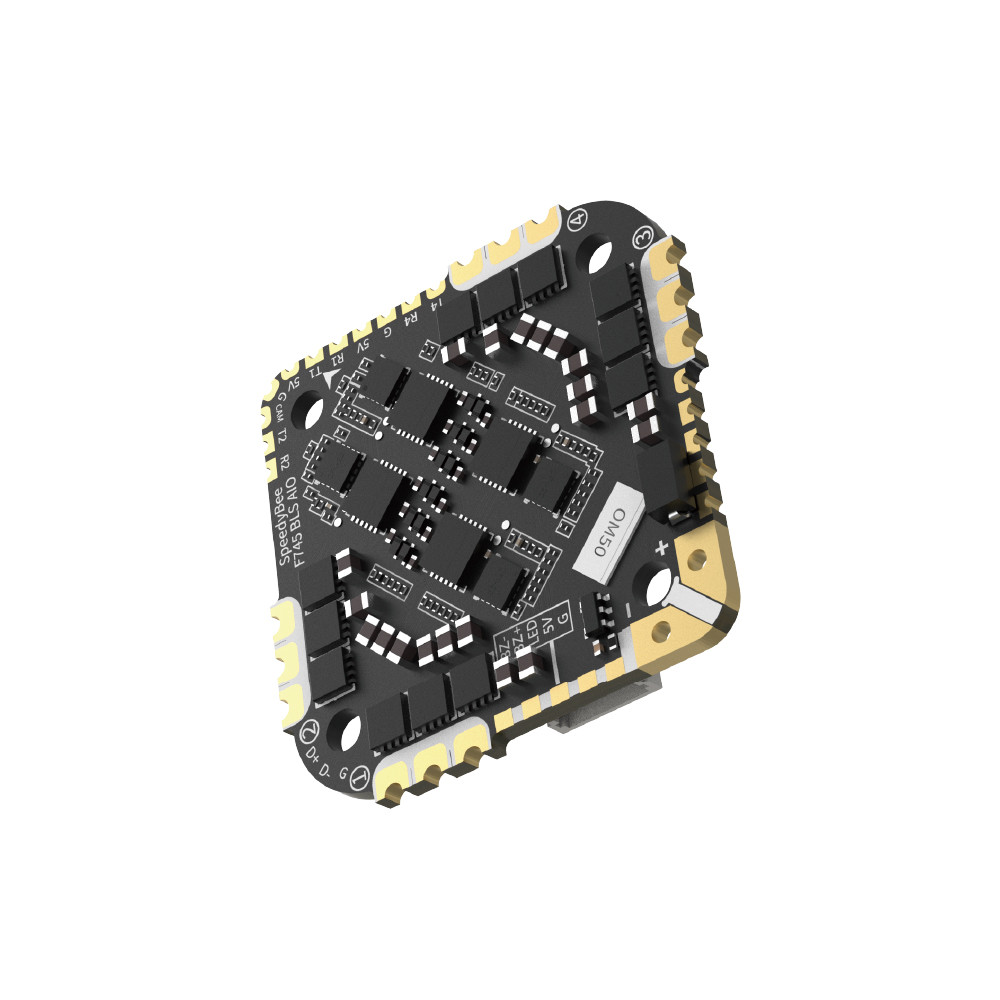

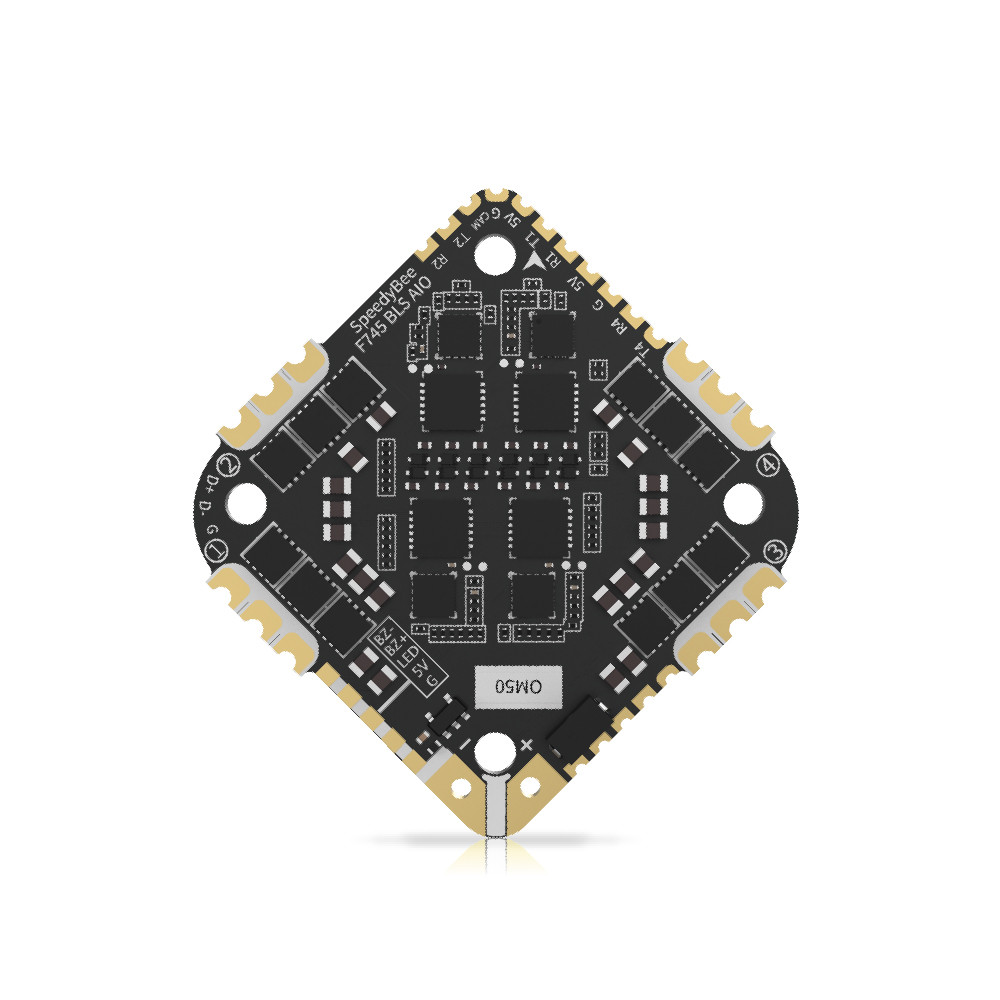

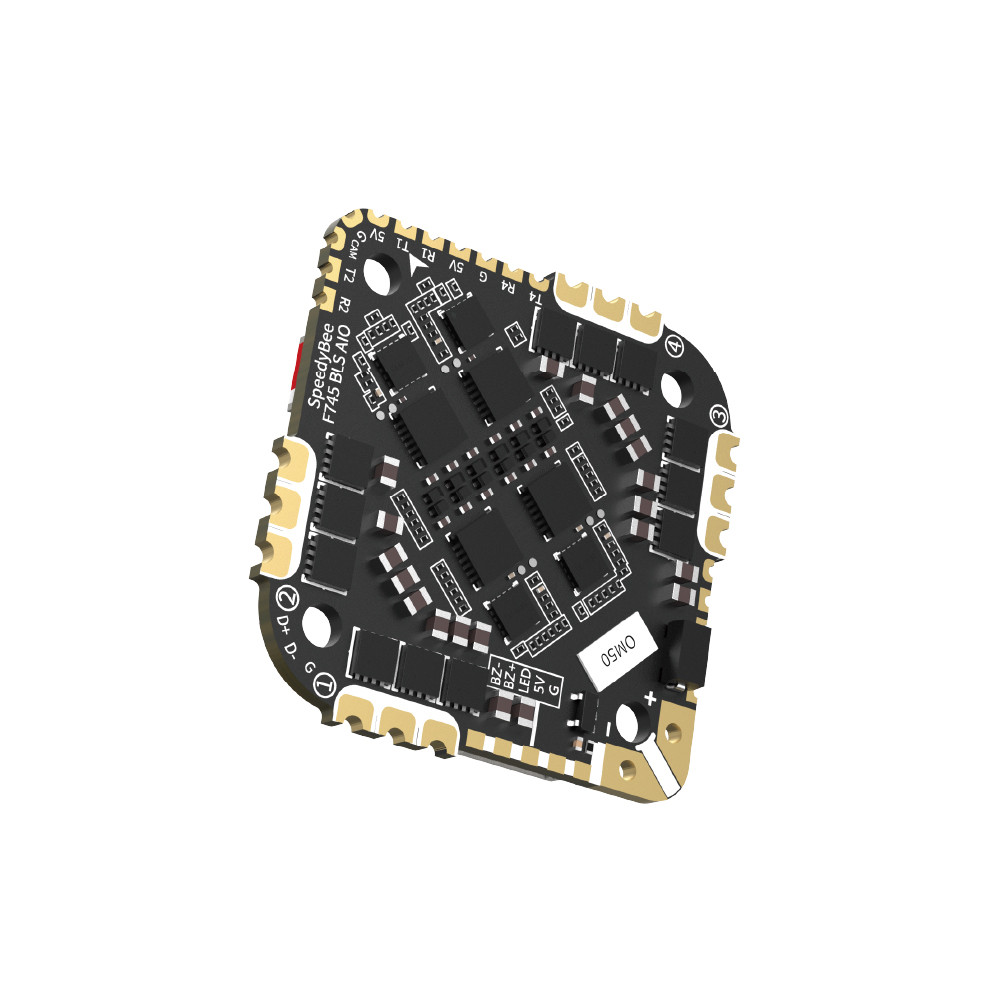

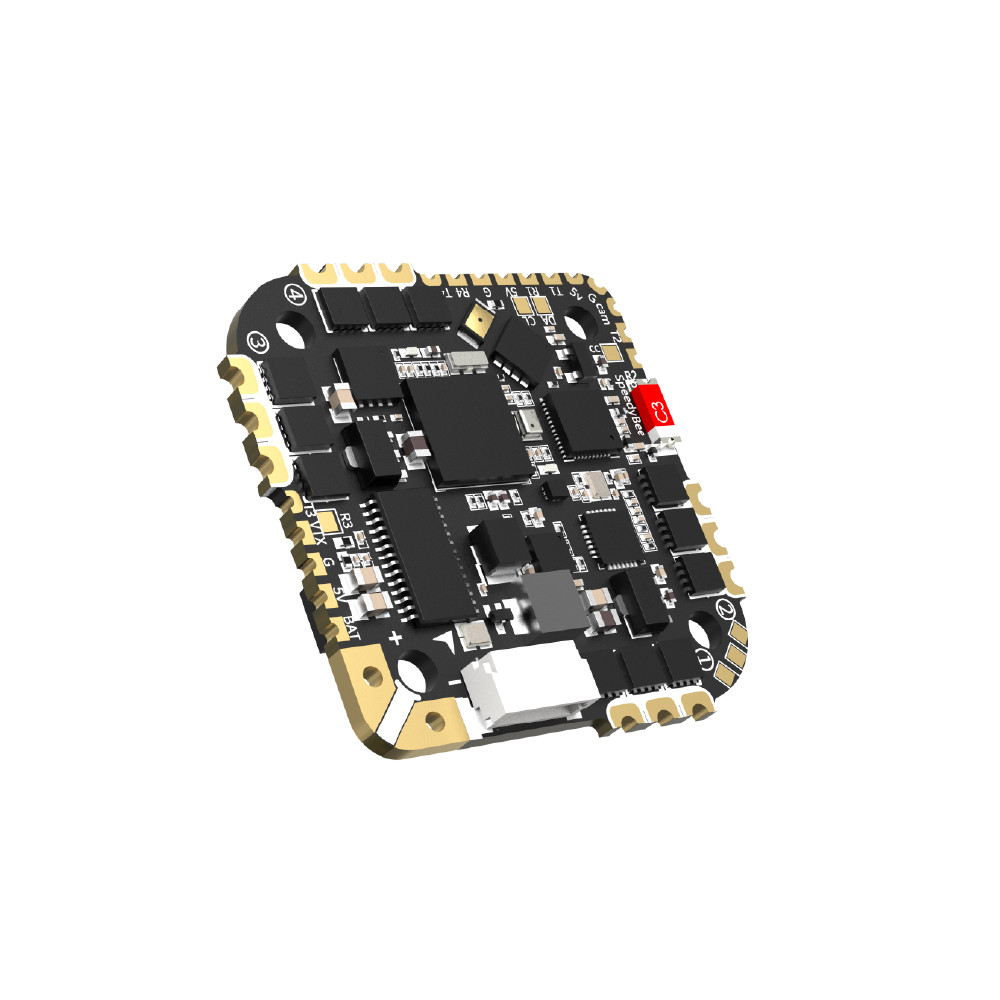

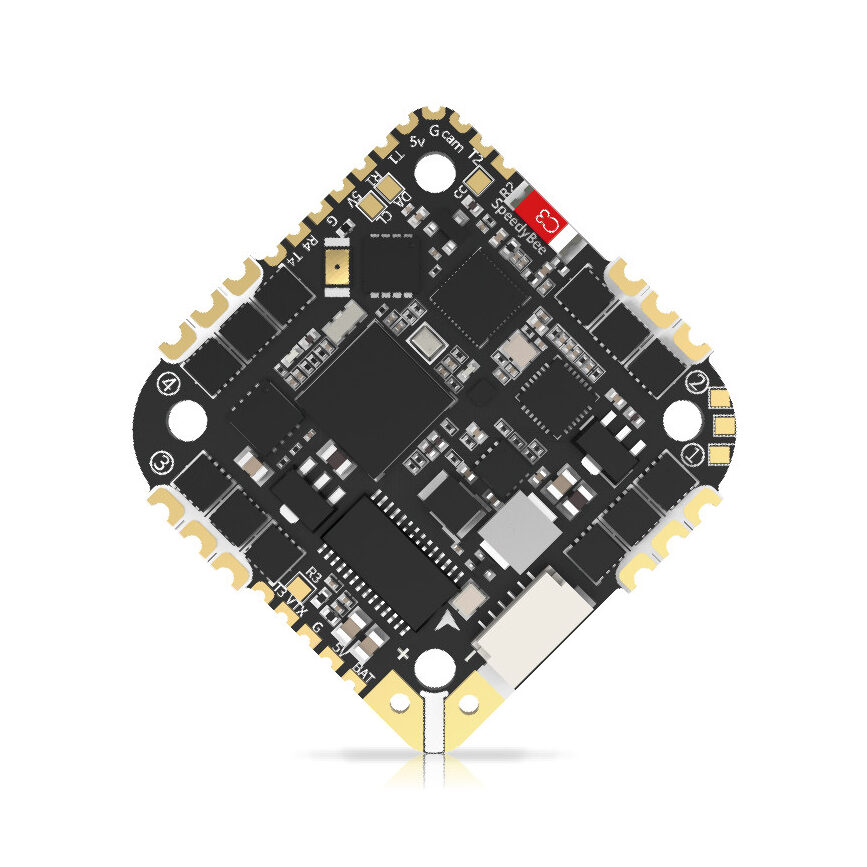

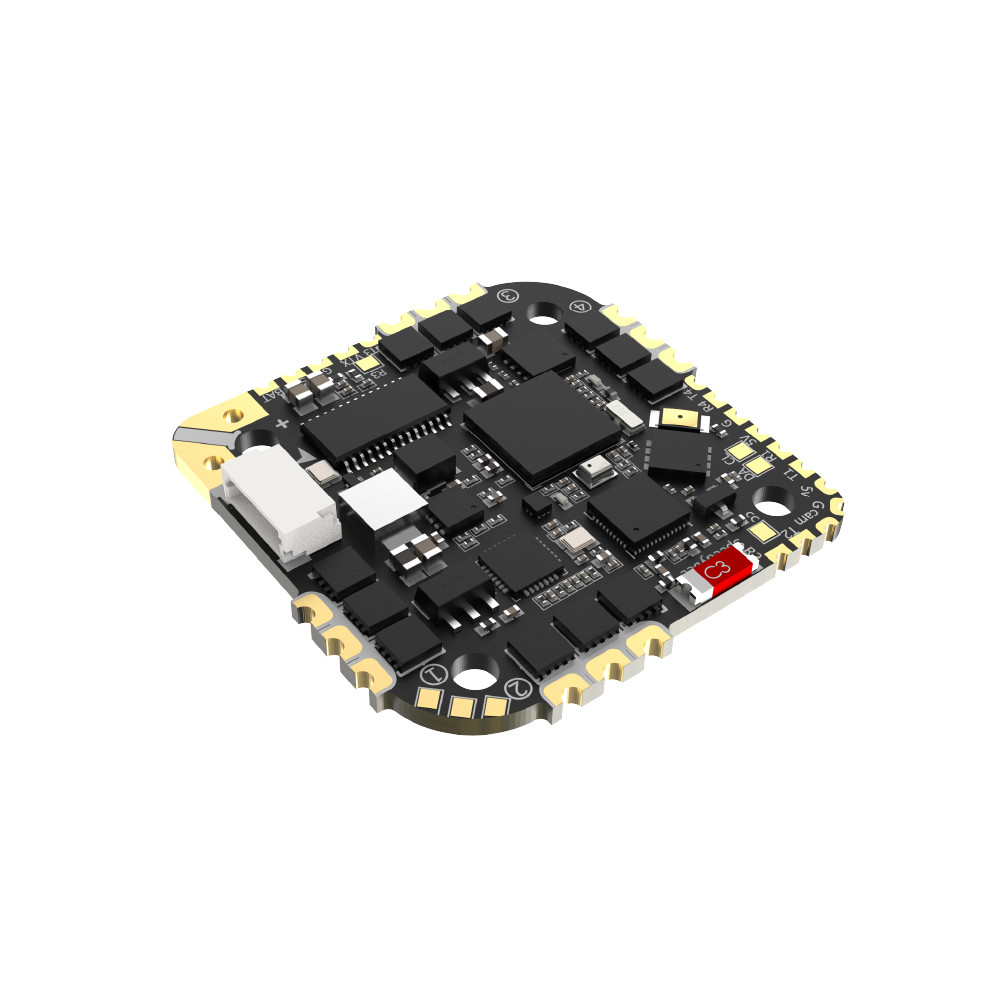

The SpeedyBee F745 35A AIO is a professional-grade all-in-one flight system built for toothpick and cinematic whoop drones. At its heart, the STM32F745 MCU acts as a flagship F745 Flight Controller, delivering massive computing power and low latency for stable flight. This 35A FPV Stack integrates a high-reliability 4-in-1 ESC that supports 3-6S LiPo input, providing the necessary overhead for aggressive maneuvers.
Designed for elite Mini Drone Electronics, the AIO includes the signature SpeedyBee Wireless AIO technology. Pilots can tune PIDs and change settings on the fly via the SpeedyBee App—no cables required. With its 25.5x25.5mm mounting pattern, built-in 8MB Blackbox, and DJI digital VTX support, the SpeedyBee F745 AIO provides the perfect balance of size and performance for high-end builds.
| Overview | |
| Product Name | SpeedyBee F745 35A BLS AIO |
| Power Input | 3S – 6S Lipo |
| Mounting | 25.5 x 25.5mm, 3mm hole diameter |
| Dimension | 36.5mm(L) x 36.5mm(W) x 7mm(H), recommended for quads at 3.5″ or above |
| Weight | 10.1g |
| FC | |
| MCU | STM32F745 |
| IMU(Gyro) | MPU6000 |
| USB Connection | Need to solder a USB TYPE-C module to D+,D-,GND pads. |
| Barometer | BMP280 |
| OSD | Supported |
| BLE Bluetooth | Supported. Used for parameter configuration,built-in a single 2.4 GHz Wi-Fi-and-Bluetooth combo chip |
| Flash FC Firmware Wirelessly | Supported |
| Download/Analyze Blackbox | Supported |
| DJI Air Unit 6-pin Connector | Built-in. |
| Flash(for BlackBox) | 8MB |
| Current Sensor | Supported. Scale=256 |
| BetaFlight Camera Control Pad | Yes(CC pad) |
| 5V Output | 4 groups of 5V output. The total current load is 2.5A. |
| 9V Output | None |
| ESC Signal Pads | M1 – M4 |
| UART | Full UART * 4(UART1, UART2, UART3,UART4) |
| ESC Telemetry UART | None |
| I2C | Supported. |
| LED Pad | Used for WS2812 LED |
| Buzzer | BZ+ and BZ- pad used for 5V Buzzer |
| BOOT Button | Used to enter DFU mode |
| RSSI Input | Not supported |
| SmartPort | Not Supported |
| Supported Flight Controller | BetaFlight(Default) |
| Firmware Target Name | SPEEDYBEE F745AIO |
| ESC | |
| Power Input | 3-6S LiPo |
| Continuous Current | 35A * 4 |
| Burst Current | 45A(5seconds) |
| ESC Protocol | DSHOT300/600 |
| Power Output | VBAT |
| Current Sensor | Supported(Sacle=256) |
| Firmware | BLHeli_S JH40 |
